DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F310R-05LCFAN AXIAL 30X10MM 5VDC WIRE Nidec Components Corporation |
16,656 |
|
Datasheet |
F310R | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | Tubeaxial | - | 17.0dB(A) | 350 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
|
F310R-05LLCFAN AXIAL 30X10MM 5VDC WIRE Nidec Components Corporation |
4,265 |
|
Datasheet |
F310R | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.056 in H2O (13.9 Pa) | Sleeve | Tubeaxial | - | 13.0dB(A) | 250 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
F410T-12MCFAN AXIAL 40X10MM 12VDC WIRE Nidec Components Corporation |
4,276 |
|
Datasheet |
F410T | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | Tubeaxial | - | 18.0dB(A) | 720 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|

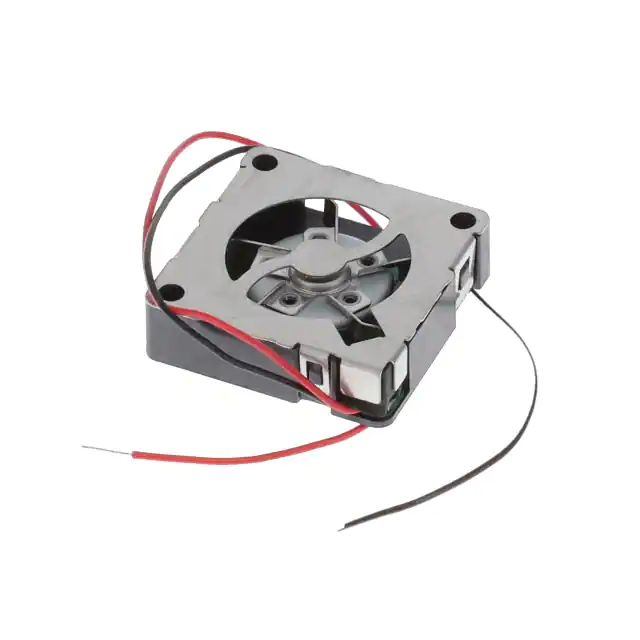

F16FB-05LLC /EFAN BLOWER 16X4.5MM 5VDC WIRE Nidec Components Corporation |
432 |
|
Datasheet |
F16FB | Bulk | Active | 5VDC | Square - 16mm L x 16mm H | 4.50mm | 0.424 CFM (0.012m³/min) | 0.022 in H2O (5.5 Pa) | Sleeve | Blower | - | 3.0dB(A) | 200 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|
|
F410T-05LCFAN AXIAL 40X10MM 5VDC WIRE Nidec Components Corporation |
1,134 |
|
Datasheet |
F410T | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | Tubeaxial | - | 12.0dB(A) | 400 mW | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
F310R-12LCFAN AXIAL 30X10MM 12VDC WIRE Nidec Components Corporation |
1,791 |
|
Datasheet |
F310R | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | Tubeaxial | - | 17.0dB(A) | 480 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|

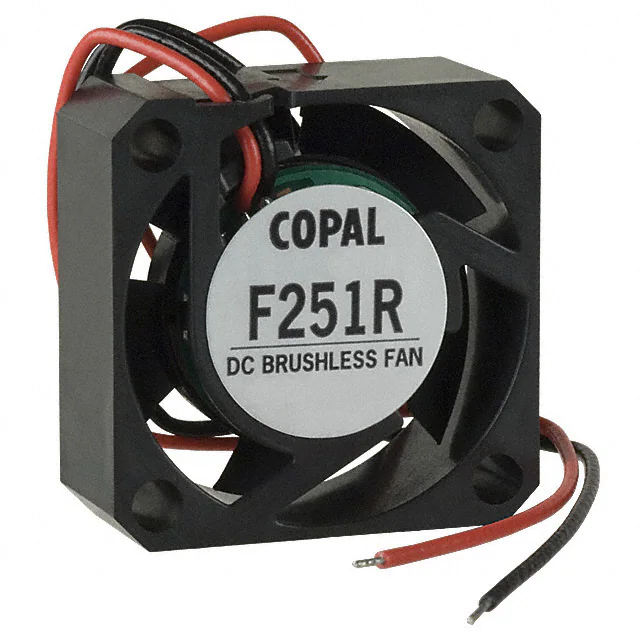

F251R-12LLCFAN AXIAL 25X10MM 12VDC WIRE Nidec Components Corporation |
1,871 |
|
Datasheet |
F251R | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 11.0dB(A) | 360 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-05LLCFAN AXIAL 25X10MM 5VDC WIRE Nidec Components Corporation |
1,100 |
|
Datasheet |
F251R | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 11.0dB(A) | 250 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|

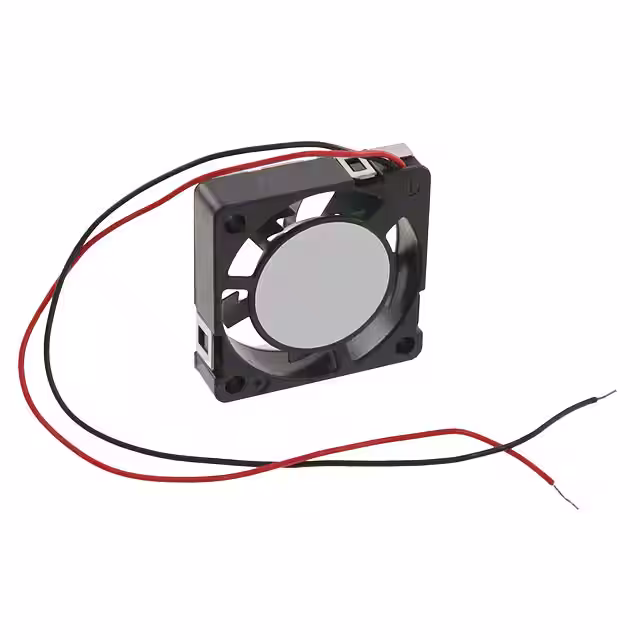

F16EA-03LLC /EFAN AXIAL 16X4MM 3.3VDC WIRE Nidec Components Corporation |
795 |
|
Datasheet |
F16EA | Bulk | Active | 3.3VDC | Square - 16mm L x 16mm H | 4.00mm | 0.424 CFM (0.012m³/min) | 0.019 in H2O (4.7 Pa) | Sleeve | Tubeaxial | - | 3.0dB(A) | 70 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|

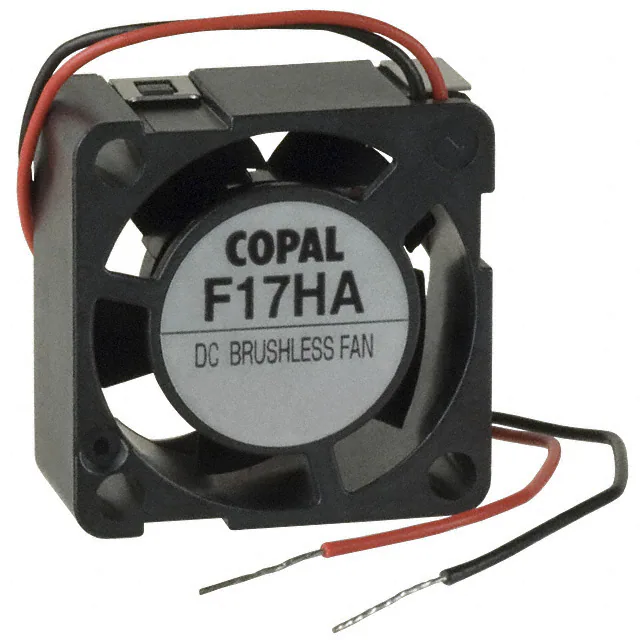

F17HA-05MCFAN AXIAL 17X8MM 5VDC WIRE Nidec Components Corporation |
605 |
|
Datasheet |
F17HA | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.530 CFM (0.015m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | Tubeaxial | - | 7.0dB(A) | 150 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.005 lb (2.27 g) |
