Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A165E-M-02SWITCH ESTOP TWIST RESET 5A 125V |
2,330 |
|
Datasheet |
A165E | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 5A (AC), 3A (DC) | 125 V | 30 V | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | -10°C ~ 55°C | - |
|
ES-2021-T111SWITCH ESTOP TWIST RESET 10A 32V |
3,236 |
|
Datasheet |
ES | Box | Active | Panel Mount, Front | Twist | 3PST-2NO/1NC | On-Off, Off-On | - | 10A (DC) | - | 32 V | Circular - 30.50mm Dia | Connector | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|

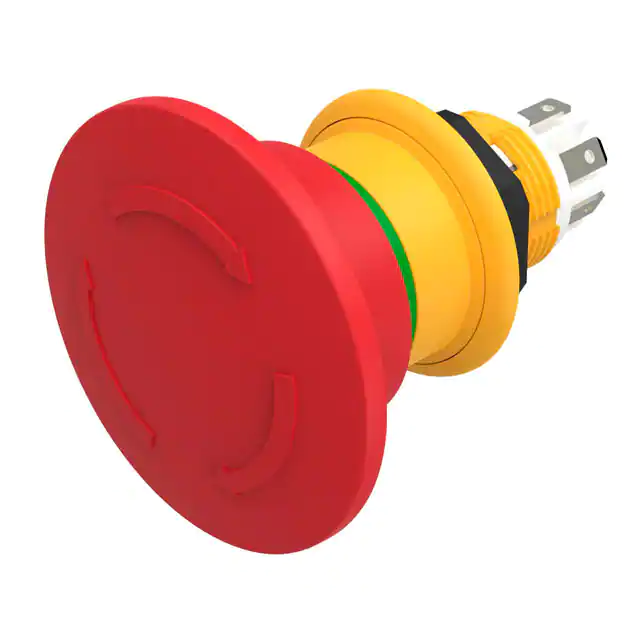

61-6461.4067SWITCH E-STOP TWIST RESET |
4,907 |
|
Datasheet |
61 | Bag | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|
45-1C36.1920.000.402SWITCH ESTOP PULL RESET 10A 500V |
3,835 |
|
Datasheet |
45 | Bulk | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | 500 V | 500 V | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|

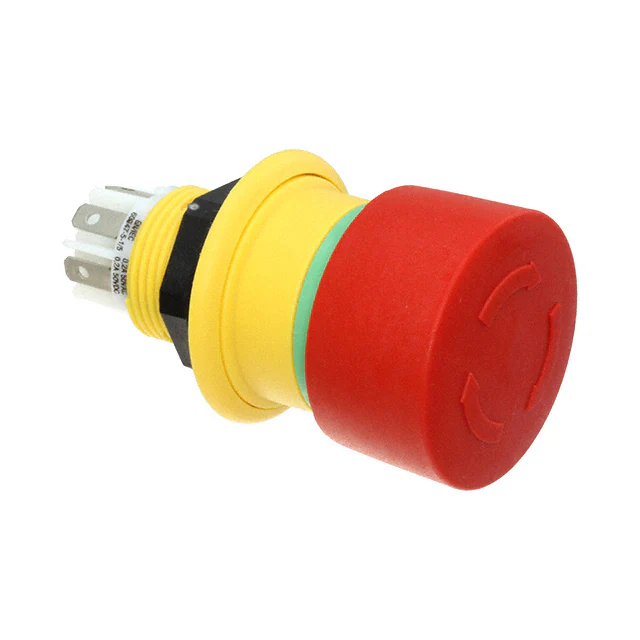

61-6441.4067SWITCH E-STOP TWIST RESET |
1,414 |
|
Datasheet |
61 | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|

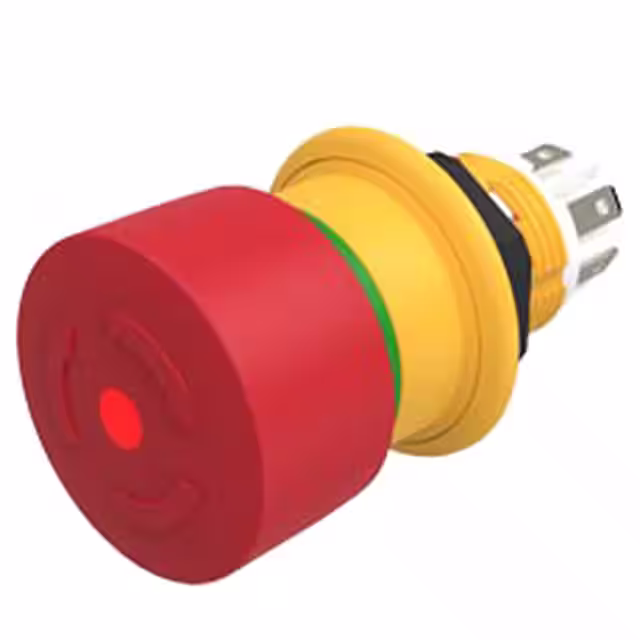

61-6451.4257SWITCH E-STOP TWIST RESET |
1,581 |
|
Datasheet |
61 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|
A22E-MP-02SWITCH ESTOP PULL RESET 10A 110V |
3,548 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
87943-08SWITCH E-STOP PULL RESET 20A 14V |
110 |
|
Datasheet |
87940 | Bulk | Active | Panel Mount, Rear | Pull | DPST-NO/NC | - | - | 20A (DC) | - | 14 V | - | Screw Terminal | Environment Sealed | -40°C ~ 100°C | - |
|
FF0126BBCEEA01SW E-STOP TWIST RESET 500MA 24V |
2,972 |
|
Datasheet |
FF01 | Box | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
PBES16L3NRSWITCH ESTOP TWIST RESET 3A 125V |
2,949 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L2HRSWITCH ESTOP TWIST RESET 3A 125V |
3,932 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3DRSWITCH ESTOP TWIST RESET 3A 125V |
3,674 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 12 ~ 24 VAC/DC |
|
|
PBES16L2CRSWITCH ESTOP TWIST RESET 3A 125V |
2,739 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VDC |
|
87944-08SWITCH E-STOP PULL RESET 20A 14V |
2,497 |
|
Datasheet |
87940 | Bulk | Not For New Designs | Panel Mount, Rear | Pull | DPST-NO | - | - | 20A (DC) | - | 14 V | - | Screw Terminal | Environment Sealed | -40°C ~ 100°C | - |
|
K1155497SWITCH ESTOP TWIST RESET 10A 32V |
2,693 |
|
Datasheet |
ES | Bulk | Active | Panel Mount, Front | Twist | 3PDT | On-On | - | 10A (DC) | - | 32 V | Circular - 30.50mm Dia | Connector | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
|
K1157303SWITCH ESTOP TWIST RESET 10A 32V |
4,852 |
|
Datasheet |
ES | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 10A (DC) | - | 32 V | Circular - 30.50mm Dia | Wire Leads with Connector | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
|
K1163730SWITCH ESTOP TWIST RESET 10A 32V |
4,557 |
|
Datasheet |
ES | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | 10A (DC) | - | 32 V | Circular - 30.50mm Dia | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
M22E-PSB01-RSWITCH E-STOP PULL RESET 6A 230V |
750 |
|
Datasheet |
M22E | Bulk | Active | Panel Mount, Front | Pull | SPST-NC | On-Mom | - | 6A (AC), 3A (DC) | 230 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
M22E-TSF10-RSWITCH ESTOP TWIST RESET 6A 230V |
750 |
|
Datasheet |
M22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NO | Off-Mom | - | 6A (AC), 3A (DC) | 230 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
KPB30ER-11-RSWITCH ESTOP TWIST RESET 5A 250V |
1,990 |
|
Datasheet |
K | Bulk | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | Off-On | - | 5A (AC), 3A (DC) | 250 V | 125 V | Circular - 25.00mm Dia | Screw Terminal | IP40 | -25°C ~ 50°C | - |
