Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Reset Operation | Circuit | Switch Function | Features | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22EL-M-12A-11SW E-STOP TWIST RESET 10A 110V |
196 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 12 VAC/DC |
|

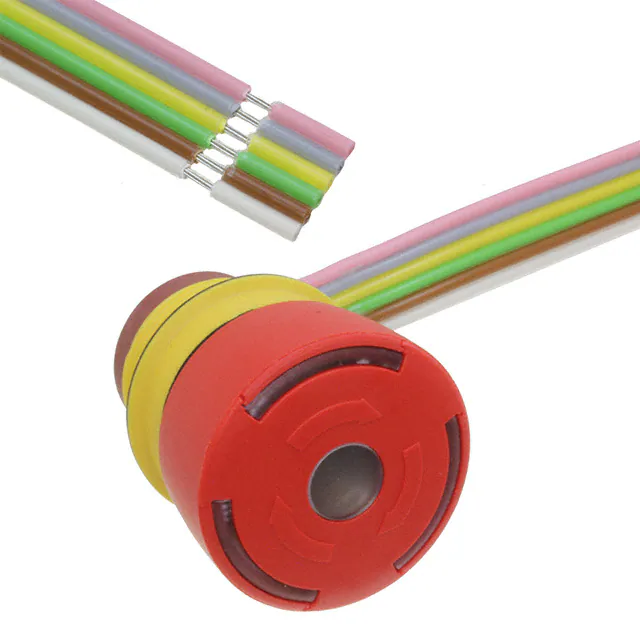

84-5031.2B40SWITCH ESTOP TWIST RESET 5A 250V |
4,534 |
|
Datasheet |
84 | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | Illuminated (Red) | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Cable Leads | IP65 - Dust Tight, Water Resistant | -25°C ~ 65°C | - |
|
A22E-M-03SW E-STOP TWIST RESET 10A 110V |
3,879 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
SSA-EBM-02ESWITCH E-STOP TWIST RESET 2A 24V |
1,518 |
|
Datasheet |
SSA-EB | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | Control Box Enclosure | 2A (DC) | - | 24 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SSA-EBM-12LSWITCH E-STOP TWIST RESET 2A 24V |
1,190 |
|
Datasheet |
SSA-EB | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 2A (DC) | - | 24 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
|
SSA-EBM-12ESWITCH E-STOP TWIST RESET 2A 24V |
3,234 |
|
Datasheet |
SSA-EB | Bulk | Active | Chassis Mount | Twist | 3PST-2NC/1NO | On-Off, Off-On | Control Box Enclosure | 2A (DC) | - | 24 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
XN4E-BL404MRSWITCH ESTOP TWIST RESET 5A 125V |
314 |
|
Datasheet |
XN | Bulk | Active | Panel Mount, Front | Twist | 4PST-NC | On-Off | Padlock Style | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A22NE-M-P202-N-BSW E-STOP TWIST RESET 10A 120V |
157 |
|
Datasheet |
A22NE-P | Tray | Active | Chassis Mount | Twist | DPST-NC | On-Off | - | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Spring Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 70°C | - |
|
A22E-M-11BSW E-STOP TWIST RESET 10A 110V |
4,543 |
|
Datasheet |
A22E | Bulk | Active | Chassis Mount | Twist | DPST-NO/NC | On-Off, Off-On | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
A22E-M-02BSW E-STOP TWIST RESET 10A 110V |
2,140 |
|
Datasheet |
A22E | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
87941-00SWITCH E-STOP PULL RESET 20A 14V |
4,598 |
|
Datasheet |
87940 | Bulk | Active | Panel Mount, Rear | Pull | DPST-NC | - | - | 20A (DC) | - | 14 V | - | Screw Terminal | Environment Sealed | -40°C ~ 100°C | - |
|
SSA-EB1P-02ED1Q4SW ESTOP PULL/TWIST RESET 2A 24V |
4,479 |
|
Datasheet |
SSA-EB | Bulk | Active | Chassis Mount | Pull or Twist | DPST-NC | On-Off | Control Box Enclosure | 2A (DC) | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
XN4E-TL403Q4MRSWITCH ESTOP TWIST RESET 5A 125V |
139 |
|
Datasheet |
XN | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | Illuminated (Red), Padlock Style | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 30.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
.jpg)
|
ES2S41653SWITCH E-STOP PULL RESET 1A 24V |
1,274 |
|
Datasheet |
ES | Bulk | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | Status Indicator | 1A (DC) | - | 24 V | Circular - 22.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -40°C ~ 85°C | - |
|
6051329SW E-STOP TWIST RESET 100MA 30V |
3,116 |
|
Datasheet |
ES11 | Bulk | Active | Free Hanging | Twist | DPST-NC + SPST-NO | On-Off, Off-On | Control Box Enclosure, Status Indicator, With Pushbutton Switch | 100mA (DC) | - | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
1.15.154.006/0301SW E-STOP PULL RESET 100MA 25V |
156 |
|
Datasheet |
LUMOTAST 25 | Bulk | Active | Panel Mount, Front | Pull | DPST-NC | On-Off | - | 100mA (AC/DC) | 25 V | 25 V | Circular - 16.10mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
84-5230.0020SWITCH ESTOP TWIST RESET 5A 250V |
873 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off | - | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 65°C | - |
|

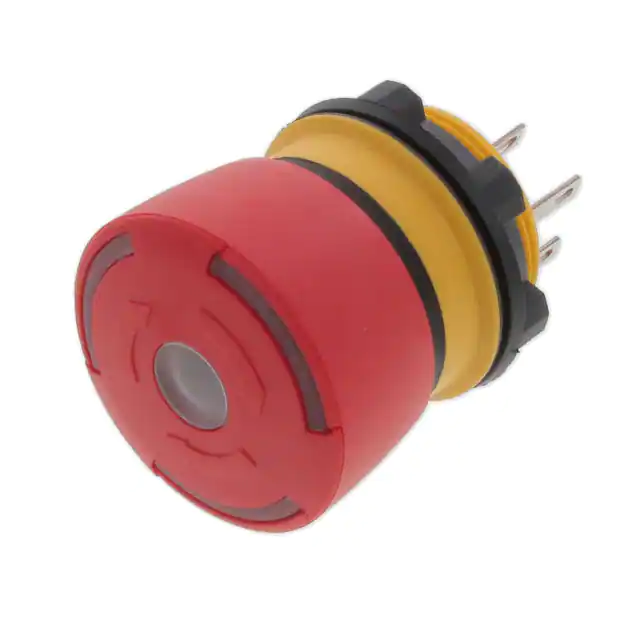

84-5021.2B20SWITCH ESTOP TWIST RESET 5A 250V |
2,040 |
|
Datasheet |
84 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 65°C | - |
|

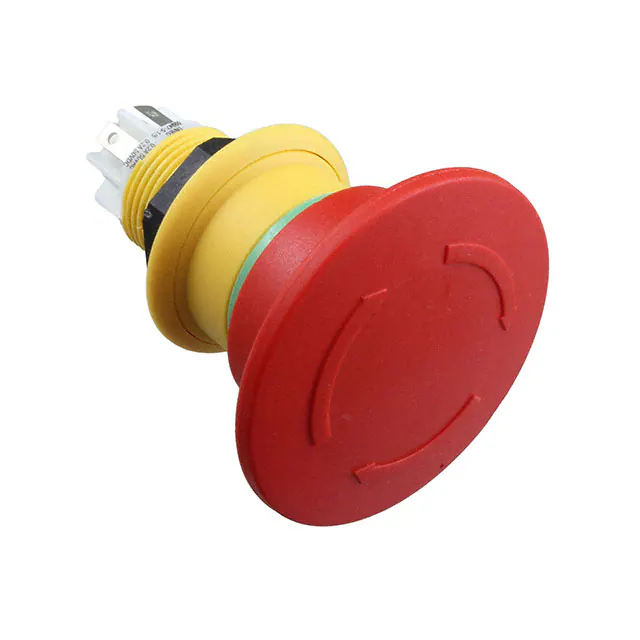

61-6461.4047SWITCH E-STOP TWIST RESET |
2,825 |
|
Datasheet |
61 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|
A165E-M-03USWITCH ESTOP TWIST RESET 1A 125V |
306 |
|
Datasheet |
A165E | Bulk | Active | Panel Mount, Front | Twist | 3PST-NC | On-Off | - | 1A (AC/DC) | 125 V | 30 V | Circular - 16.00mm Dia | Solder Lug | IP65 - Dust Tight, Oil and Water Resistant | -10°C ~ 55°C | - |
