CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

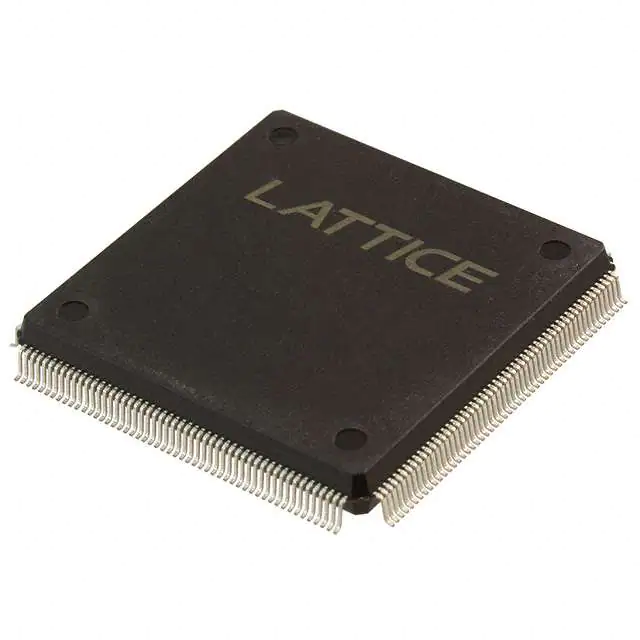

M4A3-256/160-10YIIC CPLD 256MC 10NS 208QFP Lattice Semiconductor Corporation |
2,436 |
|
Datasheet |
ispMACH® 4A | 208-BFQFP | Tube | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 256 | - | 160 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
M4A3-256/192-10FACIC CPLD 256MC 10NS 256FPBGA Lattice Semiconductor Corporation |
2,214 |
|
Datasheet |
ispMACH® 4A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 256 | - | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
M4A3-256/192-10FAIIC CPLD 256MC 10NS 256FPBGA Lattice Semiconductor Corporation |
2,762 |
|
Datasheet |
ispMACH® 4A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 256 | - | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
M4A3-256/192-12FAIIC CPLD 256MC 12NS 256FPBGA Lattice Semiconductor Corporation |
2,169 |
|
Datasheet |
ispMACH® 4A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 12 ns | 3V ~ 3.6V | - | 256 | - | 192 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
|
M4A3-256/192-7FACIC CPLD 256MC 7.5NS 256FPBGA Lattice Semiconductor Corporation |
1,560 |
|
Datasheet |
ispMACH® 4A | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | - | 256 | - | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FPBGA (17x17) |
.jpg)
|
M4A3-32/32-10JIIC CPLD 32MC 10NS 44PLCC Lattice Semiconductor Corporation |
4,294 |
|
Datasheet |
ispMACH® 4A | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
M4A3-32/32-10VCIC CPLD 32MC 10NS 44TQFP Lattice Semiconductor Corporation |
3,791 |
|
Datasheet |
ispMACH® 4A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
M4A3-32/32-10VC48IC CPLD 32MC 10NS 48TQFP Lattice Semiconductor Corporation |
1,073 |
|
Datasheet |
ispMACH® 4A | 48-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
M4A3-32/32-10VIIC CPLD 32MC 10NS 44TQFP Lattice Semiconductor Corporation |
4,994 |
|
Datasheet |
ispMACH® 4A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
M4A3-32/32-10VI48IC CPLD 32MC 10NS 48TQFP Lattice Semiconductor Corporation |
4,750 |
|
Datasheet |
ispMACH® 4A | 48-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-TQFP (7x7) |
