CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC4032V-75TN48CIC CPLD 32MC 7.5NS 48TQFP Lattice Semiconductor Corporation |
22,522 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 2 | 32 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
LC4064ZC-75TN48CIC CPLD 64MC 7.5NS 48TQFP Lattice Semiconductor Corporation |
1,255 |
|
Datasheet |
ispMACH® 4000Z | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 4 | 64 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
LC4064V-75TN44CIC CPLD 64MC 7.5NS 44TQFP Lattice Semiconductor Corporation |
556 |
|
Datasheet |
ispMACH® 4000V | 44-TQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 30 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
LC4064V-10TN48IIC CPLD 64MC 10NS 48TQFP Lattice Semiconductor Corporation |
1,512 |
|
Datasheet |
ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 32 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
LC4064V-75TN100CIC CPLD 64MC 7.5NS 100TQFP Lattice Semiconductor Corporation |
1,984 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-10TN100IIC CPLD 64MC 10NS 100TQFP Lattice Semiconductor Corporation |
711 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LAMXO256C-3TN100EIC CPLD 128MC 4.9NS 100TQFP Lattice Semiconductor Corporation |
660 |
|
Datasheet |
LA-MachXO | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 4.9 ns | 1.71V ~ 3.465V | - | 128 | - | 78 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4128ZC-75TN100CIC CPLD 128MC 7.5NS 100TQFP Lattice Semiconductor Corporation |
599 |
|
Datasheet |
ispMACH® 4000Z | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 64 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
LC4064V-75TN100EIC CPLD 64MC 7.5NS 100TQFP Lattice Semiconductor Corporation |
246 |
|
Datasheet |
ispMACH® 4000V | 100-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 4 | 64 | - | 64 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|

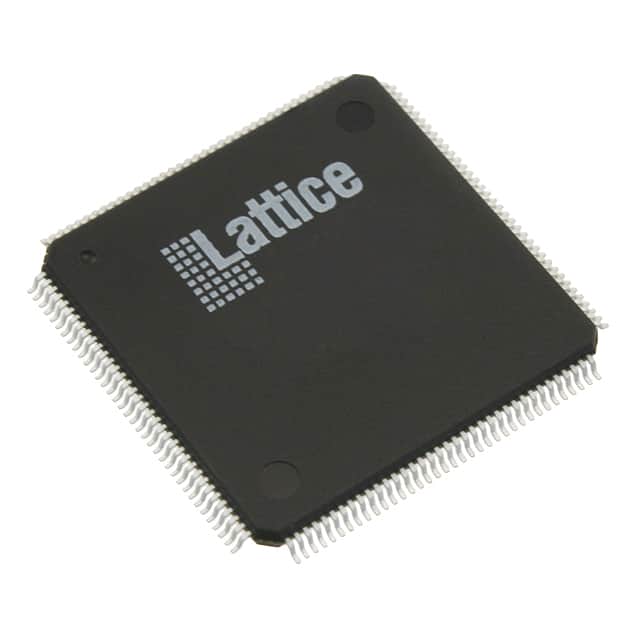

LC4128ZE-7TN144IIC CPLD 128MC 7.5NS 144TQFP Lattice Semiconductor Corporation |
135 |
|
Datasheet |
ispMACH® 4000ZE | 144-LQFP | Tray | Active | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 8 | 128 | - | 96 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
