Electric Actuators/Cylinders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3608LINEAR ACTUATOR MOTOR 12V |
2,266 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 18.000" (457.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3610LINEAR ACTUATOR MOTOR 12V |
1,704 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 24.000" (609.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3625LINEAR ACTUATOR MOTOR 12V |
4,722 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 4.000" (101.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3627LINEAR ACTUATOR MOTOR 12V |
1,498 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 6.000" (152.40mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3629LINEAR ACTUATOR MOTOR 12V |
4,326 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 8.000" (203.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3631LINEAR ACTUATOR MOTOR 12V |
4,137 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3624LINEAR ACTUATOR MOTOR 12V |
3,780 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 4.000" (101.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3626LINEAR ACTUATOR MOTOR 12V |
2,532 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 6.000" (152.40mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
|
3628LINEAR ACTUATOR MOTOR 12V |
4,684 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 8.000" (203.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3633LINEAR ACTUATOR MOTOR 12V |
2,708 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 18.000" (457.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3635LINEAR ACTUATOR MOTOR 12V |
4,130 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 24.000" (609.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
ASL170C801WD1-A0LFASL, METAL SEALD, HIGH TEMPERATU |
4,969 |
|
Datasheet |
ASL | Bulk | Active | Linear Actuator | Piezoelectric | 0.0007" (19.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 150°C | - | - |
|
3632LINEAR ACTUATOR MOTOR 12V |
3,524 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 18.000" (457.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3634LINEAR ACTUATOR MOTOR 12V |
4,231 |
|
Datasheet |
Glideforce | - | Active | Linear Actuator | Brushed | 24.000" (609.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
|
RA60-10-001AROTARY VCA |
1,046 |
|
Datasheet |
- | Bulk | Active | Linear Actuator | Voice Coil | - | 120.00ozin (0.85Nm) | 62.90ozin (0.45Nm) | - | - | 10.8V | - | - | - | - | - | - | Solder | - | - | - |
|
|
RA68-12-001AROTARY VCA |
2,119 |
|
Datasheet |
- | Bulk | Active | Linear Actuator | Voice Coil | - | 170.00ozin (1.20Nm) | 103.00ozin (0.73Nm) | - | - | 15.2V | - | - | - | - | - | - | Pin Header | - | - | - |
|
|
ASL680C801WD1-A0LFASL, METAL SEALD, HIGH TEMPERATU |
1,196 |
|
Datasheet |
ASL | Bulk | Active | Linear Actuator | Piezoelectric | 0.0030" (77.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 150°C | - | - |
|

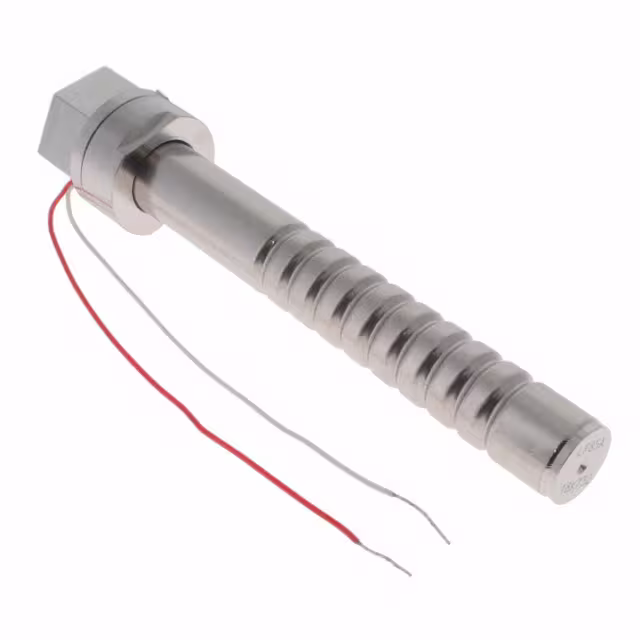

AHB101C801ND0LFAHB, METAL SEALD, 103UM, 800N, F |
2,072 |
|
Datasheet |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0041" (103.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
|
XRT-U-30-109Rotation stage - evaluation kit |
1,143 |
|
Datasheet |
XRT-U | Case | Active | Rotary Actuator | Piezoelectric | ±360° | - | - | - | 50% | 12 ~ 48V | - | ±0.017% | - | - | - | Incremental Encoder | Connector | -30°C ~ 70°C | - | - |
|
|
AHB700C302WD1-A0LFAHB, METAL SEALD, 68UM, 3000N, W |
1,773 |
|
Datasheet |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0027" (68.00µm) | 674.43lbf (3000.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
