DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

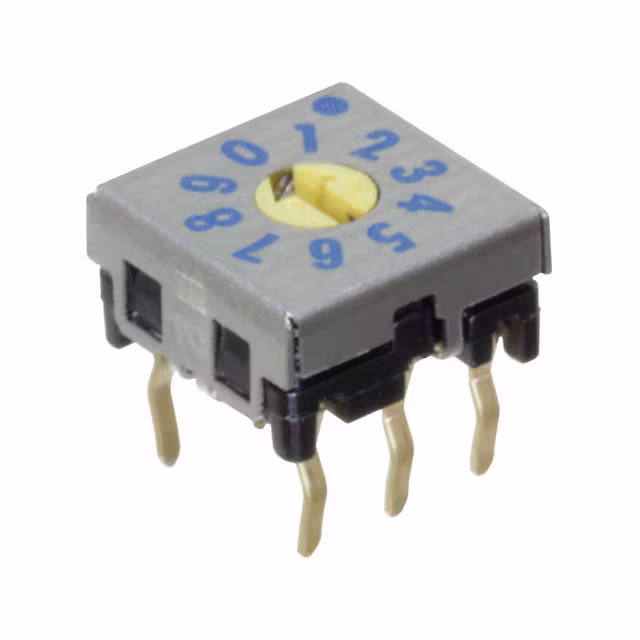

DRS7010CSWITCH ROTARY DIP BCD 0.03A 15V Nidec Components Corporation |
2,192 |
|
Datasheet |
DR | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
S-1211ASWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
3,756 |
|
Datasheet |
S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-1231ASW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
3,439 |
|
Datasheet |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-2211ASWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
4,927 |
|
Datasheet |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-2231ASW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
1,318 |
|
Datasheet |
S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SD-1131WSW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
4,057 |
|
- |
SD-1000 | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SS-10-16NP-LEWSWITCH ROTARY DIP SP6T 0.1A 5V Nidec Components Corporation |
3,992 |
|
- |
SS-10 | Tray | Active | SP6T | 6 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.276" (7.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
SD-1111WSWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
2,790 |
|
- |
SD-1000 | Tray | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SS-10-15SP-LEWSWITCH ROTARY DIP SP5T 0.1A 5V Nidec Components Corporation |
4,975 |
|
- |
SS-10 | Tray | Active | SP5T | 5 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.276" (7.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
SD-2111WSWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
3,504 |
|
- |
SD-2000 | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
