DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA-7070ASW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
3,040 |
|
Datasheet |
SA-7000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SMR7116C-1ESW ROTARY DIP HEX COMP 0.03A 15V Nidec Components Corporation |
1,551 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

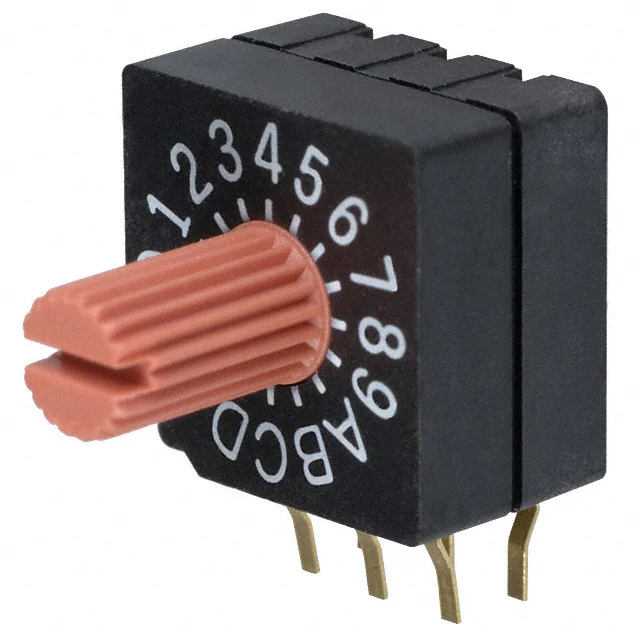

SD-1131SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
4,164 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

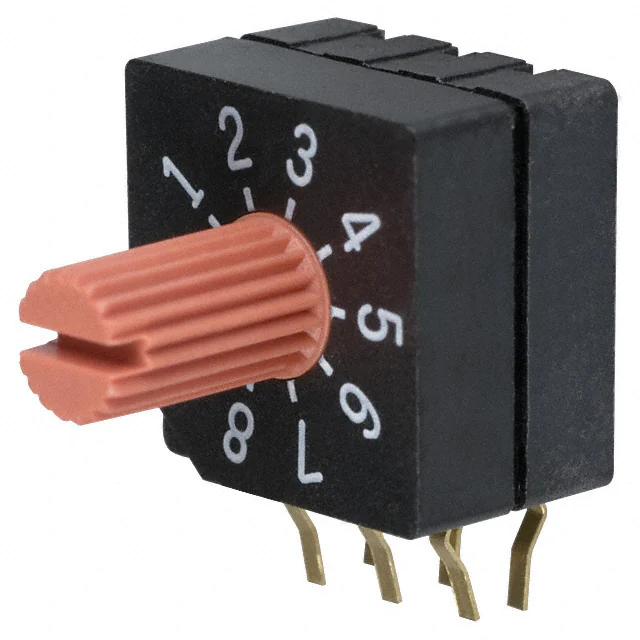

SD-2131SW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
2,089 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SS-10-16SP-L-AESWITCH ROTARY DIP SP6T 0.1A 5V Nidec Components Corporation |
4,953 |
|
Datasheet |
SS-10 | Bulk | Active | SP6T | 6 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
SMRR7116C-1ESW ROTARY DIP HEX COMP 0.03A 15V Nidec Components Corporation |
2,547 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
S-1210ASWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
2,662 |
|
Datasheet |
S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-1230ASW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
1,282 |
|
Datasheet |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-2210ASWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
1,422 |
|
Datasheet |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-2230ASW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
2,265 |
|
Datasheet |
S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
