Thyristors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - Breakover | Voltage - Off State | Voltage - On State | Current - Peak Pulse (8/20µs) | Current - Peak Pulse (10/1000µs) | Current - Hold (Ih) | Number of Elements | Capacitance | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP2600SAMCT3GTHYRISTOR 220V 150A DO-214AA |
4,619 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 300V | 220V | 4 V | 150 A | 50 A | 150 mA | 1 | 23pF | - | - | Surface Mount | SMB |
|
|
NP2300SBMCT3GTHYRISTOR 190V 250A DO-214AA |
2,130 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 260V | 190V | 4 V | 250 A | 80 A | 150 mA | 1 | 29pF | - | - | Surface Mount | SMB |
|
|
NP1800SBMCT3GTHYRISTOR 170V 250A DO-214AA |
2,793 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 220V | 170V | 4 V | 250 A | 80 A | 150 mA | 1 | 29pF | - | - | Surface Mount | SMB |
|
|
NP3500SCT3GTHYRISTOR 320V 100A DO-214AA |
5,574 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 400V | 320V | 4 V | - | 100 A | 150 mA | 1 | 71pF | - | - | Surface Mount | SMB |
|
|
NP1300SCT3GTHYRISTOR 120V 100A DO-214AA |
35,000 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Obsolete | 160V | 120V | 4 V | - | 100 A | 150 mA | 1 | 120pF | - | - | Surface Mount | SMB |
|
|
NP2600SCT3GTHYRISTOR 220V 100A DO-214AA |
9,492 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 300V | 220V | 4 V | - | 100 A | 150 mA | 1 | 81pF | - | - | Surface Mount | SMB |
|
|
NP1800SCT3GTHYRISTOR 170V 100A DO-214AA |
4,741 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 220V | 170V | 4 V | - | 100 A | 150 mA | 1 | 99pF | - | - | Surface Mount | SMB |
|
|
MMT10B230T3THYRISTOR 170V 100A DO-214AA |
5,000 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Obsolete | 265V | 170V | - | - | 100 A | - | - | 200pF | - | - | Surface Mount | SMB |
|
|
NP2300SCT3GTHYRISTOR 190V 100A DO-214AA |
9,227 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 260V | 190V | 4 V | - | 100 A | 150 mA | 1 | 56pF | - | - | Surface Mount | SMB |
|
|
MMT10B260T3THYRISTOR 200V 100A DO-214AA |
5,913 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 320V | 200V | 5 V | - | 100 A | 150 mA | 1 | 200pF | - | - | Surface Mount | SMB |
|
|
NP0720SCT3GTHYRISTOR 65V 100A DO-214AA |
7,886 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 88V | 65V | 4 V | - | 100 A | 150 mA | 1 | 198pF | - | - | Surface Mount | SMB |
|
|
NP2100SCT3GTHYRISTOR 180V 100A DO-214AA |
3,691 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 240V | 180V | 4 V | - | 100 A | 150 mA | 1 | 97pF | - | - | Surface Mount | SMB |
|
NP3100SB1GTHYRISTOR SURGE PROTECT |
2,500 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NP0640SCMCT3GTHYRISTOR 58V 400A DO-214AA |
8,798 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 77V | 58V | 4 V | 400 A | 100 A | 150 mA | 1 | 33pF | - | - | Surface Mount | SMB |
|

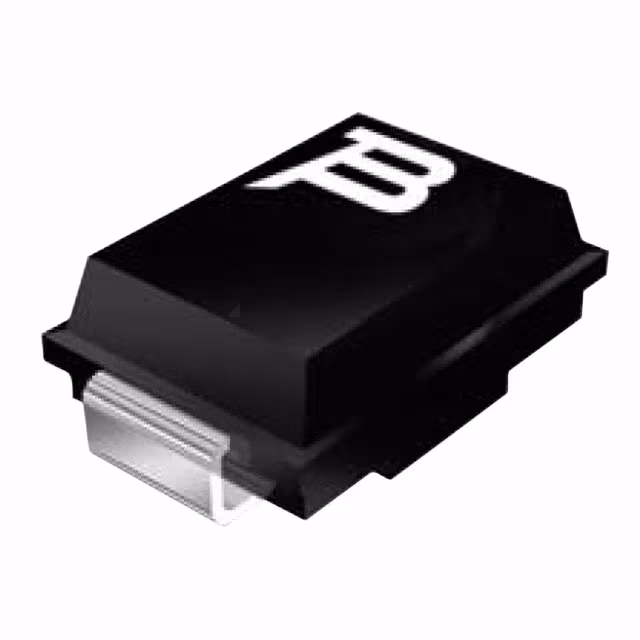

TISP4A265H3BJR-STHYRISTOR 100V 300A DO-214AA |
6,918 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | 125V | 100V | - | 300 A | 100 A | 150 mA | 1 | 72pF | - | - | Surface Mount | DO-214AA (SMB) |
|
TB0900M-13THYRISTOR 75V 250A DO-214AA |
6,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Discontinued at Digi-Key | 98V | 75V | 3.5 V | 250 A | 50 A | 150 mA | 1 | 140pF | - | - | Surface Mount | SMB |
|
|
TB1300M-13THYRISTOR 120V 250A DO-214AA |
6,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Discontinued at Digi-Key | 160V | 120V | 3.5 V | 250 A | 50 A | 150 mA | 1 | 90pF | - | - | Surface Mount | SMB |
|
|
TB1100M-13THYRISTOR 90V 250A DO-214AA |
3,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Discontinued at Digi-Key | 130V | 90V | 3.5 V | 250 A | 50 A | 150 mA | 1 | 90pF | - | - | Surface Mount | SMB |
|
P3500EBLTHYRISTOR 320V 250A TO-226-2 |
2,000 |
|
Datasheet |
TO-226-2, TO-92-2 (TO-226AC) | SIDACtor® | Bulk | Active | 400V | 320V | 4 V | 250 A | 80 A | 150 mA | 1 | 40pF | - | - | Through Hole | TO-92-3 |
|
|
MMT05B350T3GTHYRISTOR 300V 150A DO-214AA |
6,197 |
|
- |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | 400V | 300V | 3 V | 150 A | 50 A | 150 mA | 1 | 30pF | - | - | Surface Mount | SMB |
