Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFYR-100.5-TBVSPD 600VAC MCOV 1 POLE |
2,278 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 600VAC | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus, UL |
|
ASISP320-3PSPD TYP1/TYP2 320VAC MCOV 1 POLE |
2,550 |
|
Datasheet |
SP | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 320VAC | 20 kA | 50 kA | 200 kA | - | - | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus |
|
|
ASISPV600-V-CD-SSPD 700VAC MCOV 1 POLE |
2,675 |
|
- |
- | Retail Package | Active | - | Base + Module | 1 | 700VAC | 20 kA | 50 kA | - | - | - | -40°C ~ 80°C | - | DIN Rail | - |
|
|
2774950000SPD TYP 1/TYP 2 275V MCOV 2 POLE |
3,851 |
|
Datasheet |
- | Retail Package | Active | Type 1, Type 2 | Base + Module | 2 | 275V | 25 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | - | DIN Rail | CE |
|
|
2736440000SPD TYP2/TYP3 300VAC/305VDC MCOV |
1,474 |
|
Datasheet |
- | Bulk | Active | Type 2, Type 3 | Base + Module | 4 | 300VAC, 305VDC | 40 kA | 65 kA | 150 kA | 1.8 kV | 1.3 kV | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
TFYR-220.5-TBVRSPD 600VAC MCOV 1 POLE |
2,421 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 600VAC | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus, UL |
|
|
ASISP420-3PN600V Surge Protector, DIN Rail M |
3,667 |
|
- |
- | Retail Package | Active | - | Base + Module | 4 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
1351840000SPD TYP 1/TYP 2 400V MCOV 2 POLE |
1,693 |
|
Datasheet |
- | Retail Package | Active | Type 1, Type 2 | Base + Module | 2 | 400V | 25 kA | 100 kA | 25 kA | - | 1.9 kV | -40°C ~ 70°C | - | DIN Rail | CE |
|
|
1351620000SPD TYP 1/TYP 2 280V MCOV 2 POLE |
3,407 |
|
Datasheet |
- | Retail Package | Active | Type 1, Type 2 | Base + Module | 2 | 280V | 25 kA | 100 kA | 25 kA | - | 1.6 kV | -40°C ~ 70°C | - | DIN Rail | CE |
|
LSP10480SSPD TYPE 2 510VAC MCOV 1 POLE |
7,174 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 510VAC | 10 kA | 20 kA | - | - | 2.1 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
2906829SPD 10VAC/15VDC MCOV 1 POLE |
2,818 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 10VAC, 15VDC | - | - | - | - | 25 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
FSP3-277-20KASPD 320VAC/420VDC MCOV 3 POLE |
4,313 |
|
Datasheet |
FSP3 | Box | Active | - | - | 3 | 320VAC, 420VDC | 20 kA | 20 kA | - | - | - | -40°C ~ 85°C | - | Free Hanging | cURus, UL |
|
2906799SPD 21VAC/30VDC MCOV 1 POLE |
6,571 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 10 kA | - | - | 130 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, cUL, cULus, UL |
|

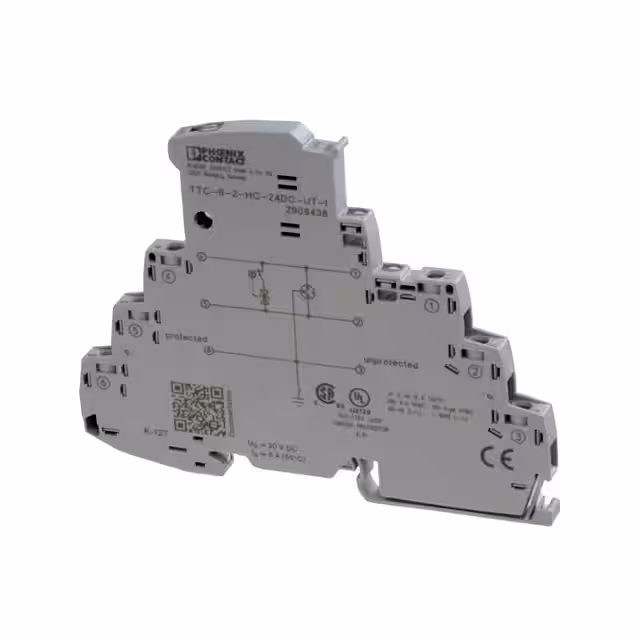

2908438SPD 21VAC/30VDC MCOV 1 POLE |
6,400 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 500 A | 5 kA | - | - | 50 V | -40°C ~ 85°C | - | DIN Rail | - |
|
SPD2-300-2P0-RSPD TYPE 1/TYPE 2 300VAC MCOV |
2,289 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Module Only | 2 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | cURus, UL, VDE |
|
SPD2-300-3P0-RSPD TYPE 1/TYPE 2 300VAC MCOV |
6,244 |
|
Datasheet |
SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
LSP05277PSPD TYPE 2/TYPE 4 320VAC MCOV |
6,354 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 320VAC | 5 kA | 10 kA | - | - | 1.4 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|

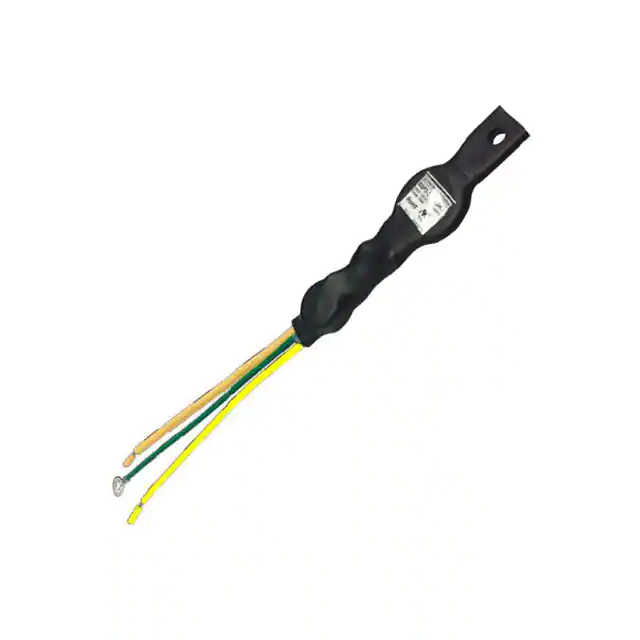

SSP3-480SPD TYPE 5 550VAC/745VDC MCOV |
3,037 |
|
Datasheet |
SSP3 | Bulk | Active | Type 5 | Module Only | 1 | 550VAC, 745VDC | 5 kA | 20 kA | - | - | - | -35°C ~ 85°C | - | - | cURus, UL |
|
BSP3-480-20KASPD 550VAC/745VDC MCOV 3 POLE |
2,126 |
|
Datasheet |
BSP3 | Box | Active | - | Module Only | 3 | 550VAC, 745VDC | 20 kA | 20 kA | - | - | - | - | - | Free Hanging | CE, cURus, UL |
|

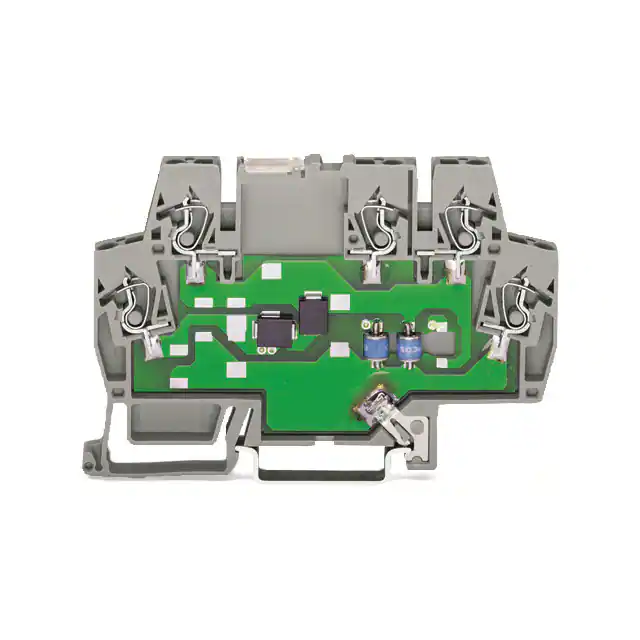

792-802SPD 23VAC/33VDC MCOV 1 POLE |
7,517 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 23VAC, 33VDC | 300 A | 5 kA | - | - | 50 V | -40°C ~ 80°C | - | DIN Rail | EAC |
