Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSP05G277SSPD TYPE 2 320VAC MCOV 1 POLE |
1,553 |
|
Datasheet |
LSP | Bulk | Active | Type 2 | Module Only | 1 | 320VAC | 5 kA | 10 kA | - | - | - | -45°C ~ 85°C | Thermally Protected | Screw | cURus, UL |
|
LSP10277PSPD TYPE 2 320VAC MCOV 1 POLE |
121 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 320VAC | 10 kA | 20 kA | - | - | 1.4 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
2906831SPD 30VAC/21VDC MCOV 1 POLE |
171 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 30VAC, 21VDC | - | - | - | - | 50 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
LSP10240LLSSPD TYPE 2 275VAC MCOV 1 POLE |
108 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 275VAC | 10 kA | 20 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
BSP3-277-20KASPD 320VAC/420VDC MCOV 3 POLE |
1,089 |
|
Datasheet |
BSP3 | Box | Active | - | Module Only | 3 | 320VAC, 420VDC | 20 kA | 20 kA | - | - | - | - | - | Free Hanging | CE, cURus, UL |
|
2906840SPD 150VAC/150VDC MCOV 1 POLE |
110 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 150VAC, 150VDC | - | - | - | - | 500 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
2906805SPD 21VAC/30VDC MCOV 1 POLE |
1,350 |
|
Datasheet |
TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 10 kA | - | - | 130 V | -40°C ~ 85°C | - | DIN Rail | CSA, UL |
|
2906798SPD 21VAC/30VDC MCOV 1 POLE |
4,782 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 21VAC, 30VDC | 5 kA | 20 kA | - | - | 750 V | -40°C ~ 70°C | - | DIN Rail | cCSAus, CSA, CSAus, cUL, cULus, UL |
|
2798844SPD TYPE 2 275VAC MCOV 1 POLE |
4,467 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 1 | 275VAC | 20 kA | 40 kA | 25 kA | - | 1.35 kV | -40°C ~ 80°C | - | Base Mount | CB, CCA, CSA, cUL, cULus, EAC, GL, KEMA-KEUR, OVE, UL |
|
M9L11120SPD 175VAC MCOV 1 POLE |
4,885 |
|
Datasheet |
- | Box | Active | - | Base + Module | 1 | 175VAC | 20 kA | 75 kA | - | - | 600 V | -25°C ~ 60°C | - | DIN Rail | - |
|
|
1320-S-24SPD TYPE 2/TYP 4 38V MCOV 1 POLE |
134 |
|
Datasheet |
1320 | Bulk | Active | Type 2, Type 4 | Base + Module | 1 | 38V | 10 kA | 20 kA | - | - | 250 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, CSA, UR |
|

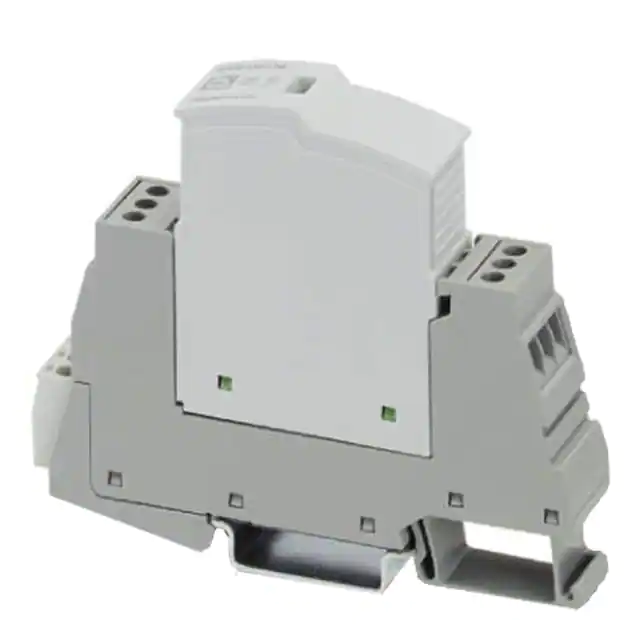

2907918SPD TYPE 2/TYPE 3 150VAC MCOV |
522 |
|
Datasheet |
PLT-SEC | Bulk | Active | Type 2, Type 3 | Base + Module | 1 | 150VAC | 5 kA | 10 kA | 10 kA | 900 V | 950 V | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, cUL, cULus, EAC, UR, UL |
|
|
2907919SPD TYPE 2/TYPE 3 264VAC MCOV |
197 |
|
Datasheet |
PLT-SEC | Bulk | Active | Type 2, Type 3 | Base + Module | 1 | 264VAC | 5 kA | 10 kA | 10 kA | - | 1.4 kV | -40°C ~ 80°C | - | DIN Rail | CB, CSA, cUR, cURus, EAC, UR |
|

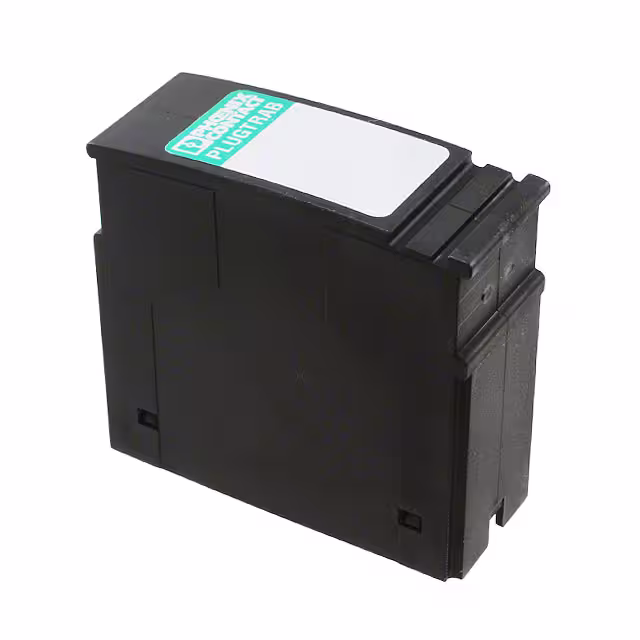

2856032SPD 20VAC/28VDC MCOV 1 POLE |
3,140 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 20VAC, 28VDC | 10 kA | 10 kA | - | - | 70 V | -40°C ~ 85°C | - | Base Mount | EAC, UL |
|

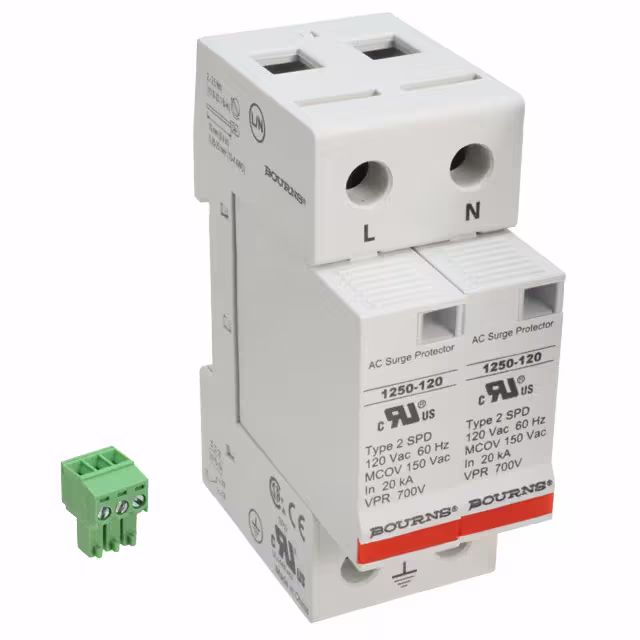

1250-2S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
3,016 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 2 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|

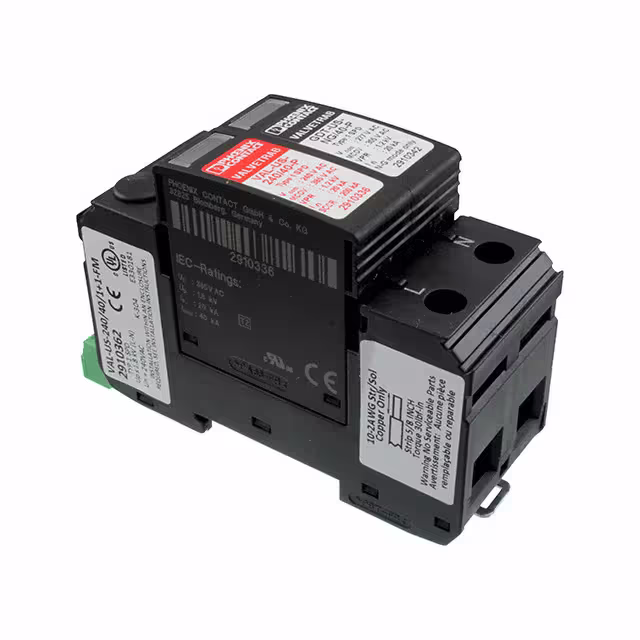

2910362SPD TYPE 1 385VAC MCOV 1 POLE |
2,892 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 2 kV | 2.2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|

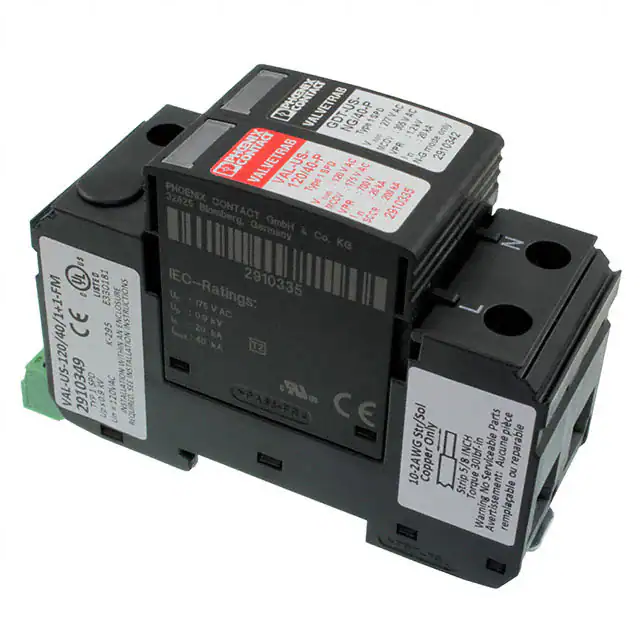

2910349SPD TYPE 1 305VAC MCOV 1 POLE |
1,471 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 305VAC | 20 kA | - | 25 kA | 1.8 kV | 1.6 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|

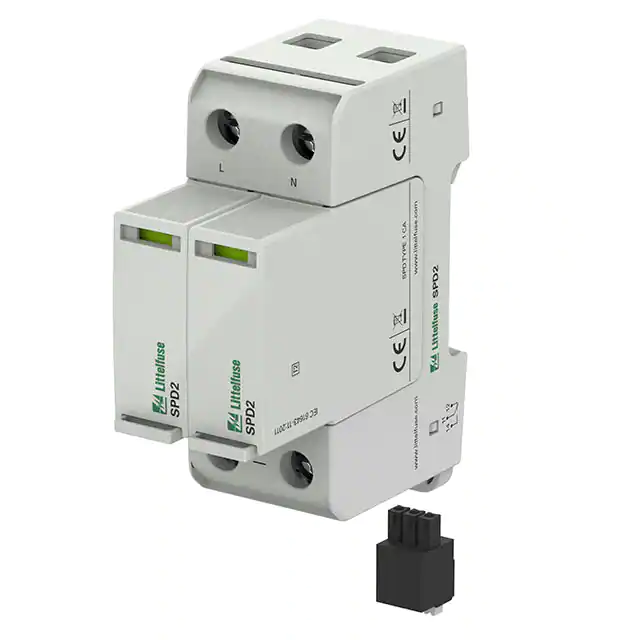

SPD2-150-2P0-RSPD TYPE 1/TYPE 2 150VAC MCOV |
2,023 |
|
Datasheet |
SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 2 | 150VAC | 20 kA | 50 kA | 200 kA | 600 V | 1.25 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | cURus, UL, VDE |
|
LSP05G240SX3333SPD TYPE 2 275VAC MCOV 1 POLE |
109 |
|
Datasheet |
LSP | Tray | Active | Type 2 | Module Only | 1 | 275VAC | 5 kA | 10 kA | - | - | - | -45°C ~ 85°C | Thermally Protected | Screw | cURus, UL |
|
|
LSP05240PSPD TYPE 2/TYPE 4 275VAC MCOV |
104 |
|
Datasheet |
LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 275VAC | 5 kA | 10 kA | - | - | 1.2 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
