Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

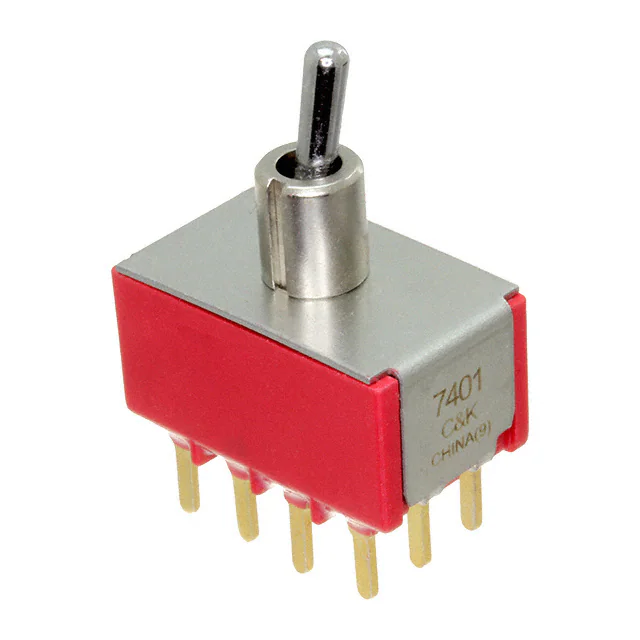

7401SYV4MESWITCH TOGGLE 4PDT 5A 120V |
4,617 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401SYZQES2SWITCH TOGGLE 4PDT 5A 120V |
3,148 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
|
7401TV41LESWITCH TOGGLE 4PDT 5A 120V |
4,891 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7403P3YZQESSWITCH TOGGLE 4PDT 5A 120V |
2,009 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
|
7403SYCMISWITCH TOGGLE 4PDT 5A 120V |
2,375 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
|
|
7403TCWV71LESWITCH TOGGLE 4PDT 5A 120V |
4,849 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7409L2YZBESWITCH TOGGLE 4PDT 0.4VA 20V |
4,118 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7409SYZQE2SWITCH TOGGLE 4PDT 5A 120V |
1,045 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
7411K19AV2LESWITCH TOGGLE DP3T 5A 120V |
3,869 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411P3Y9V2MESWITCH TOGGLE DP3T 5A 120V |
3,213 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411P3YZQESSWITCH TOGGLE DP3T 5A 120V |
3,459 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411P4HCKESWITCH TOGGLE DP3T 0.4VA 20V |
2,654 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411P4YAV2LESWITCH TOGGLE DP3T 5A 120V |
1,896 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411SDAV2MESWITCH TOGGLE DP3T 5A 120V |
4,517 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411SYAV2KESWITCH TOGGLE DP3T 0.4VA 20V |
3,898 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411SYCKESWITCH TOGGLE DP3T 0.4VA 20V |
4,938 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411SYCLESWITCH TOGGLE DP3T 5A 120V |
3,998 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7411T2PCLESWITCH TOGGLE DP3T 5A 120V |
4,176 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7413L42D9V4KE2SWITCH TOGGLE DP3T 0.4VA 20V |
3,888 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | DP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 21.29mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7413TZQESSWITCH TOGGLE DP3T 5A 120V |
1,913 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
