Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
68AT841-1SWITCH TOGGLE 7PDT 1A 28V |
4,315 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 7PDT | On-Off-On | 1A (DC) | - | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
27ET108-TSWITCH TOGGLE DPDT 7A 28V |
2,285 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 7A (DC) | - | 28 V | Standard Round | 23.62mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
27ET124-GSWITCH TOGGLE DPDT 4A 28V |
1,479 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 4A (DC) | - | 28 V | Locking Lever | 25.90mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
664AT550-5SWITCH TOGGLE |
3,541 |
|
Datasheet |
AT | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2ET7-SSWITCH TOGGLE |
4,269 |
|
Datasheet |
ET | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4TF2-2SWITCH TOGGLE 6PDT 5A 115V |
1,721 |
|
- |
TF | Bulk | Active | - | 6PDT | On-Mom | 5A (AC/DC) | 115 V | 30 V | Standard Round | - | Non-Illuminated | - | - | Wire Leads | - | - | Environment Sealed | - | - |
|
|
222AT6SWITCH TOGGLE 6PDT 2A 125V |
2,800 |
|
- |
AT | Bulk | Active | Panel Mount | 6PDT | On-On | 2A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 19.76mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
29ET28-6-BSWITCH TOGGLE 4PDT 1A 28V |
3,836 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 1A (DC) | - | 28 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
31AT225SWITCH TOGGLE DPDT 1A 30V |
1,783 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 1A (DC) | - | 30 V | Standard Round | 22.68mm | Non-Illuminated | - | - | - | - | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
29ET16-3B-KSWITCH TOGGLE 4PDT 1A 28V |
4,406 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 1A (DC) | - | 28 V | Locking Lever | 26.92mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
62AT39-3SWITCH TOGGLE DPDT 1A 30V |
3,681 |
|
- |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 1A (DC) | - | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
228AT20SWITCH TOGGLE 8PDT 4A 125V |
4,187 |
|
- |
AT | Bulk | Active | Panel Mount | 8PDT | On-On | 4A (AC/DC) | 125 V | 28 V | Standard Round | 19.81mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
4TF3-2SWITCH TOGGLE 6PDT 5A 115V |
4,894 |
|
- |
TF | Bulk | Active | - | 6PDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Wire Leads | - | - | Environment Sealed | - | -20°C ~ 71°C |
|
|
M2013X012SWITCH TOGGLE SPDT |
2,542 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

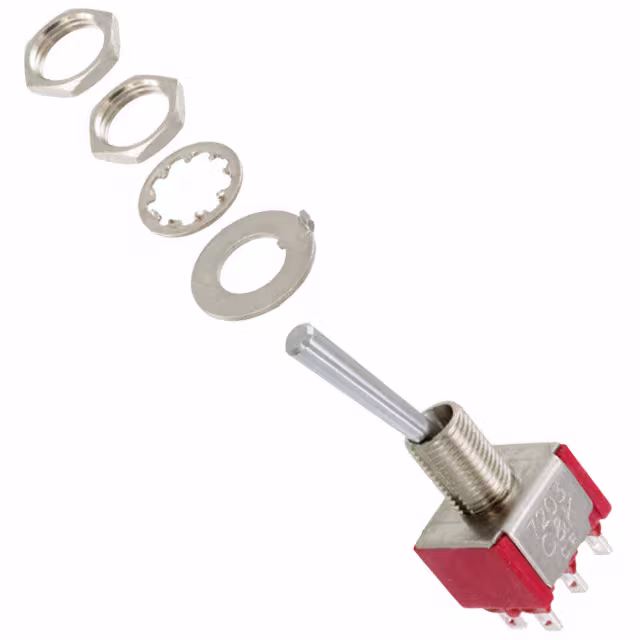

7203L1YZQESWITCH TOGGLE DPDT 5A 120V |
2,908 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7401MD9V71MESWITCH TOGGLE 4PDT 5A 120V |
2,859 |
|
Datasheet |
7000 | Tray | Obsolete | Through Hole | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022LL1W01SWITCH TOGGLE DPDT 6A 125V |
4,571 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

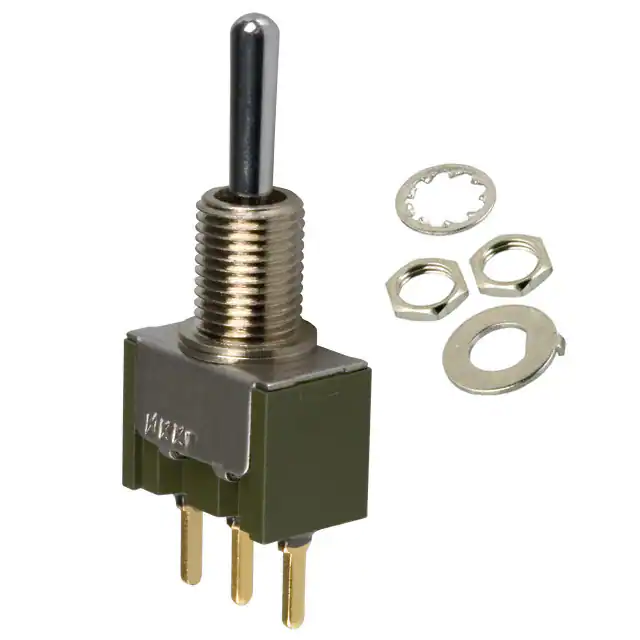

M2015SS1G03SWITCH TOGGLE SPDT 0.4VA 28V |
1,280 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

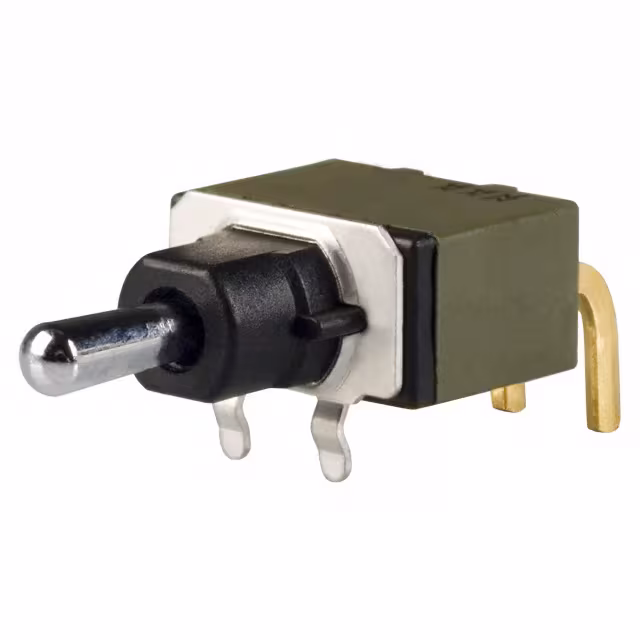

M2T13S4A5G30SWITCH TOGGLE SPDT 0.4VA 28V |
3,687 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18S4A5G30SWITCH TOGGLE SPDT 0.4VA 28V |
1,596 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
