Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3950BASWITCH TOGGLE DPST 20A 125V |
3,738 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
A12KH-AHSWITCH TOGGLE SPDT 0.4VA 28V |
3,482 |
|
- |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | - | -30°C ~ 85°C |
|
M2018EA2A13SWITCH TOGGLE SPDT 6A 125V |
1,193 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23JB-JASWITCH TOGGLE DPDT 0.4VA 28V |
2,519 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
TB1-2B-DC-6SWITCH TOGGLE DPST-NO 20A 125V |
469 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | - | - | - |
|
|
A12KV-AASWITCH TOGGLE SPDT 0.4VA 28V |
4,019 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|

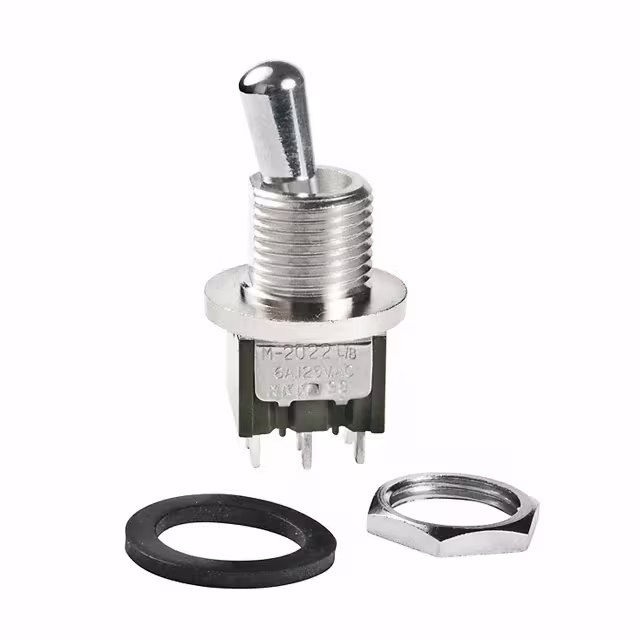

M2022BB3W01SWITCH TOGGLE DPDT 6A 125V |
3,538 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TD2-1G-DC-3-HSWITCH TOGGLE SPDT 50A 12V |
2,018 |
|
Datasheet |
TD2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 50A (DC) | - | 12 V | Flatted | 28.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|
M2022S2A2W30SWITCH TOGGLE DPDT 6A 125V |
1,492 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B25KWSWITCH TOGGLE DPDT 0.4VA 28V |
4,635 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
BT1E-2M4-ZSWITCH TOGGLE SPDT 50MA 20V |
180 |
|
Datasheet |
BT | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 50mA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
S3911BASWITCH TOGGLE SPDT 16A 125V |
3,562 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPDT | On-Mom | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
TL39WS84000SWITCH TOGGLE SPDT 0.4VA 20V |
337 |
|
Datasheet |
SMT TL | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | High Temperature Plastic Cap | -40°C ~ 85°C |
|
|
M2012SD3W01-BASWITCH TOGGLE SPDT 6A 125V |
2,903 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | IP67 - Dust Tight, Waterproof | Black Cap | -30°C ~ 85°C |
|
M2012SD3W01-BBSWITCH TOGGLE SPDT 6A 125V |
2,831 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | White Cap | -30°C ~ 85°C |
|
|
M2012SD3W01-CASWITCH TOGGLE SPDT 6A 125V |
4,446 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Cap | -30°C ~ 85°C |
|
5-6437630-7SWITCH TOGGLE SPDT 6A 250V |
4,738 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|

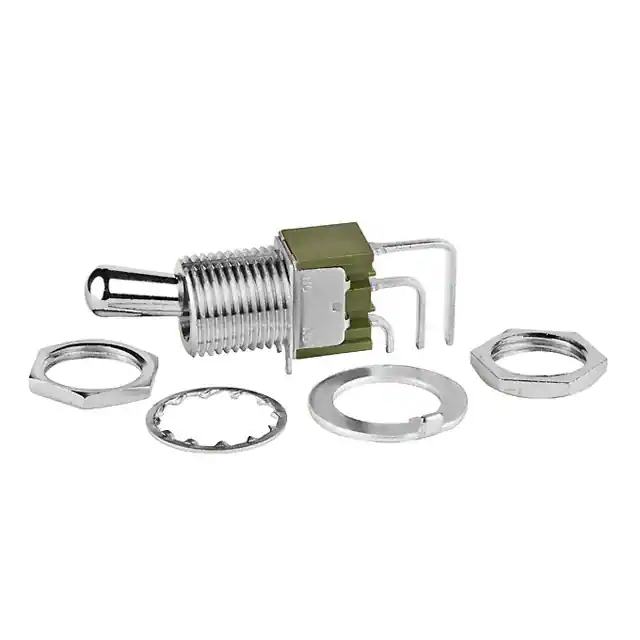

M2012BB1W40SWITCH TOGGLE SPDT 6A 125V |
1,353 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23JH-JASWITCH TOGGLE DPDT 0.4VA 28V |
3,550 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

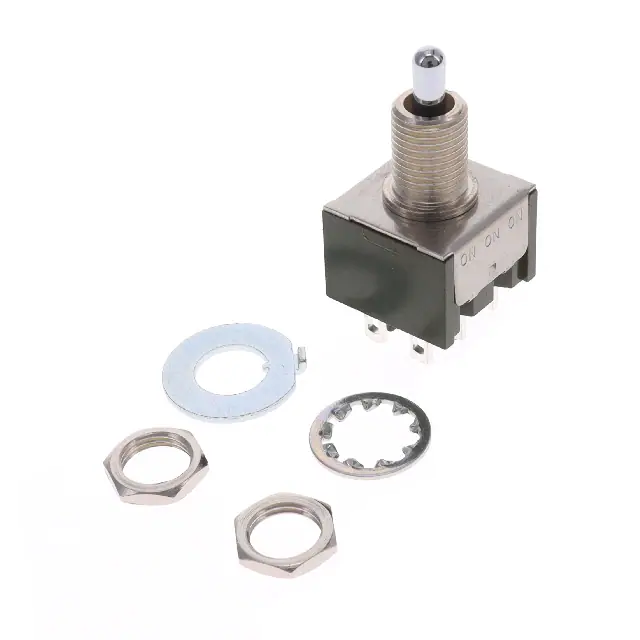

M2024S2S1W01SWITCH TOGGLE SP3T 6A 125V |
4,690 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
