Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A121K12KZQSWITCH TOGGLE SPDT 6A 125V Electroswitch |
1,545 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123T1TAV2QSWITCH TOGGLE SPDT 6A 125V Electroswitch |
1,583 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A131P41YAGSWITCH TOGGLE SPDT 6A 125V Electroswitch |
2,280 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A134P32Y5ZQSWITCH TOGGLE SPDT 6A 125V Electroswitch |
1,653 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A134P32YZGSWITCH TOGGLE SPDT 6A 125V Electroswitch |
4,425 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A223S1YAVQSWITCH TOGGLE DPDT 6A 125V Electroswitch |
4,167 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227S1CWZQSWITCH TOGGLE DPDT 6A 125V Electroswitch |
2,560 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|

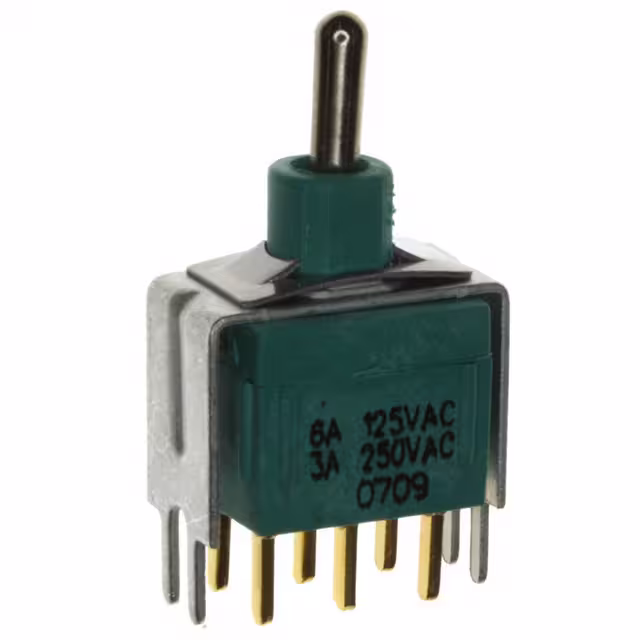

WT221M1D1V30GSWITCH TOGGLE DPDT 6A 125V Electroswitch |
3,298 |
|
Datasheet |
WT | Bulk | Active | Through Hole | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
WT223S1D1V30BSWITCH TOGGLE DPDT 0.5VA 28V Electroswitch |
3,810 |
|
Datasheet |
WT | Bulk | Active | Through Hole | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 12.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
A227T1TXZQSWITCH TOGGLE DPDT 6A 125V Electroswitch |
4,157 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
