Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A127T11TXCBSWITCH TOGGLE SPDT 0.5VA 28V Electroswitch |
3,095 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A131T1TZQSWITCH TOGGLE SPDT 6A 125V Electroswitch |
3,112 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT121M1D9V30GSWITCH TOGGLE SPDT 6A 125V Electroswitch |
1,279 |
|
Datasheet |
WT | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
A131S1YZGSWITCH TOGGLE SPDT 6A 28V Electroswitch |
1,114 |
|
- |
A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | - |
|

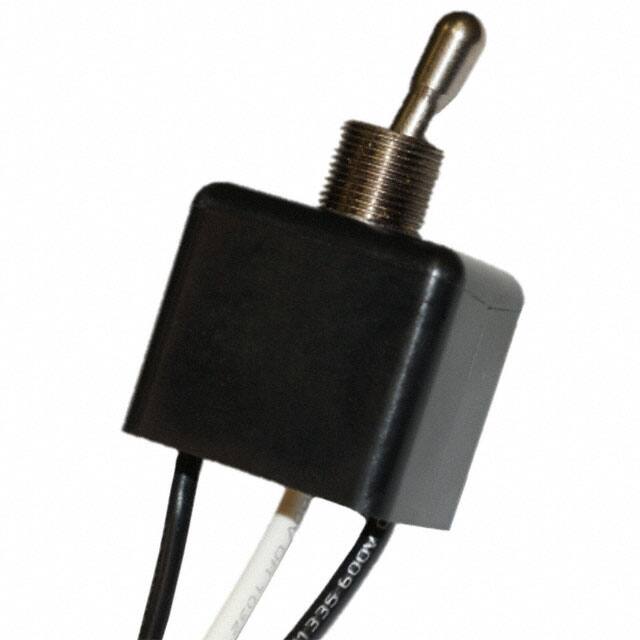

3301DSWITCH TOGGLE SPDT 20A 125V Electroswitch |
1,107 |
|
Datasheet |
3300 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
3302DSWITCH TOGGLE SPDT 20A 125V Electroswitch |
4,581 |
|
Datasheet |
3300 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
|
A221S1YZQSWITCH TOGGLE DPDT 6A 125V Electroswitch |
4,971 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121M1DCQPSWITCH TOGGLE SPDT 6A 125V Electroswitch |
4,945 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121P32D9V30QSWITCH TOGGLE SPDT 6A 125V Electroswitch |
4,811 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A123P11YZQSWITCH TOGGLE SPDT 6A 125V Electroswitch |
4,222 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 21.34mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
