Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8F1011C-ZSWITCH TOGGLE SPDT 25MA 20V Nidec Components Corporation |
2,504 |
|
Datasheet |
8F | Bulk | Active | Panel Mount | SPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -30°C ~ 85°C |
|

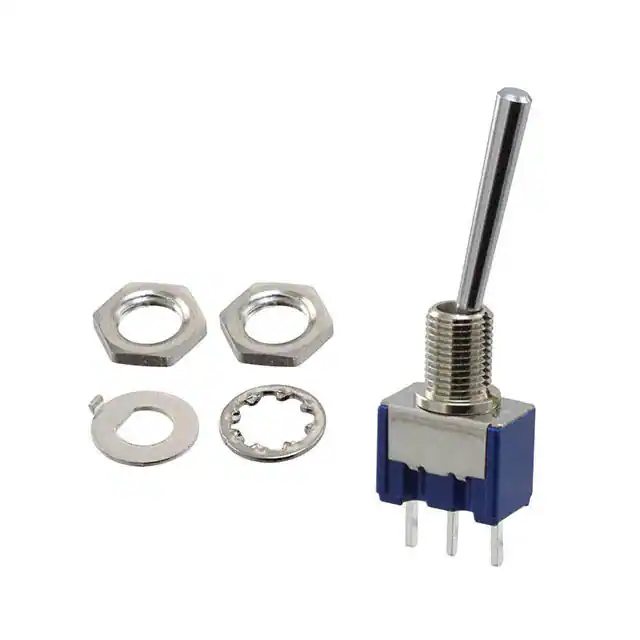

8D1012-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
1,665 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8A2021-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
2,670 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

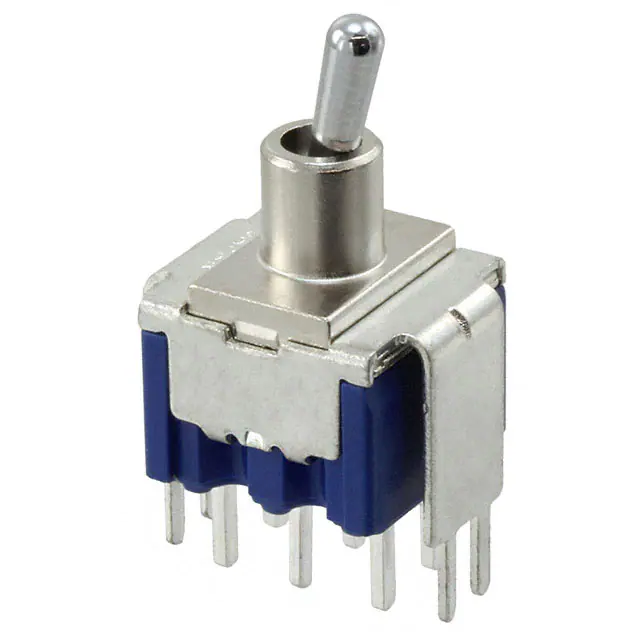

8G2012-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
2,871 |
|
Datasheet |
8G | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|
8C2011-ZSWITCH TOGGLE DPDT 6A 125V Nidec Components Corporation |
2,625 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
ET103V12-ZSWITCH TOGGLE SPDT 3A 125V Nidec Components Corporation |
1,110 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-On | 3A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
BT1F-2M4-ZSWITCH TOGGLE SPDT 50MA 20V Nidec Components Corporation |
3,990 |
|
Datasheet |
BT | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 50mA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
8F1061-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
4,284 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -30°C ~ 85°C |
|
8B1011-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
3,764 |
|
Datasheet |
8B | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
8F1041-ZSWITCH TOGGLE SPDT 6A 125V Nidec Components Corporation |
4,990 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -30°C ~ 85°C |
