Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

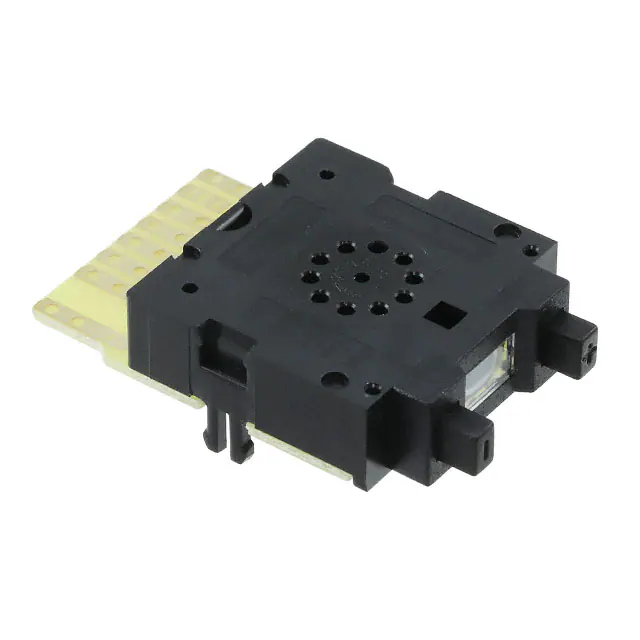

DPS8131AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
657 |
|
Datasheet |
DPS8 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|

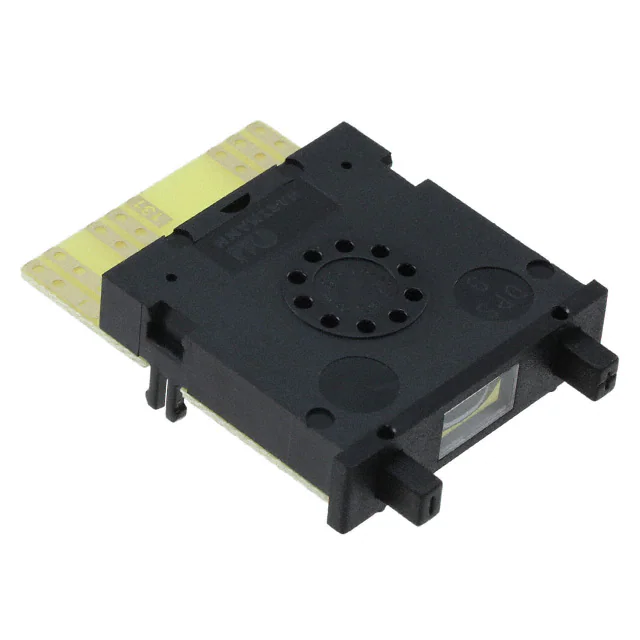

DPS9131AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
249 |
|
Datasheet |
DPS9 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
1-1437601-8SWITCH THUMB BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,979 |
|
Datasheet |
PICOD | Bulk | Active | BCD Complement | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 60°C |
|

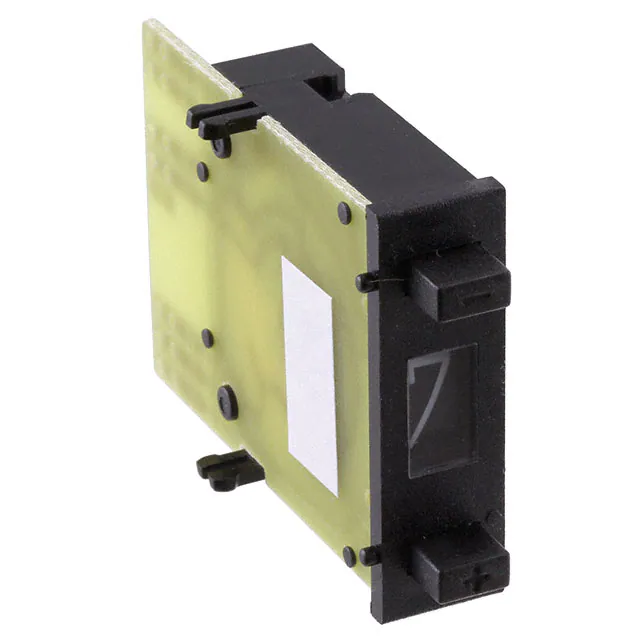

DPS10131AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,052 |
|
Datasheet |
DPS10 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.275" (7.00mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -20°C ~ 80°C |
|

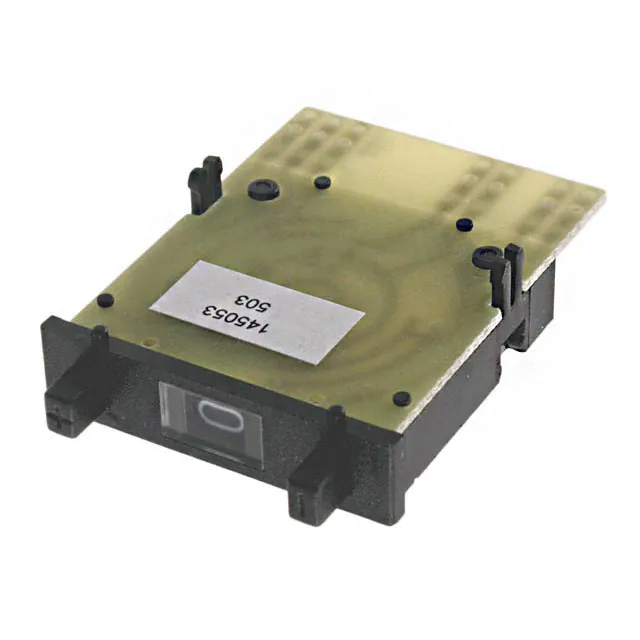

4-1437603-7SWITCH THUMB HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,844 |
|
Datasheet |
DPS9 | Bulk | Active | Hexadecimal | 0 ~ 15 | 1 | 0.169" (4.30mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
DPS10301AKSWITCH THUMB HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,296 |
|
- |
DPS10 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.169" (4.30mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -20°C ~ 80°C |
|
|
SMCD137AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,449 |
|
Datasheet |
SMCD | Bulk | Obsolete | BCD | 0 ~ 9 | - | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|
|
PICO131AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,979 |
|
- |
PICO | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 60°C |
|
|

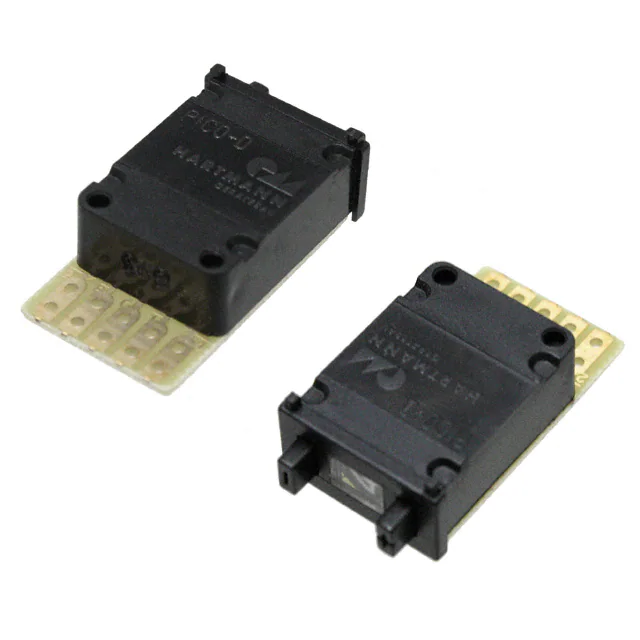

PICOD131AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,679 |
|
Datasheet |
PICOD | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 60°C |
|

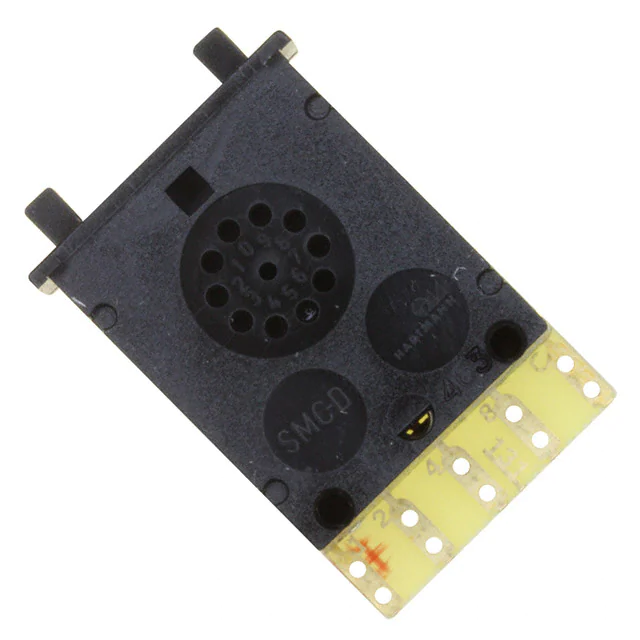

SMCD131AKSWITCH THUMB BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,476 |
|
Datasheet |
SMCD | Bulk | Discontinued at Digi-Key | BCD | 0 ~ 9 | - | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
