Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7D-106-1SWITCH THUMB BCD 0.1A 30V |
12,641 |
|
Datasheet |
A7D | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.200" (5.08mm) | - | - | -10°C ~ 70°C |
|
A7D-206-1SWITCH THUMB BCD 0.1A 30V |
162 |
|
Datasheet |
A7D | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | - | -10°C ~ 70°C |
|
SMCD131AK2SWITCH THUMB BCD 0.1A 40V |
3,768 |
|
Datasheet |
SMCD | Tray | Active | BCD | 0 ~ 9 | 1 | 0.193" (4.90mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|
SH6S1311AKULS2SWITCH THUMB BCD 0.1A 40V |
392 |
|
Datasheet |
SH6 | Tray | Active | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - | 0.236" (6.00mm) | Rectangular - 14.20mm x 6.00mm | - | -20°C ~ 80°C |
|
A7DP-206-1SWITCH THUMB BCD 0.1A 30V |
262 |
|
Datasheet |
A7DP | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Pushwheel | 0.1A @ 30VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.200" (5.08mm) | - | Pen-Push Actuator | -10°C ~ 70°C |
|
A7CN-206-1SWITCH THUMB BCD 0.1A 28V |
175 |
|
Datasheet |
A7CN | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 28VDC | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.236" (6.00mm) | - | - | -10°C ~ 65°C |
|
|
A7CN-106-1SWITCH THUMB BCD 0.1A 28V |
1,846 |
|
Datasheet |
A7CN | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 28VDC | - | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.236" (6.00mm) | - | - | -10°C ~ 65°C |
|
PICOD131AK2SWITCH THUMB BCD 0.1A 40V |
223 |
|
Datasheet |
PICOD | Tray | Active | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 60°C |
|
DPS8131AKSWITCH THUMB BCD 0.4VA 20V |
657 |
|
Datasheet |
DPS8 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
DPS9131AKSWITCH THUMB BCD 0.4VA 20V |
249 |
|
Datasheet |
DPS9 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|

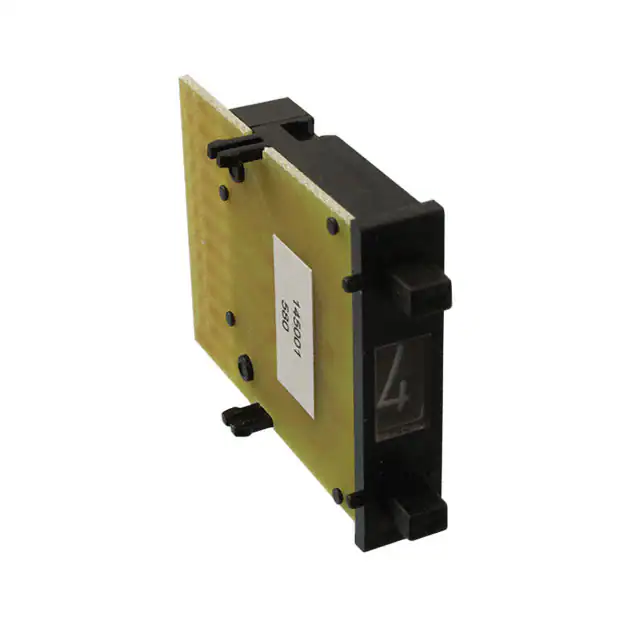

DPS9111AK2SWITCH THUMB DECIMAL 0.1A 40V |
2,442 |
|
Datasheet |
DPS9 | Tray | Active | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|

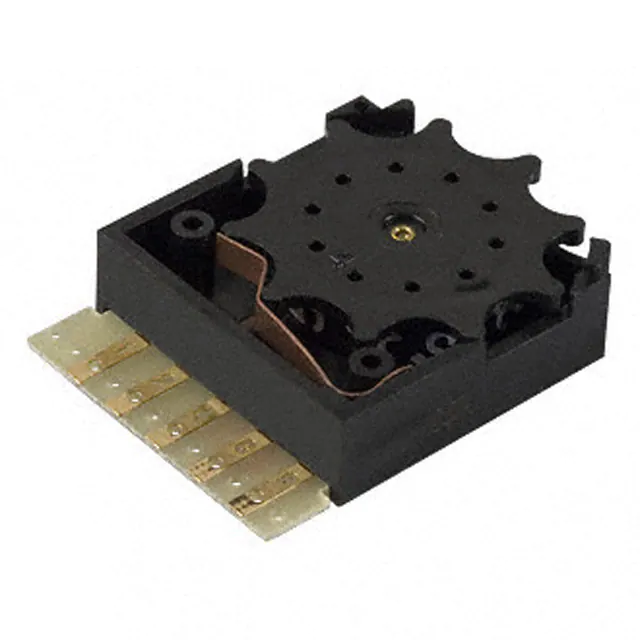

302119000SWITCH THUMB BCD 0.1A 120V |
1,301 |
|
Datasheet |
3 | Tray | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|

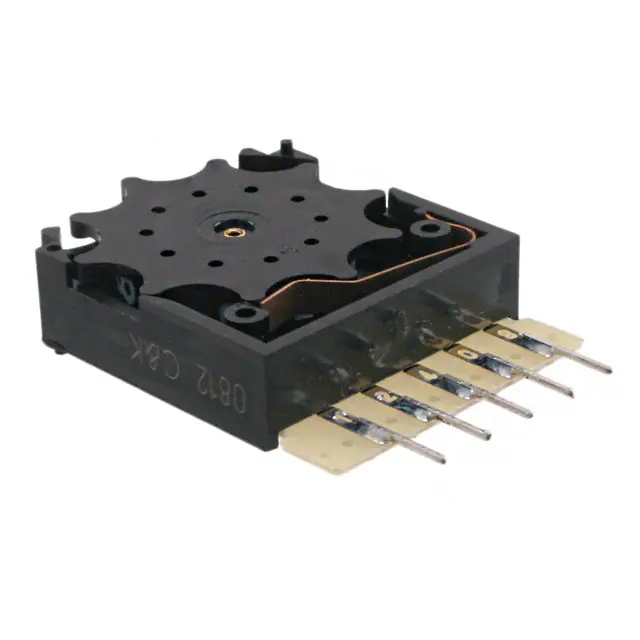

302119N00SWITCH THUMB BCD 0.1A 120V |
4,850 |
|
Datasheet |
3 | Box | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|

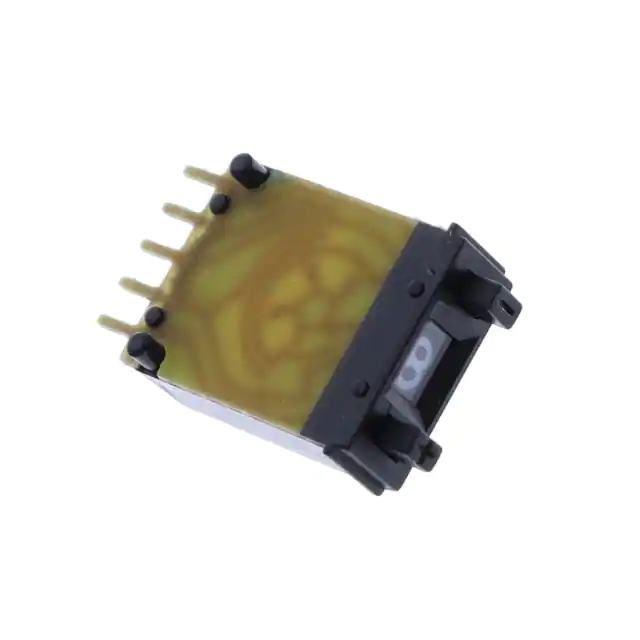

SH6G131AKK2SWITCH THUMB BCD 0.1A 40V |
1,464 |
|
- |
SH6 | Tray | Active | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Through Hole | PC Pin | - | 0.236" (6.00mm) | Rectangular - 14.20mm x 6.00mm | - | -20°C ~ 80°C |
|

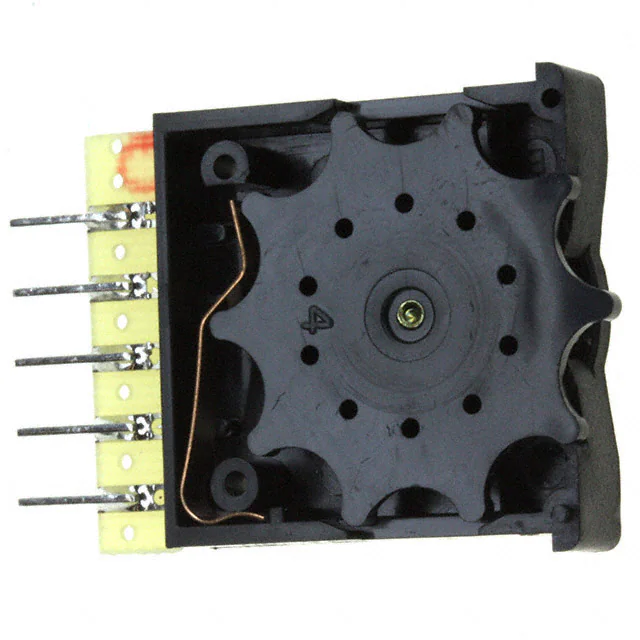

302109N00SWITCH THUMB BCD 0.1A 120V |
1,243 |
|
Datasheet |
3 | Box | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
3-1437603-5Thumb/Pushwheel Switch, Solder T |
114 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

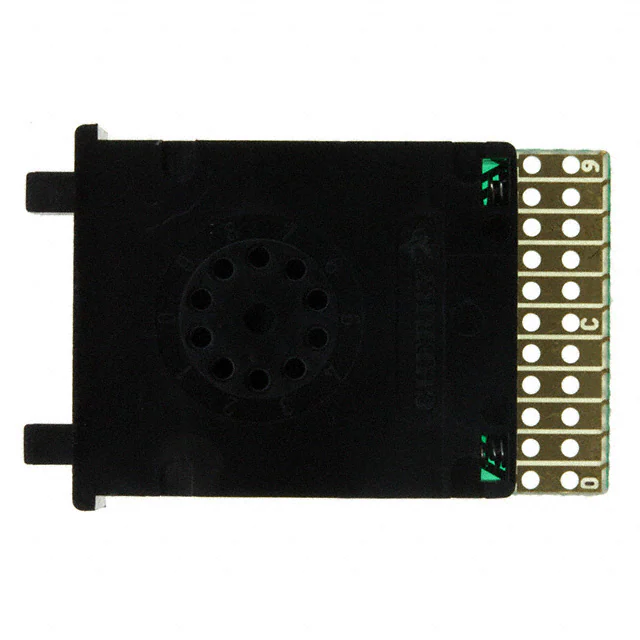

PEAA-3000SWITCH THUMB DECIMAL 0.1A 50V |
1,950 |
|
Datasheet |
PE | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | 0.196" (5.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

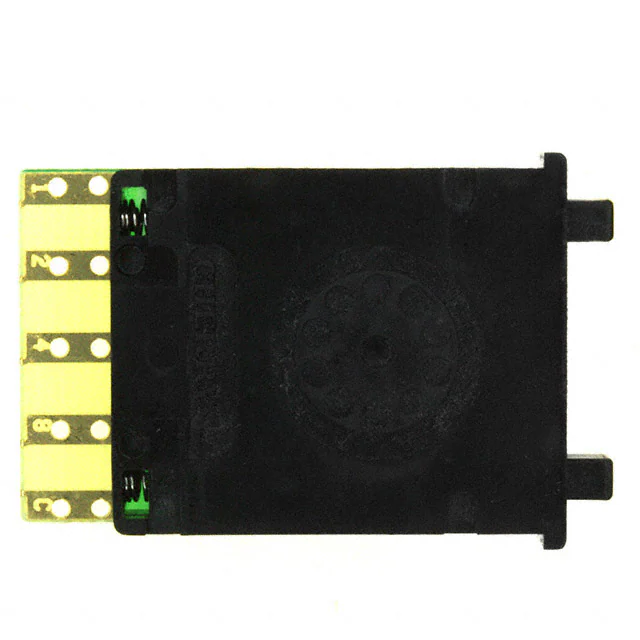

PEHA-3000SWITCH THUMB HEX 0.1A 50V |
4,695 |
|
Datasheet |
PE | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 50VAC/DC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|

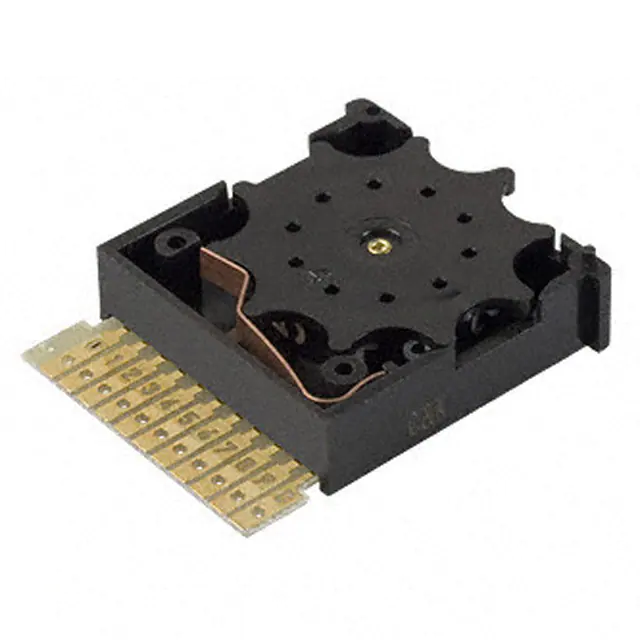

301109000SWITCH THUMB DECIMAL 0.1A 120V |
4,628 |
|
Datasheet |
3 | Bulk | Active | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
311100000SWITCH THUMB DEC 0.1A 120V/28V |
4,360 |
|
Datasheet |
3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | - | -40°C ~ 65°C |
