Oscilloscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Bandwidth | Channels | Display Type | Interface | Memory Size | Function | Probe Type | Sampling Rate (Per Second) | Input Impedance | Rise Time (Typ) | Voltage - Input (Max) | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2190E100MHZ DIG STORAGE OSCILLOSCOPE |
2,371 |
|
Datasheet |
2190 | Box | Active | Bench, Digital | 100 MHz | 2 | LCD - Color | Ethernet, RS232, USB | 40kpts | Record, Save | Passive 10:1 (2) | 1G | 1M - 16pF | 3.5 ns | CAT I 400V | 100 ~ 240VAC |
|
2194100 MHZ 1 GSA/S 4 CH DIGITAL STO |
4,692 |
|
Datasheet |
2190 | Box | Active | Bench, Digital | 100 MHz | 4 Analog | LCD - Color | USB | 14Mpts | Record, Save | Passive 10:1 (2) | 1G | 1M - 11pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
T3DSO1204DSO 200MHZ 1GS/S INTERLEAVED 4CH |
3,199 |
|
Datasheet |
T3DSO1000 | Box | Active | Bench, Digital | 200 MHz | 4 Analog | LCD - Color | RS232, USB | 28Mpts | Record, Trend | - | 1G | 1M | 1.8 ns | CAT II 240V | 100 ~ 240VAC |
|
VDS1022O-SCOPE 25MHZ 2 CH 100MS/S |
3,398 |
|
Datasheet |
VDS | Box | Active | Handheld | 25 MHz | 2 | - | USB | 5kpts | Record | Passive 10:1 (2) | 100M | 1M - 10pF | 14 ns | 40V | - |
|
|
VDS1022IO-SCOPE 25MHZ 2 CH 100MS/S |
3,794 |
|
Datasheet |
VDS | Box | Active | Handheld | 25 MHz | 2 | - | USB | 5kpts | Record | Passive 10:1 (2) | 100M | 1M - 10pF | 14 ns | 400V | - |
|
RDS1021O-SCOPE 25MHZ 1 CH 100MS/S |
2,618 |
|
Datasheet |
Wave Rambler | Box | Active | Handheld | 25 MHz | 1 | - | USB | 5kpts | Record | - | 100M | 1M | 14 ns | 50V | - |
|
AS101O-SCOPE 10MHZ 1 CH 100MS/S |
2,317 |
|
Datasheet |
AS | Box | Active | Bench | 10 MHz | 1 | LCD - Color | - | - | - | Passive 10:1 (1) | 100M | 1M - 20pF | 30 ns | 400V | 100 ~ 240VAC |
|
HDS2722 IN 1, O-SCOPE & MULTIMETER |
1,694 |
|
Datasheet |
HDS200 | Box | Active | Handheld | 70 MHz | 2 | LCD - Color (Touch) | USB Type-C | 8kpts | Save, DMM | Passive 10:1 (1) | 250M | 1M | - | CAT II 400V | 100 ~ 240VAC |
|
HDS2102OWON HDS2102 HANDHELD OSCOPE |
4,730 |
|
Datasheet |
HDS200 | Box | Active | Handheld | 100 MHz | 2 | LCD - Color | USB Type-C | 8kpts | Save, DMM | Passive 10:1 (1) | 250M | 1M | - | 400V | 100 ~ 240VAC |
|
AS201O-SCOPE 20MHZ 1 CH 100MS/S |
3,559 |
|
Datasheet |
AS | Box | Active | Bench | 20 MHz | 1 | LCD - Color | - | - | - | Passive 10:1 (1) | 100M | 1M - 20pF | 30 ns | 400V | 100 ~ 240VAC |
|
HDS242S3 IN 1, O-SCOPE&MULTIMETER&AWG |
2,602 |
|
Datasheet |
HDS200 | Box | Active | Handheld | 40 MHz | 2 | LCD - Color (Touch) | USB Type-C | 8kpts | Save, DMM, AWG | Passive 10:1 (1) | 250M | 1M | - | CAT II 400V | 100 ~ 240VAC |
|
SDS1022O-SCOPE 20MHZ 2 CH 100MS/S |
3,768 |
|
Datasheet |
SDS1000 | Box | Active | Bench | 20 MHz | 2 | LCD - Color | USB | 10kpts | Record | Passive 10:1 (2) | 100M | 1M - 20pF | 17.5 ns | 400V | 100 ~ 240VAC |
|
|
VDS2062O-SCOPE 60MHZ 2 CH 1GS/S |
3,313 |
|
Datasheet |
VDS | Box | Active | Handheld | 60 MHz | 2 | - | USB | 10Mpts | Record | Passive 10:1 (2) | 1G | 1M - 10pF | 5.8 ns | 40V | - |
|

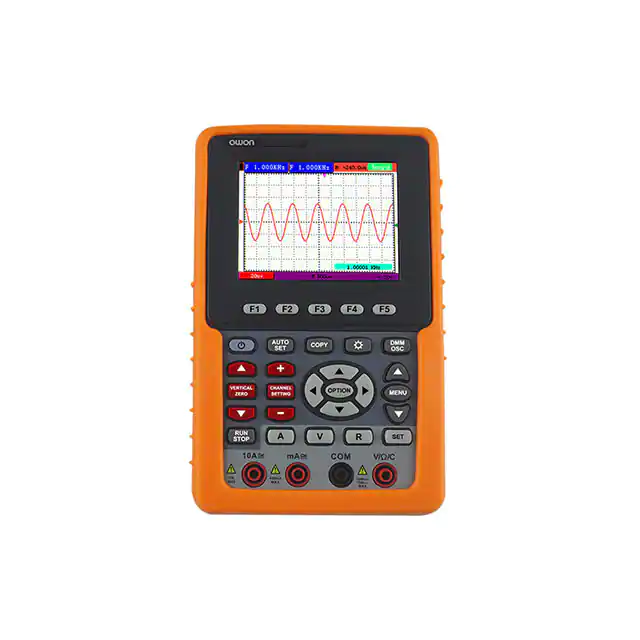

HDS1021M-NO-SCOPE 20MHZ 1 CH 500MS/S |
3,228 |
|
Datasheet |
HDS | Box | Active | Handheld | 20 MHz | 1 | LCD - Color | RS232, USB | 24kpts | Record, Playback | Passive 10:1 (1) | 500M | 1M - 18pF | 17.5 ns | CAT II 400V | 100 ~ 240VAC |
|
|
UPO1102CSDigital Oscilloscopes 100MHz |
2,010 |
|
Datasheet |
UPO1000CS | Retail Package | Active | Bench, Digital | 100 MHz | 2 Analog | LCD | RS232, USB | 56Mpts | Record, Playback | Passive (2) | 1G | 1M - 16pF | 3.5 ns | 400V | 100 ~ 240VAC |
|
|
DS1102Z-E100 MHz Digital Oscilloscope wit |
193 |
|
Datasheet |
DS1000Z-E | Box | Active | Bench | 100 MHz | 2 Analog | LCD - Color | RS232, USB | 24Mpts | Record, Playback | Passive (2) | 1G | 1M - 15pF | 3.5 ns | CAT I 300V, CAT II 100V | - |
|

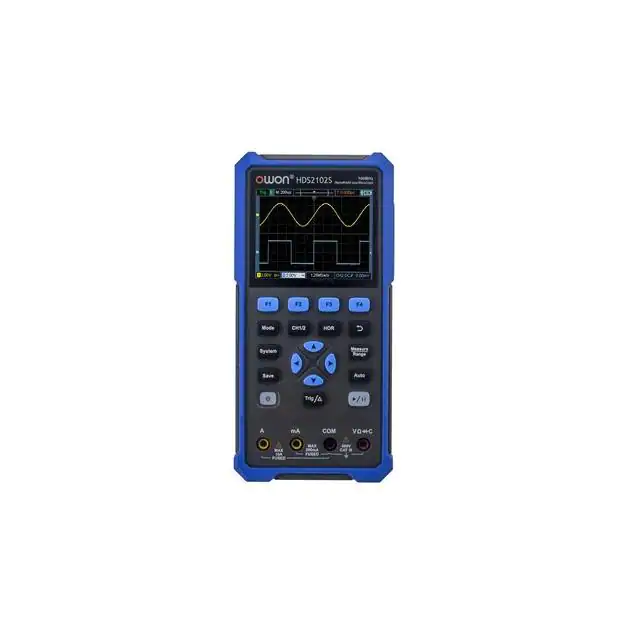

HDS2102SOwon HDS2102S handheld oscope |
1,373 |
|
- |
- | Box | Active | Handheld | 100 MHz | 2 | LCD - Color (Touch) | USB Type-C | 8kpts | DMM, Save | Passive 10:1 (1) | 500M | 1M | 5 ns | CAT II 400V | 100 ~ 240VAC |
|
|
UPO105450MHz 4Ch Ultra Phosphor Digital |
4,287 |
|
Datasheet |
UPO1000 | Retail Package | Active | Bench | 50 MHz | 4 | LCD - Color | USB | 56Mpts | Record, Playback, Save | Passive 10:1 (1) | 2G | 1M - 16pF | 7 ns | 400V | 100 ~ 240VAC |
|

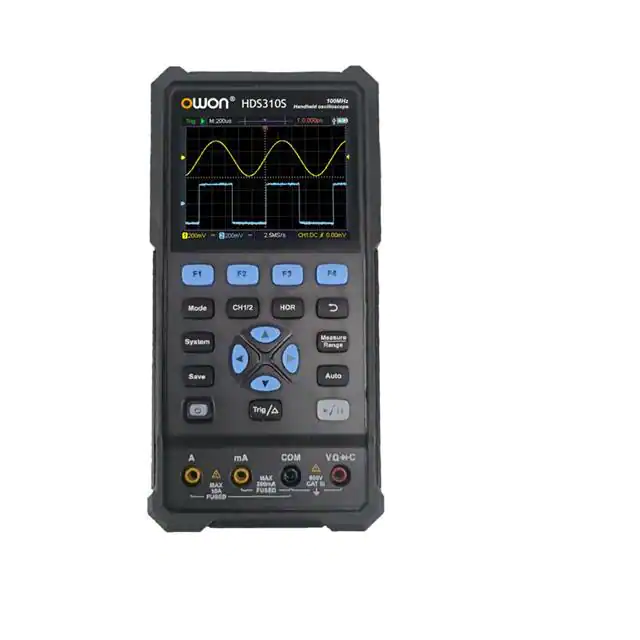

HDS310SOWON HDS310S OSCOPE+DMM+AWG |
1,176 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SDS1102O-SCOPE 100MHZ 2 CH 1GS/S |
3,901 |
|
Datasheet |
SDS1000 | Box | Active | Bench | 100 MHz | 2 | LCD - Color | USB | 10kpts | Record | Passive 10:1 (2) | 1G | 1M - 20pF | 3.5 ns | 400V | 100 ~ 240VAC |
