Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FNPYR0020FRESISTOR SHUNT 0.002 OHM 1% 500W |
1,191 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 2 mOhms | - | ±1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR0010BRES SHUNT 0.001 OHM 0.1% 500W |
1,515 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 1 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR0200BRES SHUNT 0.02 OHM 0.1% 500W |
3,002 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 20 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR0050BRES SHUNT 0.005 OHM 0.1% 500W |
1,468 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 5 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR0080BRES SHUNT 0.008 OHM 0.1% 500W |
1,333 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 8 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR1000BRES SHUNT 0.1 OHM 0.1% 500W |
1,262 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 100 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR2000BRES SHUNT 0.2 OHM 0.1% 500W |
1,310 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 200 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPYR5000BRES SHUNT 0.5 OHM 0.1% 500W |
1,765 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 500 mOhms | - | ±0.1% | 500W | ±2.5ppm/°C | -55°C ~ 125°C | Chassis Mount |
|

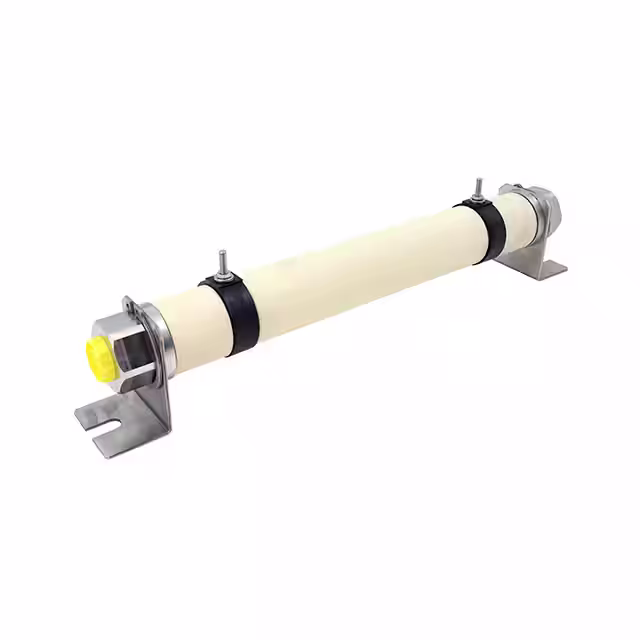

DCRF381781R60JBRES WATER COOLED 1.6OHM 5% 1500W |
3,894 |
|
Datasheet |
DCRF | Bulk | Active | Water Cooled | - | Wirewound | 1.6 Ohms | - | ±5% | 1500W | 100ppm/°C | -55°C ~ 120°C | Panel Mount |
|
|
FNPZR1000ARES SHUNT 0.1 OHM 0.05% 500W |
1,177 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 100 mOhms | - | ±0.05% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0500FRESISTOR SHUNT 0.05 OHM 1% 500W |
1,204 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 50 mOhms | - | ±1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR1000FRESISTOR SHUNT 0.1 OHM 1% 500W |
1,490 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 100 mOhms | - | ±1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0010ARES SHUNT 0.001 OHM 0.05% 500W |
2,837 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 1 mOhms | - | ±0.05% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR1000DRES SHUNT 0.1 OHM 0.5% 500W |
4,717 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 100 mOhms | - | ±0.5% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR1000BRES SHUNT 0.1 OHM 0.1% 500W |
2,072 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 100 mOhms | - | ±0.1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR5000BRES SHUNT 0.5 OHM 0.1% 500W |
3,211 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 500 mOhms | - | ±0.1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0010FRESISTOR SHUNT 0.001 OHM 1% 500W |
4,838 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 1 mOhms | - | ±1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0100FRESISTOR SHUNT 0.01 OHM 1% 500W |
1,559 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 10 mOhms | - | ±1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0100DRES SHUNT 0.01 OHM 0.5% 500W |
4,283 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 10 mOhms | - | ±0.5% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
|
|
FNPZR0100BRES SHUNT 0.01 OHM 0.1% 500W |
3,737 |
|
Datasheet |
FNP | Bulk | Active | Shunt, Battery | - | Metal Foil | 10 mOhms | - | ±0.1% | 500W | ±1ppm/°C | -55°C ~ 125°C | Chassis Mount |
