Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSBS8536L1250JK14250 UOHMS 5% 50W SHUNT, BATTERY Vishay Dale |
2,847 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
|
WSBS8536L1000JK14100 UOHMS 5% 50W SHUNT, BATTERY Vishay Dale |
4,082 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
WSBS8518L1250JKRESISTOR SHUNT 125 UOHM 5% 36W Vishay Dale |
1,371 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L1000JK40100 UOHMS 5% 50W SHUNT, BATTERY Vishay Dale |
4,660 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
WSBS8536L1250JK60250 UOHMS 5% 50W SHUNT, BATTERY Vishay Dale |
2,126 |
|
Datasheet |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBM8518L0500JKRESISTOR SHUNT 50 UOHM 5% 36W Vishay Dale |
2,573 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBM8518L0500JTRESISTOR SHUNT 50 UOHM 5% 36W Vishay Dale |
4,369 |
|
Datasheet |
Power Metal Strip® | Tray | Obsolete | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

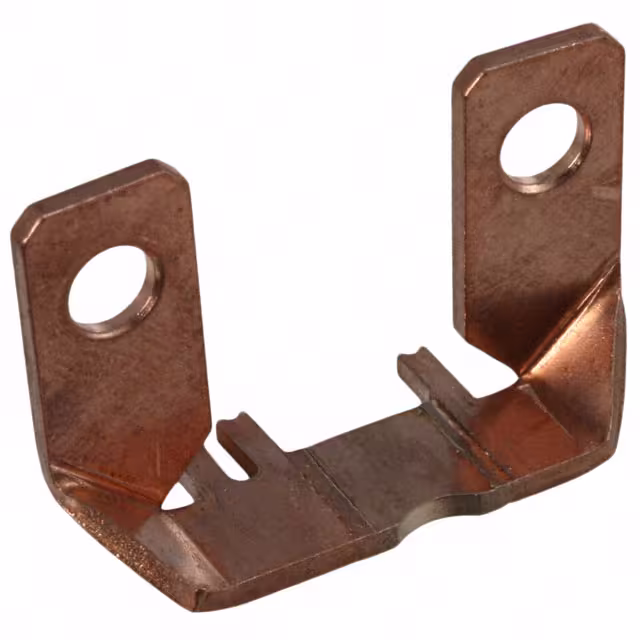

WSMS2906L3000JKRES SHUNT 0.0003 OHM 5% 3W Vishay Dale |
1,722 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 300 µOhms | - | ±5% | 3W | ±100ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
|

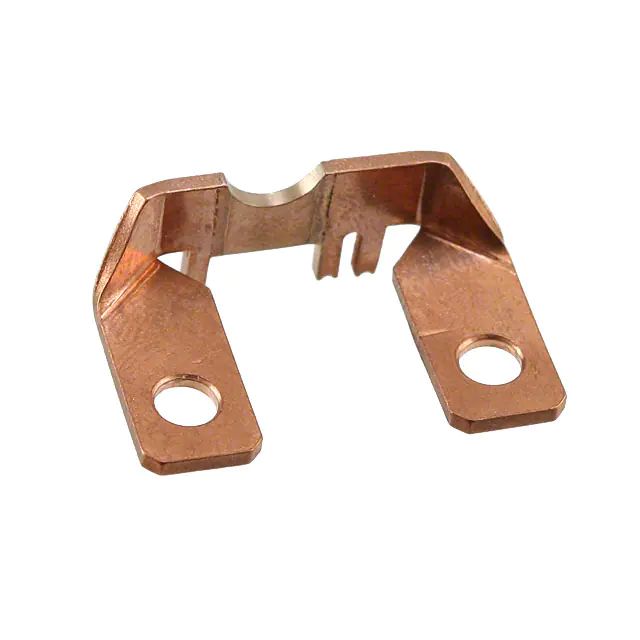

WSMS2906L4000JKRES SHUNT 0.0004 OHM 5% 3W Vishay Dale |
1,314 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 400 µOhms | - | ±5% | 3W | ±100ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
|

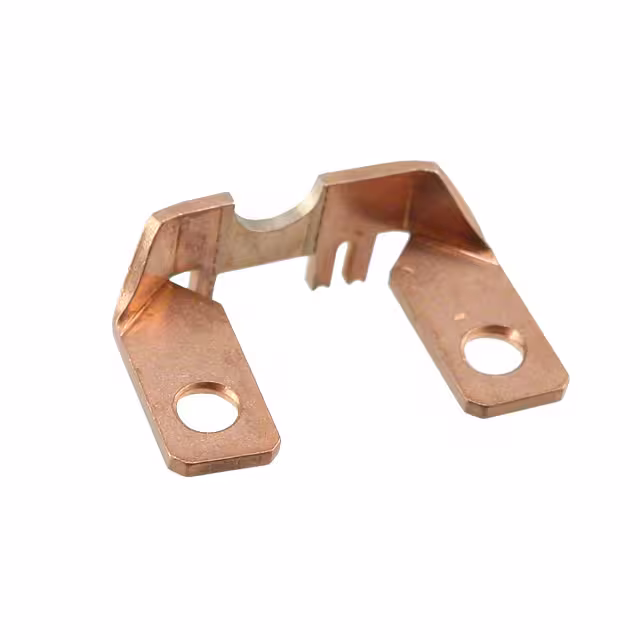

WSMS2906L5000JKRES SHUNT 0.0005 OHM 5% 3W Vishay Dale |
4,407 |
|
Datasheet |
Power Metal Strip® | Bulk | Obsolete | Shunt, Meter | Power Meters | Metal Element | 500 µOhms | - | ±5% | 3W | ±75ppm/°C | -65°C ~ 170°C | Shunt Fixture, 21mm Pitch |
