Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KABR400 10R JMETAL CLAD BRAKING RESISTOR 400W |
4,512 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 10 Ohms | - | ±5% | 400W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
CSM2F-7036-L050J01RESISTOR 50 UOHM 5% 50W |
1,863 |
|
Datasheet |
CSM2F-7036 | Bulk | Active | - | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Surface Mount |
|
KABR500 100R JMETAL CLAD BRAKING RESISTOR 500W |
1,041 |
|
Datasheet |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 100 Ohms | - | ±5% | 500W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
WSBS5216L1000KKRESISTOR SHUNT 100 UOHM 10% 12W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000KK14RESISTOR SHUNT 100 UOHM 10% 12W |
4,158 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1250JTRESISTOR SHUNT 125 UOHM 5% 36W |
2,477 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000KTRESISTOR SHUNT 100 UOHM 10% 12W |
4,784 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±10% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS5216L1000JKRESISTOR SHUNT 100 UOHM 5% 12W |
1,233 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L0500JT40RESISTOR SHUNT 50 UOHM 5% 36W |
1,268 |
|
Datasheet |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1250JK14RESISTOR SHUNT 125 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
SH8518F800AHEP8518 SHUNT 840A M3 |
1,795 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 36W | - | - | Through Hole |
|
|
SH8518F800APEP8518 SHUNT 840A PIN |
4,133 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 36W | - | - | Through Hole |
|
|
SH6918F700AHEP6918 SHUNT 700A M3 |
3,048 |
|
Datasheet |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 25W | - | - | Through Hole |
|
WSBS8518L1250JK20RESISTOR SHUNT 125 UOHM 5% 36W |
2,719 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

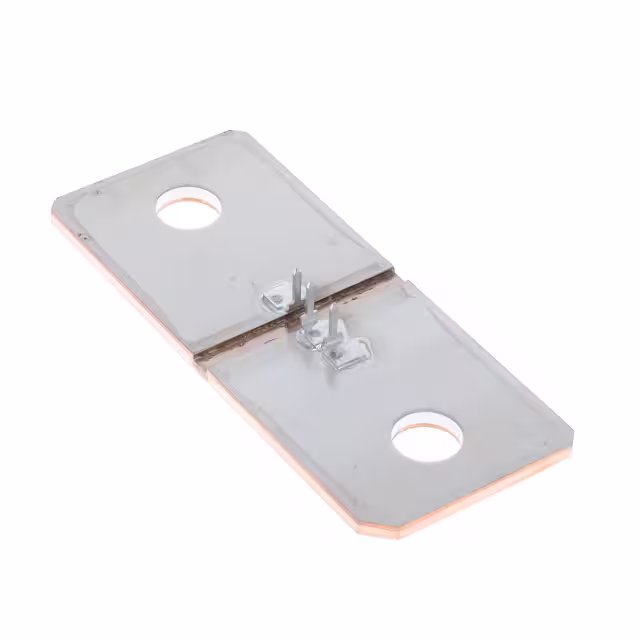

WSBS8536L0250JK8025 UOHMS 5% 50W SHUNT, BATTERY S |
4,329 |
|
Datasheet |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 25 µOhms | - | ±5% | 50W | ±20ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JKP3RESISTOR SHUNT 250 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JKP4RESISTOR SHUNT 50 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1000JKP4RESISTOR SHUNT 100 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JKP4RESISTOR SHUNT 125 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JKP4RESISTOR SHUNT 250 UOHM 5% 36W |
100 |
|
Datasheet |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
