Solenoids
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Duty Cycle | Voltage - Rated | Stroke Length | Power (Watts) | DC Resistance (DCR) | Bushing Thread | Mounting Type | Termination Style | Size / Dimension | Diameter - Shaft | Shaft Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F0444ASOLENOID PULL INTERMITTENT 24V Sumida America Inc. |
1,529 |
|
Datasheet |
L-82 | Bulk | Active | Electromechanical | Open Frame (Pull) | Intermittent | 24VDC | 0.750" (19.05mm) | 19 W | 30.3Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|

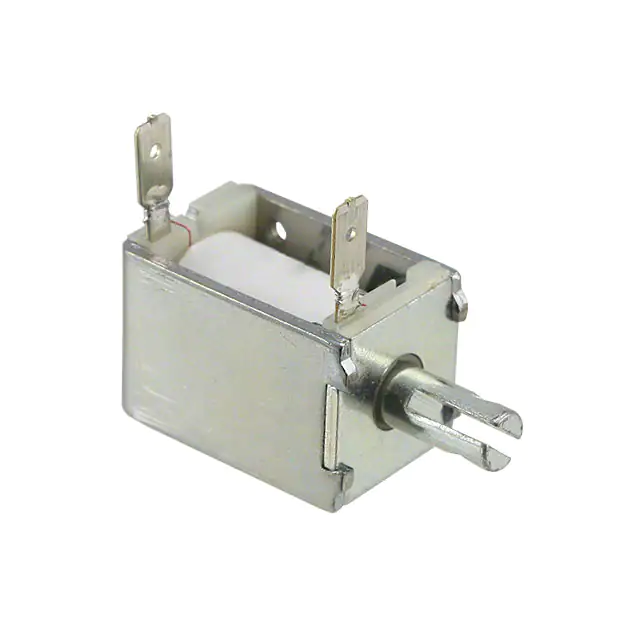

F0411ASOLENOID PULL CONTINUOUS 12V Sumida America Inc. |
1,431 |
|
Datasheet |
L-22 | Bulk | Active | Electromechanical | Open Frame (Pull) | Continuous | 12VDC | 0.500" (12.70mm) | 4 W | 36Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
G0402ASOLENOID LATCH PULL INTER 12V Sumida America Inc. |
2,188 |
|
Datasheet |
M-22 | Bulk | Active | Electromechanical | Open Frame Latching (Pull) | Intermittent | 12VDC | 0.250" (6.35mm) | 9 W | 16Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
G0401ASOLENOID LATCH PULL CONT 12V Sumida America Inc. |
2,295 |
|
Datasheet |
M-22 | Bulk | Active | Electromechanical | Open Frame Latching (Pull) | Continuous | 12VDC | 0.250" (6.35mm) | 4 W | 38Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|

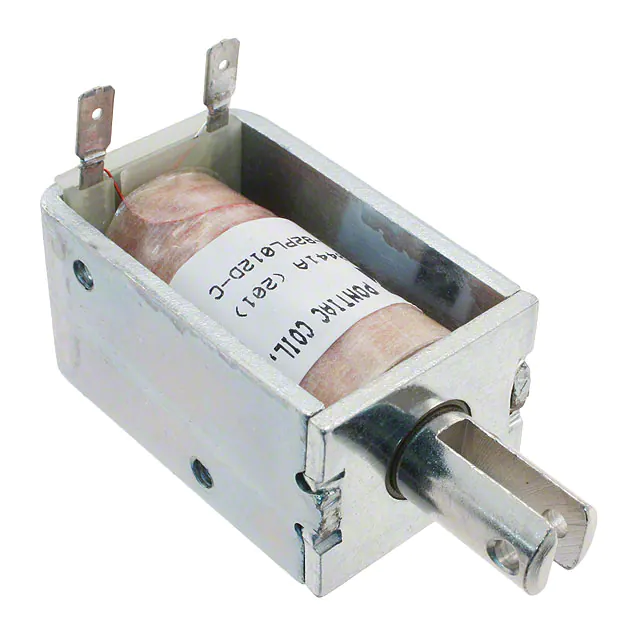

F0441ASOLENOID PULL CONTINUOUS 12V Sumida America Inc. |
2,166 |
|
Datasheet |
L-82 | Bulk | Active | Electromechanical | Open Frame (Pull) | Continuous | 12VDC | 0.750" (19.05mm) | 7.5 W | 19.2Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|
G0413ASOLENOID LATCH PULL PULSE 12V Sumida America Inc. |
4,997 |
|
Datasheet |
M-82 | Bulk | Active | Electromechanical | Open Frame Latching (Pull) | Pulse | 12VDC | 0.750" (19.05mm) | 70 W | 2Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|

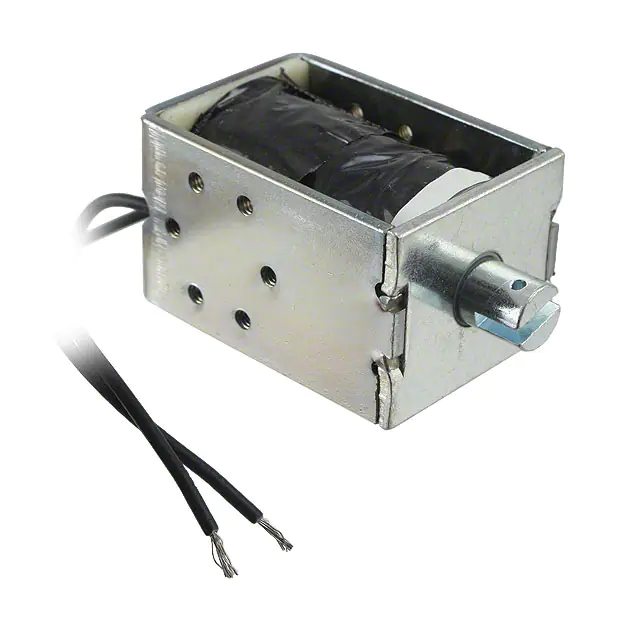

F0464ASOLENOID PULL INTERMITTENT 24V Sumida America Inc. |
2,234 |
|
Datasheet |
L-90 | Bulk | Active | Electromechanical | Open Frame (Pull) | Intermittent | 24VDC | 1.250" (31.75mm) | 48 W | 12Ohm | - | Chassis Mount | Wire Leads | 2.630" L x 1.560" W x 1.820" H (66.80mm x 39.62mm x 46.23mm) | 0.500" (12.70mm) | Clevis |
|
G0411ASOLENOID LATCH PULL CONT 12V Sumida America Inc. |
3,706 |
|
Datasheet |
M-82 | Bulk | Active | Electromechanical | Open Frame Latching (Pull) | Continuous | 12VDC | 0.750" (19.05mm) | 7 W | 20Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|
G0412ASOLENOID LATCH PULL INTER 12V Sumida America Inc. |
1,833 |
|
Datasheet |
M-82 | Bulk | Active | Electromechanical | Open Frame Latching (Pull) | Intermittent | 12VDC | 0.750" (19.05mm) | 20 W | 7.5Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|

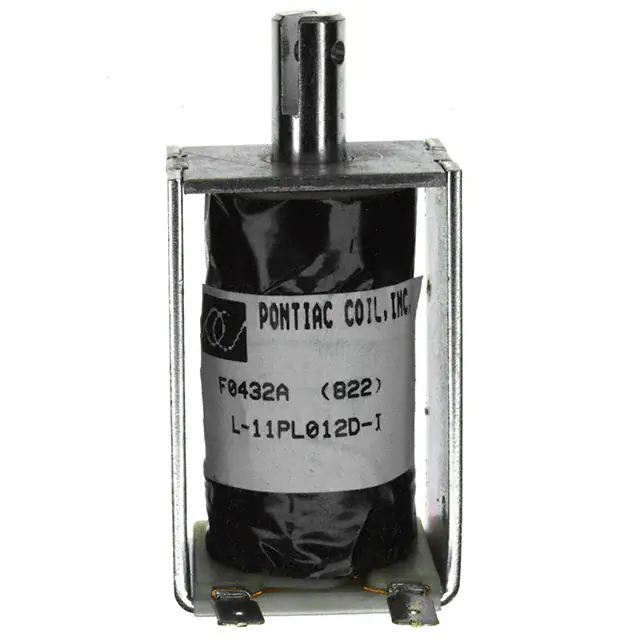

F0432ASOLENOID PULL INTERMITTENT 12V Sumida America Inc. |
2,687 |
|
Datasheet |
L-11 | Bulk | Active | Electromechanical | Open Frame (Pull) | Intermittent | 12VDC | 0.750" (19.05mm) | 19 W | 7.6Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm) | 0.312" (7.93mm) | Clevis |
