Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-1571005-3SWITCH SLIDE DPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,811 |
|
- |
S | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
SE1DGPCSWITCH SLIDE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,525 |
|
Datasheet |
SE | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof |
|
MHS233GSWITCH SLIDE DP3T 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,015 |
|
- |
MHS | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
3-1825010-9SWITCH SLIDE 6PDT 300MA 115V TE Connectivity ALCOSWITCH Switches |
1,587 |
|
Datasheet |
ASE | Bulk | Discontinued at Digi-Key | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 5.82mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
SL880SWITCH SLIDE SP8T 250MA 125V TE Connectivity ALCOSWITCH Switches |
1,891 |
|
Datasheet |
SL | Bulk | Obsolete | SP8T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 14.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
SE2DGPCSWITCH SLIDE DPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,322 |
|
Datasheet |
SE | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof |
|
|
1-1825289-0SWITCH SLIDE DP3T 300MA 125V TE Connectivity ALCOSWITCH Switches |
3,449 |
|
Datasheet |
MHS | Bulk | Active | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Baton | 10.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

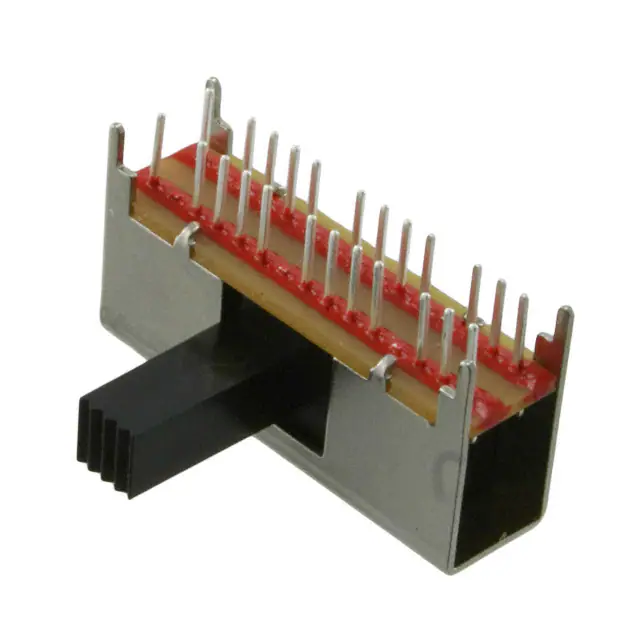

1825274-1SWITCH SLIDE 6P3T 300MA 125V TE Connectivity ALCOSWITCH Switches |
4,386 |
|
Datasheet |
MSS | Bulk | Obsolete | 6P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 12.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
SL1000SWITCH SLIDE SP10T 250MA 125V TE Connectivity ALCOSWITCH Switches |
1,979 |
|
Datasheet |
SL | Bulk | Obsolete | SP10T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 14.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1-1825010-6SWITCH SLIDE 4PDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,279 |
|
Datasheet |
ASE | Bulk | Discontinued at Digi-Key | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.82mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
