Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825199-1SWITCH SLIDE DP3T 300MA 125V |
3,450 |
|
Datasheet |
MSSA | Tray | Active | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 8.89mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA2350GSWITCH SLIDE DP3T 0.4VA 20V |
2,739 |
|
Datasheet |
MSSA | Bulk | Active | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.41mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
2-1825010-5SWITCH SLIDE 4P3T 300MA 115V |
2,349 |
|
Datasheet |
ASE | Bulk | Active | 4P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
1825200-2SWITCH SLIDE DP4T 0.4VA 20V |
2,526 |
|
Datasheet |
MSSA | Bulk | Active | DP4T | Shorting (MBB) | On-On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.37mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825202-4SWITCH SLIDE 4P3T 0.4VA 20V |
4,584 |
|
Datasheet |
MSSA | Tray | Active | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.39mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA2450RGSWITCH SLIDE DP4T 0.4VA 20V |
2,342 |
|
Datasheet |
MSSA | Bulk | Active | DP4T | Shorting (MBB) | On-On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.02mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825204-4SWITCH SLIDE 4P4T 0.4VA 20V |
4,960 |
|
Datasheet |
MSSA | Bulk | Active | 4P4T | Shorting (MBB) | On-On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.41mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825203-2SWITCH SLIDE 3P3T 0.4VA 20V |
4,772 |
|
Datasheet |
MSSA | Bulk | Active | 3P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.02mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA4350GSWITCH SLIDE 4P3T 0.4VA 20V |
3,983 |
|
Datasheet |
MSSA | Bulk | Active | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.41mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
2256103-2SWITCH SLIDE |
4,600 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

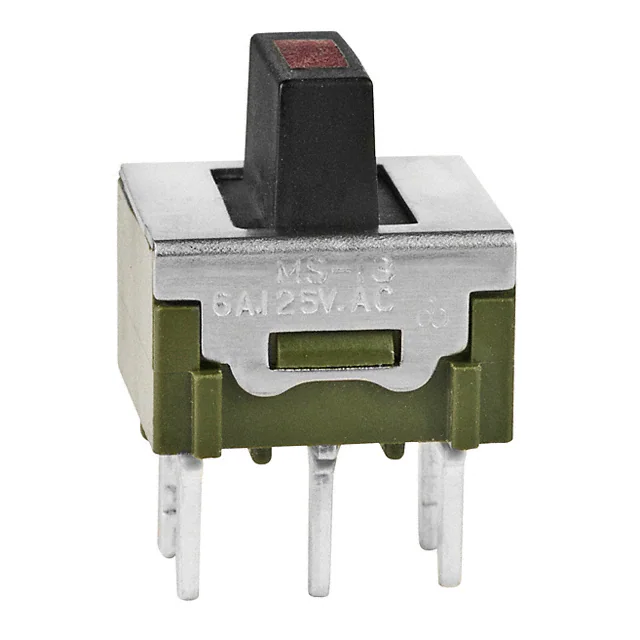

MS13LNW03CSWITCH SLIDE SPDT 6A 125V |
3,241 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
EG2309SWITCH SLIDE DP3T 100MA 30V |
2,052 |
|
Datasheet |
EG | Bulk | Obsolete | DP3T | Not Specified | On-On-On | 100mA (DC) | - | 30 V | Standard | - | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
GR5-626-0819SWITCH SLIDE DPDT 6A 125V |
3,461 |
|
Datasheet |
GR5 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC) | 125 V | - | Rocker Knob | 18.59mm | - | - | Panel Mount | PC Pin | - |
|
G-633S-0000SWITCH SLIDE SP3T 6A 125V |
2,148 |
|
Datasheet |
G | Bulk | Active | SP3T | Not Specified | On-On-Mom | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
G-1138S-0048SWITCH SLIDE DP4T 11A 125V |
3,357 |
|
Datasheet |
G | Bulk | Active | DP4T | Not Specified | On-On-On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GS01MCKESWITCH SLIDE SPDT 0.4VA 20V |
1,340 |
|
Datasheet |
GS | Bag | Obsolete | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.27mm | Beryllium Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
GS02MCKESWITCH SLIDE SPST 0.4VA 20V |
3,633 |
|
Datasheet |
GS | Bag | Obsolete | SPST | Not Specified | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.27mm | Beryllium Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
EG4211SWITCH SLIDE 4PDT 200MA 30V |
1,143 |
|
- |
EG | Bulk | Obsolete | 4PDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
EG4403SWITCH SLIDE 4P4T 200MA 30V |
1,819 |
|
- |
EG | Bulk | Obsolete | 4P4T | Not Specified | On-On-On-On | 200mA (DC) | - | 30 V | Standard | 9.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
EG6301SWITCH SLIDE 6P3T 300MA 30V |
4,663 |
|
- |
EG | Bulk | Obsolete | 6P3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Standard | 6.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
