Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S802C21S207DQSWITCH SLIDE DPDT 15A |
1,318 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On | 15A (AC) | - | - | Snap on Cap | - | Silver (Ag) | - | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | - |
|
L102011MS02GSWITCH SLIDE SPDT 4A 125V |
4,545 |
|
Datasheet |
L | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | - |
|
48BFSP1M2RTSWITCH SLIDE SPDT 0.4VA 20V |
1,769 |
|
Datasheet |
48B | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25136NLDBSWITCH SLIDE SPDT 100MA 30V |
2,214 |
|
Datasheet |
25000N | Tube | Active | SPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Flush | - | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
4M1-SSP1-S1/2-M2RESWITCH SLIDE SPDT 0.4VA 20V |
4,760 |
|
Datasheet |
4M | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Gold (Au) | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
4M1-SSP1-S1/2-M1RESWITCH SLIDE SPDT 0.4VA 20V |
4,160 |
|
- |
4M | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Copper Alloy | Gold over Nickel | Panel Mount | Solder Lug | - |
|
|
4M1-SSP1-S1/1-M2RESWITCH SLIDE SPDT 0.4VA 20V |
1,520 |
|
- |
4M | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Copper Alloy | Gold over Nickel | Through Hole | PC Pin | - |
|
|
4M1-SSP1-S1/2-M3QESWITCH SLIDE SPDT 5A 125V |
2,121 |
|
- |
4M | Bulk | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.10mm | Copper Alloy | Silver | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
|
1101M2S6CQE2SWITCH SLIDE SPDT 6A 120V |
1,046 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 12.32mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
25539NA6SWITCH SLIDE SPDT 4A 125V |
1,866 |
|
Datasheet |
25000N | Tube | Active | SPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25339NA6SWITCH SLIDE SPDT 4A 125V |
1,194 |
|
Datasheet |
25000N | Tube | Active | SPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25436NABSWITCH SLIDE SPDT 4A 125V |
3,372 |
|
Datasheet |
25000N | Tube | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25539NASWITCH SLIDE SPDT 4A 125V |
4,277 |
|
Datasheet |
25000N | Tube | Active | SPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25439NAHSWITCH SLIDE SPDT 4A 125V |
2,271 |
|
Datasheet |
25000N | Tube | Active | SPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
ASE2D-5M-10-ZSWITCH SLIDE DPDT 50MA 60V |
1,526 |
|
Datasheet |
ASE | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 60 V | 60 V | Standard | 2.80mm | - | Gold | Through Hole, Right Angle | PC Pin | Washable |
|

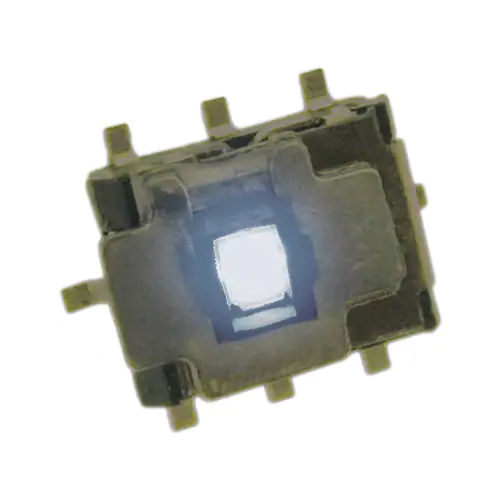

EGL2290WSWITCH SLIDE DPDT 300MA 6V |
3,815 |
|
Datasheet |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, White |
|
|
L204051MS02QESWITCH SLIDE DP4T 4A 125V |
1,499 |
|
Datasheet |
L | Bulk | Active | DP4T | Not Specified | On-On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 7.92mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
S202131MS02QESWITCH SLIDE DPDT 6A 125V |
3,052 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 6A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals, No Marking |
|
|
L203031MS02QESWITCH SLIDE DP3T 4A 125V |
1,761 |
|
Datasheet |
L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 9.53mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1101M2S5V4ME2SWITCH SLIDE SPDT 6A 120V |
2,649 |
|
Datasheet |
1000 | Bulk | Obsolete | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 9.04mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
