Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500SSP1S1M6REBSWITCH SLIDE SPDT 0.4VA 20V |
3,787 |
|
Datasheet |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Panel Mount, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1203A3VQEASWITCH SLIDE DPDT 5A 120V |
4,853 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.04mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
1203A3HQEASWITCH SLIDE DPDT 5A 120V |
3,907 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.40mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

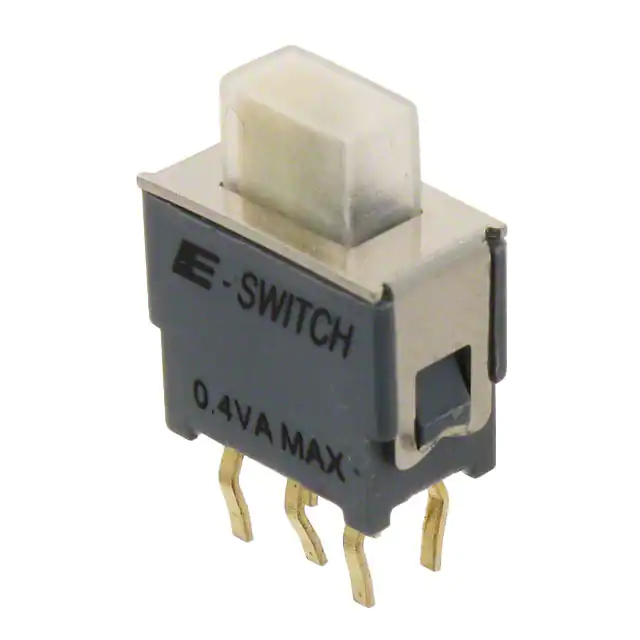

500RDP1S1M2RESWITCH SLIDE DPDT 0.4VA 20V |
3,977 |
|
Datasheet |
500R | Tray | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | - | - | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
500ASSP3SM6QESWITCH SLIDE SPDT 3A 120V |
3,162 |
|
Datasheet |
500A | Tape & Reel (TR) | Active | SPDT | Not Specified | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | Epoxy Sealed Terminals |
|
HSS208KSWITCH SLIDE DPST 8A 125V |
2,881 |
|
Datasheet |
HSS | Bulk | Obsolete | DPST | Not Specified | On-Off | 8A (AC) | 125 V | - | Baton | 16.00mm | - | - | Panel Mount | Quick Connect - 0.187" (4.7mm) | - |
|
|
500SDP3S2M2QEBSWITCH SLIDE DPDT 5A 120V |
3,917 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Panel Mount | PC Pin | Epoxy Sealed Terminals |
|
|
SS312MAH4-RSWITCH SLIDE SPDT 0.4VA 28V |
1,946 |
|
Datasheet |
SS3 | Tape & Reel (TR) | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
1203A4BREBSWITCH SLIDE DPDT 0.4VA 20V |
4,978 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.60mm | Copper Alloy | Gold | Panel Mount | Solder Lug | - |
|
|
1201A3DREBSWITCH SLIDE DPDT 0.4VA 20V |
2,054 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.40mm | Copper Alloy | Gold | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
|
|
1203A4CREASWITCH SLIDE DPDT 0.4VA 20V |
2,337 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.60mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
CMS-2314ASWITCH SLIDE DP3T 0.1A 12V |
4,522 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | J Lead | - |
|
|
CMS-2312BSWITCH SLIDE DP3T 0.1A 12V |
2,599 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
CMS-2314BSWITCH SLIDE DP3T 0.1A 12V |
2,430 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
CMS-2314CSWITCH SLIDE DP3T 0.1A 12V |
3,355 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
CMS-2312CSWITCH SLIDE DP3T 0.1A 12V |
4,484 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
CMS-2312ASWITCH SLIDE DP3T 0.1A 12V |
3,356 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | J Lead | - |
|
|
500SSP2S4M6QEASWITCH SLIDE SPDT 5A 120V |
2,329 |
|
Datasheet |
500 | Bulk | Active | SPDT | Not Specified | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1203A2DREBSWITCH SLIDE DPDT 0.4VA 20V |
4,576 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 7.24mm | Copper Alloy | Gold | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
|
|
1203A1DREBSWITCH SLIDE DPDT 0.4VA 20V |
2,896 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
