Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1617086-2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
1,263 |
|
Datasheet |
3SBM, CII | Bulk | Discontinued at Digi-Key | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/31 |
|
|
1617091-3RELAY GEN PURPOSE DPDT 2A 2.7V TE Connectivity Aerospace, Defense and Marine |
2,050 |
|
Datasheet |
LS, CII | Bulk | Active | Through Hole | 2.7VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 60 mA | Latching, Dual Coil | - | PC Pin | - | - | 5 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
3SBH1149A2RELAY GEN PURPOSE 4PDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
1,460 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 104 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|

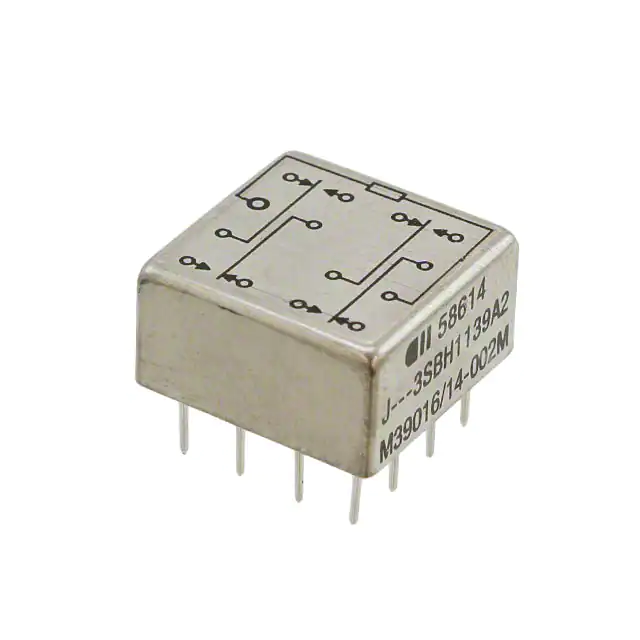

3SBH1139A2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,151 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/14 |
|
|
3SBH1130A2RELAY GENERAL PURPOSE 4PDT 2A 6V TE Connectivity Aerospace, Defense and Marine |
3,376 |
|
Datasheet |
3SBH, CII | Bulk | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 214 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
6-1617090-8RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Aerospace, Defense and Marine |
3,426 |
|
Datasheet |
LS, CII | Bulk | Active | - | - | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | - | Latching, Dual Coil | - | - | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
3SBM6004V2RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,004 |
|
Datasheet |
3SBM, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 27.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
4-1617631-1RELAY GEN PURPOSE 4PDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,742 |
|
Datasheet |
3SBM, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 27.2 mA | Latching, Dual Coil | Diode | PC Pin | Sealed - Hermetically | - | 13.5 VDC | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/31 |
|
|
3SBC2093A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,230 |
|
- |
3SBC, CII | Bulk | Discontinued at Digi-Key | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/37 |
|
|
3-1617090-1RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Aerospace, Defense and Marine |
2,697 |
|
Datasheet |
LS, CII | Bulk | Active | - | - | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | - | Latching, Dual Coil | - | - | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
