Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23101D 102A201RELAY GEN PURPOSE SPDT 1.25A 3V |
3,121 |
|
Datasheet |
V23101, AXICOM | Tube | Discontinued at Digi-Key | Through Hole | 3VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.3 VDC | 0.3 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
G6KU-2G-Y-TR DC12RELAY TELECOM DPDT 1A 12V |
3,960 |
|
Datasheet |
G6K | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 9.1 mA | Latching, Single Coil | - | J Lead | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|

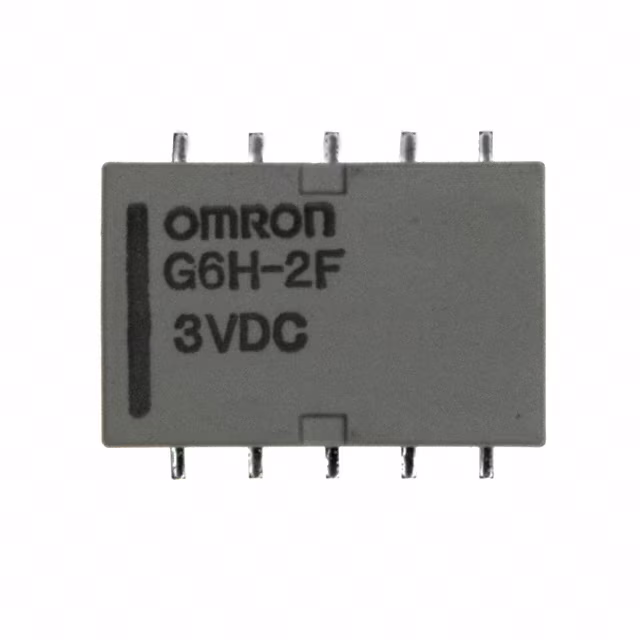

G6H-2F-DC3RELAY TELECOM DPDT 1A 3V |
1,438 |
|
Datasheet |
G6H | Tray | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 3 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6H-2-F-DC6RELAY TELECOM DPDT 1A 6V |
2,310 |
|
Datasheet |
G6H | Tube | Obsolete | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 23.3 mA | Non Latching | - | Gull Wing | - | - | 4.5 VDC | 0.6 VDC | 3 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6H-2-F-DC9RELAY TELECOM DPDT 1A 9V |
2,236 |
|
Datasheet |
G6H | Tube | Obsolete | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | Gull Wing | - | - | 6.75 VDC | 0.9 VDC | 3 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TQ2SS-48V-WRELAY TELECOM DPDT 2A 48V |
3,250 |
|
Datasheet |
TQ | Tape & Reel (TR) | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 125VA, 220W | 6.3 mA | Non Latching | - | Gull Wing | - | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TQ2SS-48V-YRELAY TELECOM DPDT 2A 48V |
4,544 |
|
Datasheet |
TQ | Tape & Reel (TR) | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 125VA, 220W | 6.3 mA | Non Latching | - | Gull Wing | - | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TQ2SA-48V-WRELAY TELECOM DPDT 2A 48V |
3,969 |
|
Datasheet |
TQ | Tape & Reel (TR) | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 125VA, 220W | 6.3 mA | Non Latching | - | Gull Wing | - | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
TX2SA-L-24V-TH-ZRELAY GEN PURPOSE DPDT 2A 24V |
1,216 |
|
Datasheet |
TX-TH | Bulk | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5.8 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 3 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TX2SA-L-24V-TH-XRELAY GEN PURPOSE DPDT 2A 24V |
1,174 |
|
Datasheet |
TX-TH | Bulk | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5.8 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 3 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TQ2SA-48V-YRELAY TELECOM DPDT 2A 48V |
1,220 |
|
Datasheet |
TQ | Tape & Reel (TR) | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 125VA, 220W | 6.3 mA | Non Latching | - | Gull Wing | - | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
G6H-2-DC24RELAY TELECOM DPDT 1A 24V |
1,581 |
|
Datasheet |
G6H | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 3 ms | 2 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6E-134PL-ST-USDC9RELAY GENERAL PURPOSE SPDT 2A 9V |
3,244 |
|
Datasheet |
G6E | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 44.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6KU-2F-Y DC24RELAY TELECOM DPDT 1A 24V |
2,476 |
|
Datasheet |
G6K | Tray | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 4.6 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2SS-48V-WRELAY TELECOM DPDT 2A 48V |
1,650 |
|
Datasheet |
TX | Bulk | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2SA-LT-24V-XRELAY TELECOM DPDT 2A 24V |
3,821 |
|
Datasheet |
TX-S | Bulk | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 8.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
TX2SS-48V-YRELAY TELECOM DPDT 2A 48V |
1,156 |
|
Datasheet |
TX | Bulk | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TXD2SA-L-24V-YRELAY GEN PURPOSE DPDT 2A 24V |
1,320 |
|
- |
TX-D | Bulk | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 7.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TX2SA-48V-WRELAY TELECOM DPDT 2A 48V |
2,129 |
|
Datasheet |
TX | Bulk | Active | Surface Mount | 48VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 36 VDC | 4.8 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2SA-LT-24V-1-XRELAY TELECOM DPDT 1A 24V |
1,686 |
|
Datasheet |
TX-S | Bulk | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220W | 8.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
