Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77P36-01-1-02NSWITCH ROTARY 2POS 50MA 115V Grayhill Inc. |
192 |
|
Datasheet |
77 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|

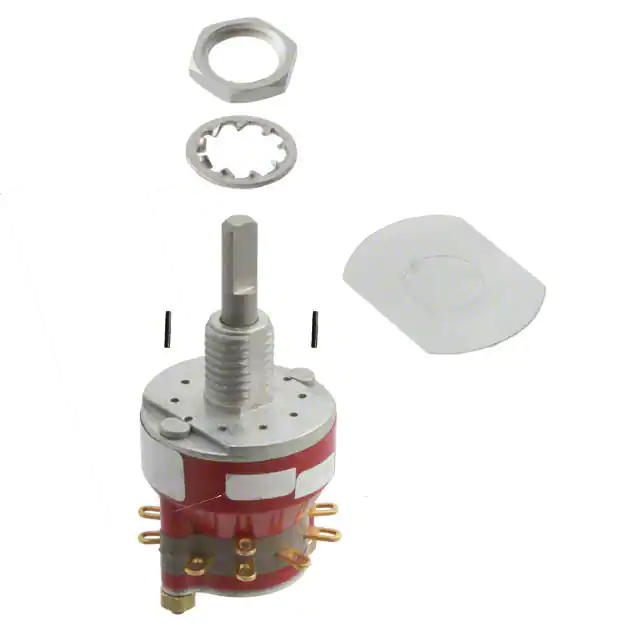

71AD36-01-2-AJNSWITCH ROTARY 2-5POS 250MA 115V Grayhill Inc. |
4,717 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
56BS36-01-1-02NSWITCH ROTARY 2POS 200MA 115V Grayhill Inc. |
372 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56D30-01-1-AJSSWITCH ROTARY 2-12POS 200MA 115V Grayhill Inc. |
1,245 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56SP30-01-2-04SSWITCH ROTARY 4POS 200MA 115V Grayhill Inc. |
142 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
56BP36-01-1-10S-FSWITCH ROTARY 10POS 200MA 115V Grayhill Inc. |
111 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
51M30-01-1-08NSWITCH ROTARY 8POS 150MA 115V Grayhill Inc. |
3,471 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51M30-01-1-03NSWITCH ROTARY 3POS 150MA 115V Grayhill Inc. |
4,127 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51MBP30-01B04SSWITCH ROTARY 4POS 150MA 115V Grayhill Inc. |
2,266 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
51SPT30-01-2-05SSWITCH ROTARY 5POS 150MA 115V Grayhill Inc. |
4,452 |
|
Datasheet |
51 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
