Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44M30-07-1-02NSWITCH ROTARY 2POS 1A 115V Grayhill Inc. |
3,325 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 7 | 1 | SPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 85.16mm |
|
|
71MBS30-05D03SSWITCH ROTARY 3POS 250MA 115V Grayhill Inc. |
4,944 |
|
- |
71 | Bulk | Active | 3 | Fixed | 5 | 3 | 3P3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 41.48mm |
|
|
44HS30-04-1-09NSWITCH ROTARY 9POS 1A 115V Grayhill Inc. |
1,744 |
|
- |
44 | Bulk | Active | 9 | Fixed | 4 | 1 | SP9T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 52.40mm |
|
|
42A36-04-1-03NSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
4,890 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 4 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 52.40mm |
|
|
44H30-01-4-03NSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
2,220 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44MBS60-04C03NSWITCH ROTARY 3POS 5A 115V Grayhill Inc. |
3,429 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | - | 2 | DP3T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | - |
|
|
44HS45-03-1-07NSWITCH ROTARY 7POS 5A 115V Grayhill Inc. |
1,484 |
|
- |
44 | Bulk | Active | 7 | Fixed | 3 | 1 | SP7T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 43.61mm |
|
|
42HS36-03-2-05NSWITCH ROTARY 5POS 1A 115V Grayhill Inc. |
4,137 |
|
- |
42 | Bulk | Active | 5 | Fixed | 3 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 43.61mm |
|

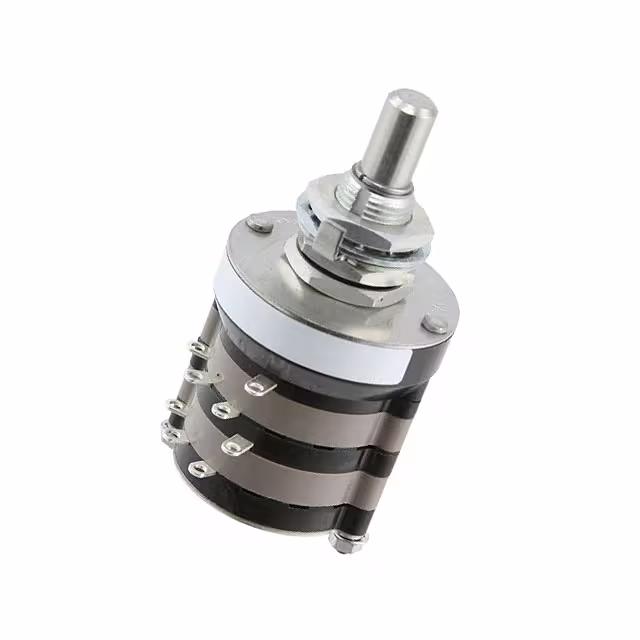

44HS30-02-1-03NSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
3,230 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
44M45-02-4-02NSWITCH ROTARY 2POS 5A 115V Grayhill Inc. |
2,743 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 2 | 4 | 4PDT | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
