Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50M36-01-2-02NSWITCH ROTARY 2POS 150MA 115V Grayhill Inc. |
1,683 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
75AP36-01-1-04NSWITCH ROTARY 4POS 200MA 115V Grayhill Inc. |
4,483 |
|
Datasheet |
75 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | Flush | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Through Hole | PC Pin | - | 12.42mm |
|
77P36-01-1-10NSWITCH ROTARY 10POS 50MA 115V Grayhill Inc. |
3,569 |
|
Datasheet |
77 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
50MT90-01-2-02NSWITCH ROTARY 2POS 150MA 115V Grayhill Inc. |
1,383 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|

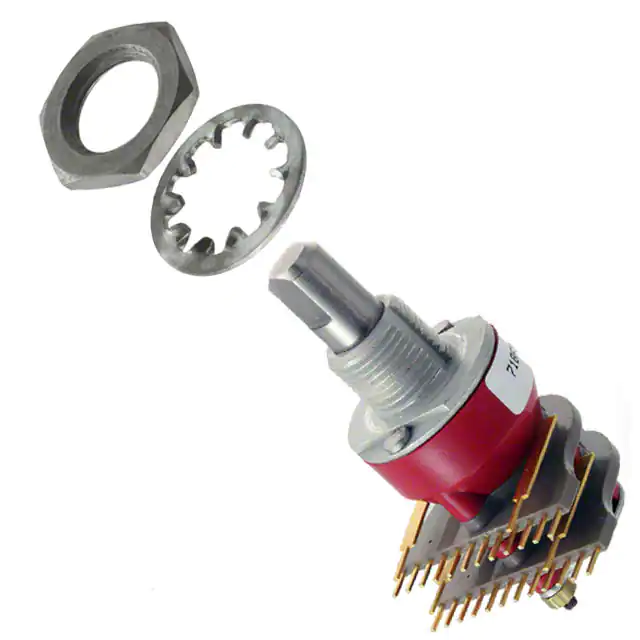

71BF30-02-2-06SSWITCH ROTARY 6POS 250MA 115V Grayhill Inc. |
2,794 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | 2 | DP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|
71BDF36-02-2-AJNSWITCH ROTARY 2-5POS 250MA 115V Grayhill Inc. |
3,173 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|
|
24878-03NSWITCH ROTARY 3POS 1A 115V Grayhill Inc. |
4,641 |
|
Datasheet |
24 | Tube | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount, Through Hole | PC Pin | - | 17.45mm |
|
|
19001-02ULSWITCH ROTARY 2POS 15A 120V Grayhill Inc. |
2,830 |
|
Datasheet |
19 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
|
24878-05NSWITCH ROTARY 5POS 1A 115V Grayhill Inc. |
1,479 |
|
Datasheet |
24 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount, Through Hole | PC Pin | - | 17.45mm |
|
|
51PT22-01-1-16NSWITCH ROTARY 16POS 150MA 115V Grayhill Inc. |
1,557 |
|
Datasheet |
51 | Bulk | Active | 16 | Continuous | 1 | 1 | SP16T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
