Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51PT30-01-3-04NSWITCH ROTARY 4POS 150MA 115V Grayhill Inc. |
1,036 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
|
|
50MP36-01-2-02NSWITCH ROTARY 2POS 150MA 115V Grayhill Inc. |
3,739 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50MP36-01-2-05NSWITCH ROTARY 5POS 150MA 115V Grayhill Inc. |
2,588 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
71BD36-02-1-AJSSWITCH ROTARY 2-10POS 250MA 115V Grayhill Inc. |
4,721 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
71AD36-02-1-AJSSWITCH ROTARY 2-10POS 250MA 115V Grayhill Inc. |
2,843 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|

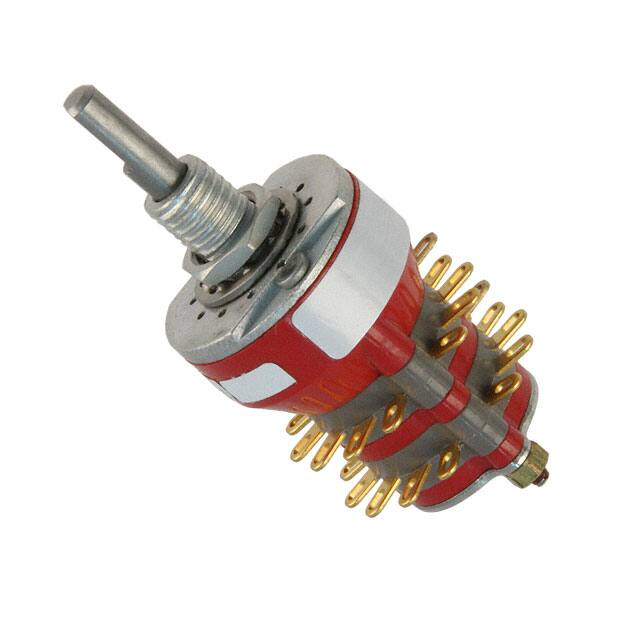

71AD30-02-1-AJSSWITCH ROTARY 2-12POS 250MA 115V Grayhill Inc. |
3,051 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
50CP45-01-2-04NSWITCH ROTARY 4POS 150MA 115V Grayhill Inc. |
2,080 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50M45-01-1-05NSWITCH ROTARY 5POS 150MA 115V Grayhill Inc. |
1,278 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51S30-01-4-02NSWITCH ROTARY 2POS 150MA 115V Grayhill Inc. |
4,118 |
|
Datasheet |
51 | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51S30-01-4-03NSWITCH ROTARY 3POS 150MA 115V Grayhill Inc. |
2,851 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
