Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS16KN-1183A-DUPOT 10K OHM 1/10W LINEAR |
150 |
|
- |
F16K | Bulk | Active | 10k | ±10% | 0.1W, 1/10W | - | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | - | Solder Lug | Knurled and Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
RD925G-QA1-B203POT 20K OHM 1/20W CARBON LINEAR |
130 |
|
Datasheet |
- | Bulk | Active | 20k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
RD925S-QA1-A103POT 10K OHM 1/40W CARBON LOG |
197 |
|
Datasheet |
- | Bulk | Active | 10k | ±20% | 0.025W, 1/40W | Rotary, SPST | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
1624204-2POT CARBON FILM 0.4W |
300 |
|
Datasheet |
23 | Bulk | Active | 1M | ±20% | 0.4W | Rotary, DPST | 1.0 | - | Linear | 1 | User Defined | 0.5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
P16NP102MAB15POT 1K OHM 1W CERMET LINEAR |
4,205 |
|
Datasheet |
P16 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
RV6NAYSD501APOT 500 OHM 1/2W CARBON LINEAR |
3,138 |
|
Datasheet |
RV6 | Bulk | Active | 500 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
6639S-1-103POT 10K OHM 1W PLASTIC LINEAR |
2,951 |
|
Datasheet |
6639 | Bulk | Active | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
M-1303 10KPOT 10K OHM 3/4W WIREWOUND LIN |
3,586 |
|
Datasheet |
M-13 | Bulk | Active | 10k | ±5% | 0.75W, 3/4W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
3547S-1AA-103APOT 10K OHM 1W WIREWOUND LINEAR |
2,912 |
|
Datasheet |
3547 | Tray | Active | 10k | ±3% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P16NM103MAB15POT 10K OHM 1W CERMET LINEAR |
4,233 |
|
Datasheet |
P16 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
535B1502JCPOT 5K OHM 1.5W WIREWOUND LINEAR |
1,187 |
|
Datasheet |
535 | Bulk | Active | 5k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

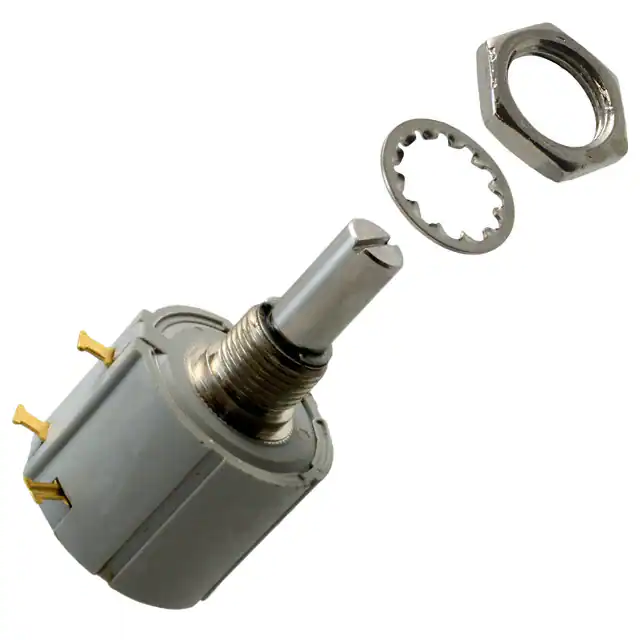

7286R10KL.25POT 10K OHM 2W WIREWOUND LINEAR |
3,764 |
|
Datasheet |
7280 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
SP22E-5KPOT 5K OHM 1W PLASTIC LINEAR |
2,655 |
|
Datasheet |
SP22E | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±400ppm/°C | 320° | Conductive Plastic | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
SP22E-10KPOT 10K OHM 1W PLASTIC LINEAR |
2,475 |
|
Datasheet |
SP22E | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±400ppm/°C | 320° | Conductive Plastic | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
6538S-1-502POT 5K OHM 1W PLASTIC LINEAR |
1,400 |
|
Datasheet |
6538 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
JT30-120-500POT LINEAR |
1,237 |
|
Datasheet |
JT30 | Tray | Active | - | - | - | None | 1.0 | Low Torque | Linear | 1 | User Defined | - | Continuous | - | Wire Leads | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
860B1202POT 2K OHM 8W WIREWOUND LINEAR |
1,411 |
|
Datasheet |
860 | Box | Active | 2k | ±3% | 8W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

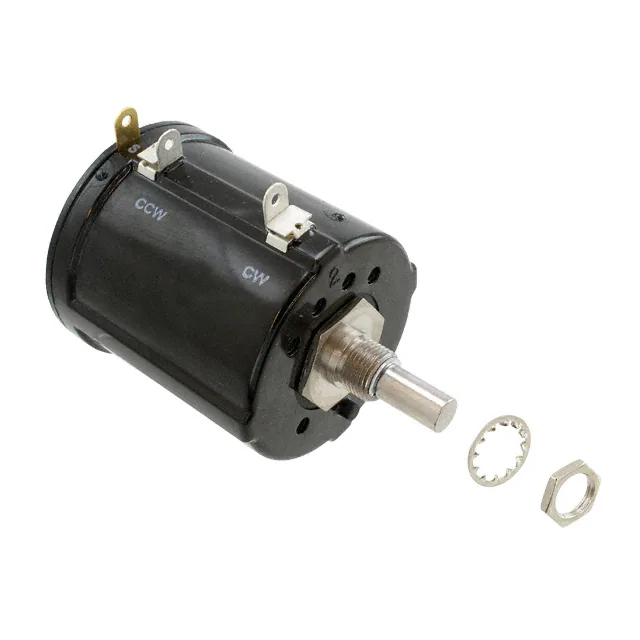

AR10KL.25POT 10K OHM 5W WIREWOUND LINEAR |
2,692 |
|
Datasheet |
A | Bulk | Active | 10k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | 130ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.811" (20.60mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

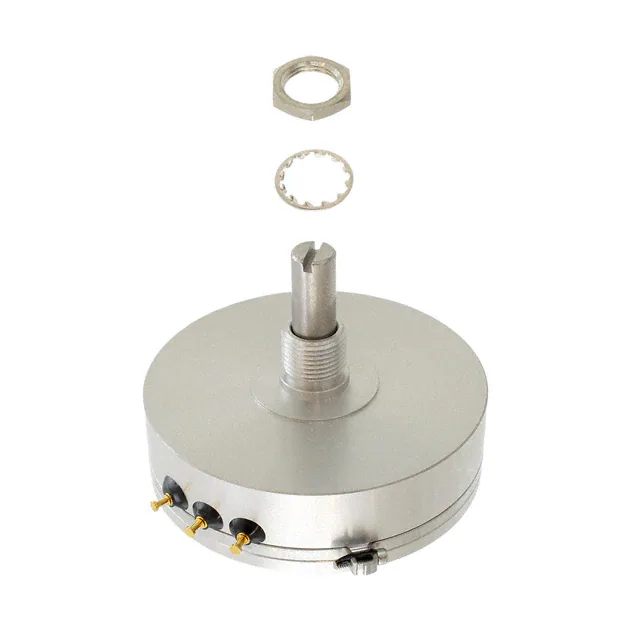

6674S-1-502POT 5K OHM 2W PLASTIC LINEAR |
1,546 |
|
Datasheet |
6674 | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | 5% | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
152S502POT 5K OHM 2W WIREWOUND LINEAR |
4,145 |
|
Datasheet |
152 | Box | Active | 5k | ±3% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 360° | Wirewound | Solder Lug | Round | 0.500" (12.70mm) | 0.125" (3.18mm) | - | Servo Mount |
