Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3549H-1AA-203BPOT 20K OHM 2W HYBRITRON LINEAR |
3,820 |
|
Datasheet |
Hybritron® 3549 | Tray | Active | 20k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
SW22E-10KPOT 10K OHM 0.5W WIREWOUND LIN |
4,092 |
|
Datasheet |
SW22E | Bulk | Active | 10k | ±3% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | 20ppm/°C | 320° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
LCP8T-10-5KLINEAR POT 5K OHM 0.2W PLASTIC |
2,605 |
|
Datasheet |
LCP8P | Bulk | Active | 5k | ±15% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±400ppm/°C | - | Conductive Plastic | Wire Leads | Round | 0.393" (9.98mm) | 0.079" (2.01mm) | - | Chassis Mount |
|

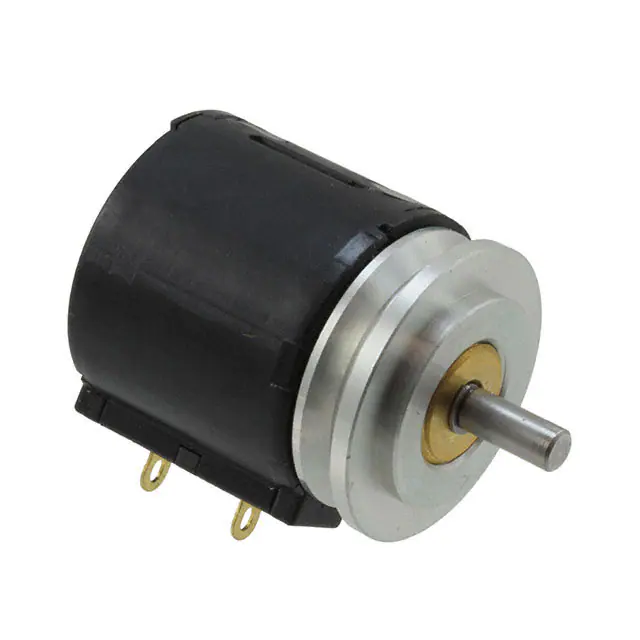

3549H-1AF-103APOT 10K OHM 2W HYBRITRON LINEAR |
4,624 |
|
Datasheet |
Hybritron® 3549 | Tray | Active | 10k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Round | 0.375" (9.53mm) | 0.125" (3.18mm) | - | Servo Mount |
|
357B2103MAB251S22POT 10K OHM 1W PLASTIC LINEAR |
2,660 |
|
Datasheet |
357 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
JT30-340-C00POT LINEAR |
1,603 |
|
Datasheet |
JT30 | Tray | Active | - | - | - | None | 1.0 | Low Torque | Linear | 1 | User Defined | - | Continuous | - | Wire Leads | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
|
|
LCP8S-10-10KLINEAR POT 10K OHM 0.2W PLASTIC |
110 |
|
Datasheet |
LCP8P | Bulk | Active | 10k | ±15% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±400ppm/°C | - | Conductive Plastic | Wire Leads | Round | 0.393" (9.98mm) | 0.079" (2.01mm) | - | Chassis Mount |
|
|
LCP8S-10-5KLINEAR POT 5K OHM 0.2W PLASTIC |
2,425 |
|
Datasheet |
LCP8P | Bulk | Active | 5k | ±15% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±400ppm/°C | - | Conductive Plastic | Wire Leads | Round | 0.393" (9.98mm) | 0.079" (2.01mm) | - | Chassis Mount |
|
6538S-1-102POT 1K OHM 1W PLASTIC LINEAR |
3,372 |
|
Datasheet |
6538 | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
P13SMNFGS472MAPOT 4.7K OHM 1.5W CERMET LINEAR |
3,843 |
|
Datasheet |
P13SM | Bulk | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 310° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
MH22B-10-1KPOT 1K 10-TURN 2W HYBRID LINEAR |
2,427 |
|
Datasheet |
MH22B | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybrid | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
MH22B-5-5KPOT 5K 5-TURN 1W HYBRID LINEAR |
3,158 |
|
Datasheet |
MH22B | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 1800° | Hybrid | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
CLU2521EPOT 2.5K OHM 2W CARBON LINEAR |
3,508 |
|
Datasheet |
CLU | Box | Active | 2.5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
MH22B-10-10KPOT 10K 10-TURN 2W HYBRID LINEAR |
3,001 |
|
Datasheet |
MH22B | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybrid | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
RHS25R25 WATT MODEL H RHEOSTAT 10% |
123 |
|
Datasheet |
H | Bulk | Active | 25 | ±10% | 25W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
MH22B-3-5KPOT 5K 3-TURN 1W HYBRID LINEAR |
3,649 |
|
Datasheet |
MH22B | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 1080° | Hybrid | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
LCP12A-50-10KLINEAR POT 10K OHM 0.7W PLASTIC |
4,646 |
|
Datasheet |
LCP12 | Bulk | Active | 10k | ±20% | 0.7W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±400ppm/°C | - | Conductive Plastic | PC Pins | Knurled | 0.750" (19.05mm) | 0.125" (3.18mm) | 4-40 | Panel Mount |
|
3400S-1-204LPOT 200K OHM 5W WIREWOUND LINEAR |
1,535 |
|
Datasheet |
3400 | Bulk | Active | 200k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
RUS500E-B1000W MOD U RHEO 10% BULK PACK |
1,370 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1610N-QB1-A104POT 100k OHM 0.06W LOG |
2,826 |
|
Datasheet |
- | Bulk | Active | 100k | ±20% | 0.06W | None | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Panel Mount |
