Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P11A1Q0EJSX00473MAPOT 47K OHM 1/2W PLASTIC LINEAR |
3,623 |
|
Datasheet |
P11A | Box | Active | 47k | ±20% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
P11A1Q0EJSX20103MAPOT 10K OHM 1/2W PLASTIC LINEAR |
2,506 |
|
Datasheet |
P11A | Box | Active | 10k | ±20% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
PE30L0FL472MABCV1MPOT |
4,663 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P11A3V0CCRY00103MLPOT 10K OHM 1/4W PLASTIC LOG |
2,797 |
|
Datasheet |
P11A | Box | Active | 10k | ±20% | 0.25W, 1/4W | - | 1.0 | - | Logarithmic | 3 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Round | 1.122" (28.50mm) | 0.118" (3.00mm), 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1A0BGSX00103MAPOT 10K OHM 1W CERMET LINEAR |
2,994 |
|
Datasheet |
P11S | Box | Active | 10k | ±20% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
P30LLLFLR102KAPOT |
1,582 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P11S1T0AASW20103MAPOT 10K OHM 1W CERMET LINEAR |
1,930 |
|
Datasheet |
P11S | Box | Active | 10k | ±20% | 1W | - | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.374" (9.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S1T0AASW00223MAPOT 22K OHM 1W CERMET LINEAR |
3,902 |
|
Datasheet |
P11S | Box | Active | 22k | ±20% | 1W | - | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.374" (9.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S1T0AASW00105MAPOT 1M OHM 1W CERMET LINEAR |
4,719 |
|
Datasheet |
P11S | Box | Active | 1M | ±20% | 1W | - | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.374" (9.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
3500S-1-202LPOT 2K OHM 2W WIREWOUND LINEAR |
2,893 |
|
Datasheet |
3500 | Tray | Active | 2k | ±3% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.33mm) | 3/8-32 | Panel Mount |
|
287T420S253A11POT 25K OHM 2W CERMET LINEAR |
4,187 |
|
Datasheet |
287 | Tray | Active | 25k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Cermet | Solder Lug | Slotted | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P11A6V0FLSX00223KAPOT 22K OHM 1/2W PLASTIC LINEAR |
3,308 |
|
Datasheet |
P11A | Box | Active | 22k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Linear | 6 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1QAEJSW00105MAPOT 1M OHM 1W CERMET LINEAR |
2,861 |
|
Datasheet |
P11S | Box | Active | 1M | ±20% | 1W | - | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
P11S1QAEJSW00103MAPOT 10K OHM 1W CERMET LINEAR |
3,380 |
|
Datasheet |
P11S | Box | Active | 10k | ±20% | 1W | - | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
A43500POT 500 OHM 2W WIREWOUND LINEAR |
3,319 |
|
Datasheet |
A43 | Bulk | Obsolete | 500 | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | - | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P11A1C0BJSZ00103MAPOT 10K OHM 1/2W PLASTIC LINEAR |
1,454 |
|
Datasheet |
P11A | Box | Active | 10k | ±20% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
WA1G024S101UAPOT 100 OHM 1/4W PLASTIC LINEAR |
4,313 |
|
- |
W | Bulk | Obsolete | 100 | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Conductive Plastic | Solder Lug | Slotted | 0.375" (9.53mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

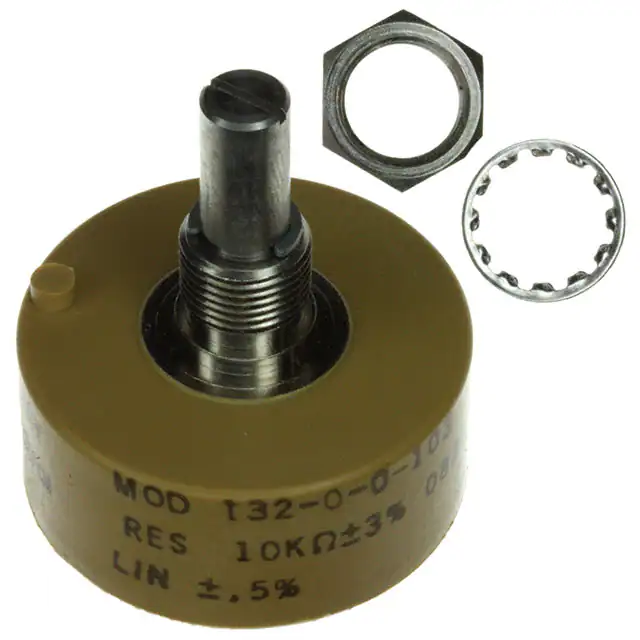

132B00103POT 10K OHM 2.75W WIREWOUND LIN |
4,204 |
|
Datasheet |
132 | Bulk | Active | 10k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | Continuous | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
RA20NASD502APOT 5K OHM 2W WIREWOUND LINEAR |
3,080 |
|
Datasheet |
RA20 | Bulk | Obsolete | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P11A2A0BJRY00P0002POT PLASTIC |
1,789 |
|
Datasheet |
P11A | Box | Active | - | - | - | - | 1.0 | - | - | 2 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Round | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
