Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

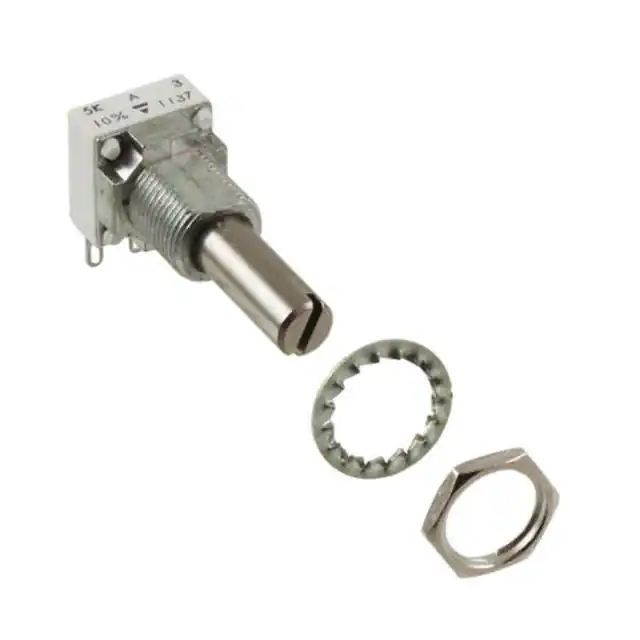

P11S1V0FLSY00104KAPOT 100K OHM 1W CERMET LINEAR Vishay Sfernice |
2,501 |
|
Datasheet |
P11S | Bulk | Active | 100k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

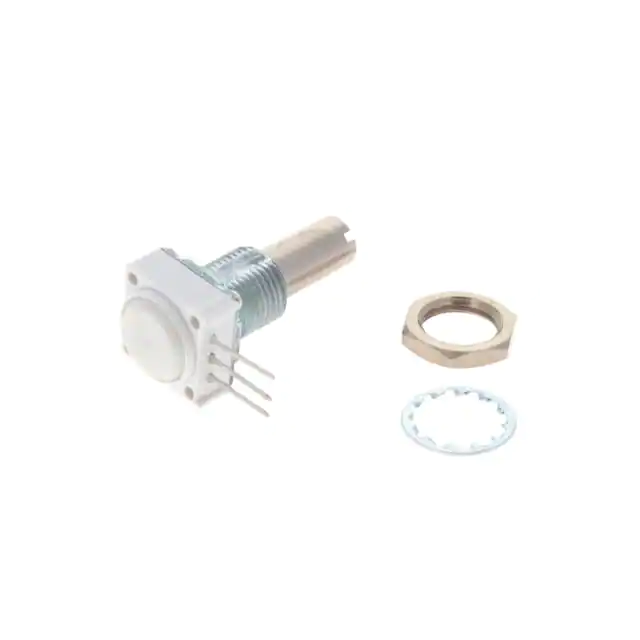

14910F0GJSX10105KAPOT 1M OHM 1W CERMET LINEAR Vishay Spectrol |
4,035 |
|
Datasheet |
149 | Box | Active | 1M | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

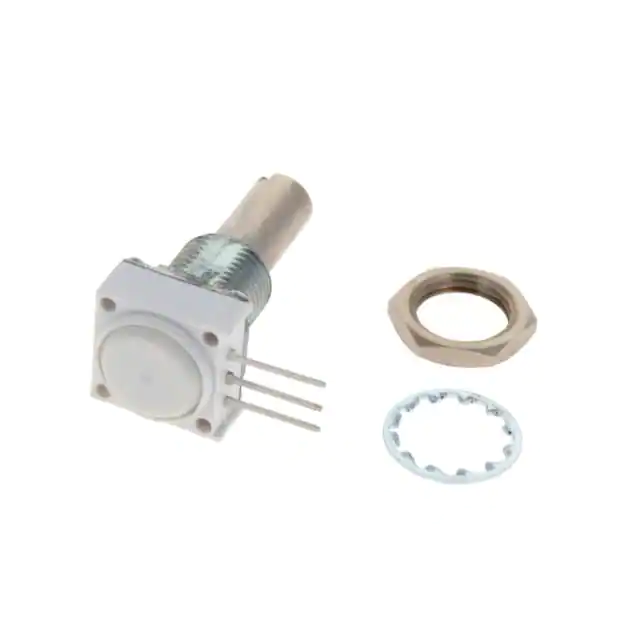

14910F0GJSX10501KAPOT 500 OHM 1W CERMET LINEAR Vishay Spectrol |
2,576 |
|
Datasheet |
149 | Box | Active | 500 | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

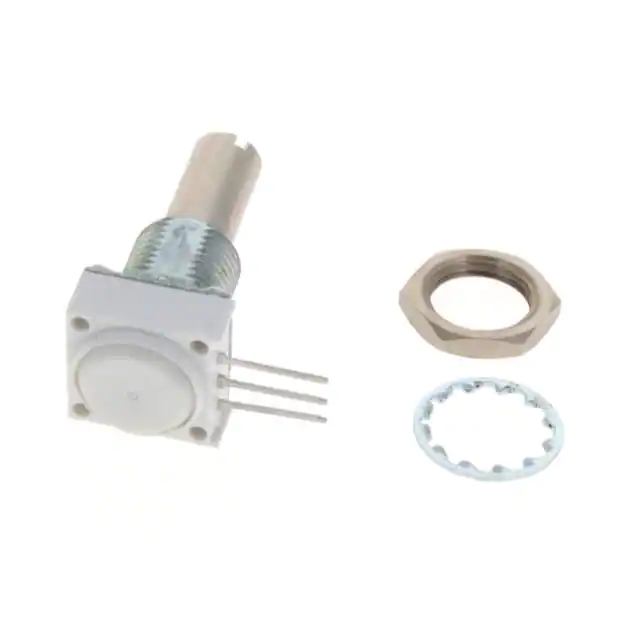

14910F0GJSX10251KAPOT 250 OHM 1W CERMET LINEAR Vishay Spectrol |
2,018 |
|
Datasheet |
149 | Box | Active | 250 | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
14910F0GJSX10253KAPOT 25K OHM 1W CERMET LINEAR Vishay Spectrol |
2,552 |
|
Datasheet |
149 | Box | Active | 25k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

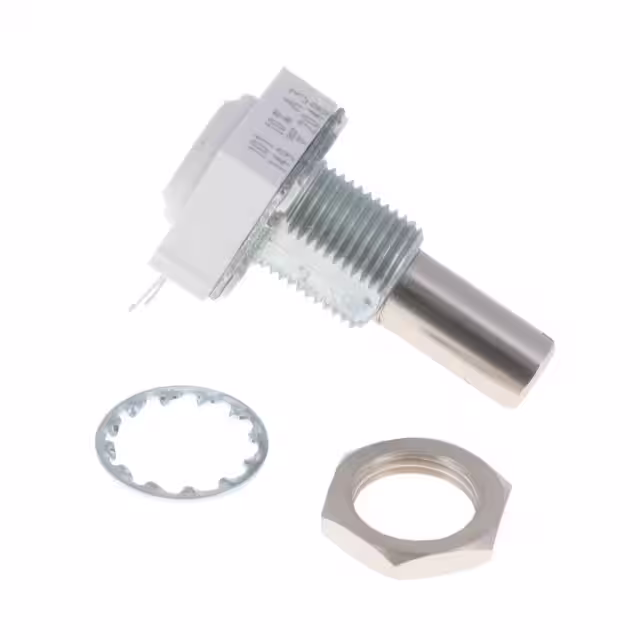

14910F0GJSX10101KAPOT 100 OHM 1W CERMET LINEAR Vishay Spectrol |
1,301 |
|
Datasheet |
149 | Box | Active | 100 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|

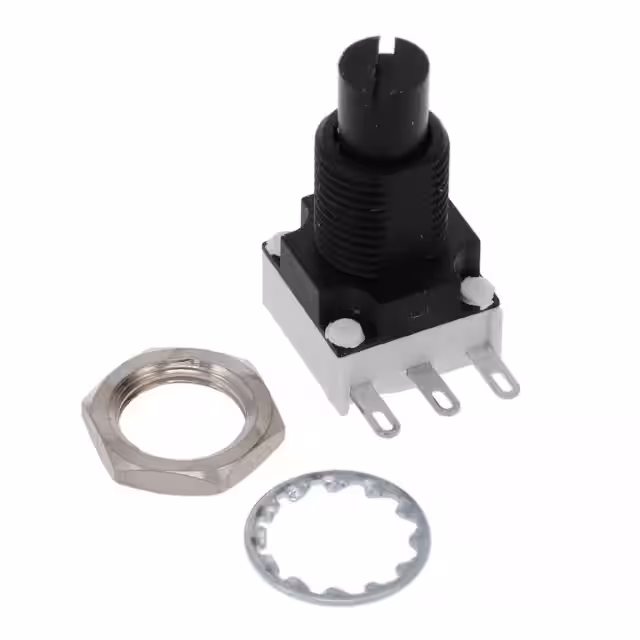

P11P1F0GGSY00103KAPOT 10K OHM 1W CERMET LINEAR Vishay Sfernice |
2,386 |
|
Datasheet |
P11P | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

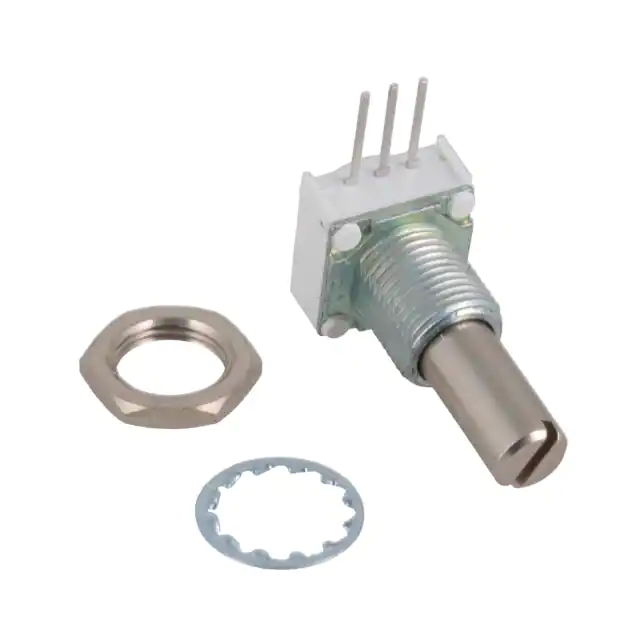

14910F0GJSX10102KAPOT 1K OHM 1W CERMET LINEAR Vishay Spectrol |
4,203 |
|
Datasheet |
149 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
249BBHS0XB25102KAPOT 1K OHM 1W CERMET LINEAR Vishay Spectrol |
2,469 |
|
Datasheet |
249 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

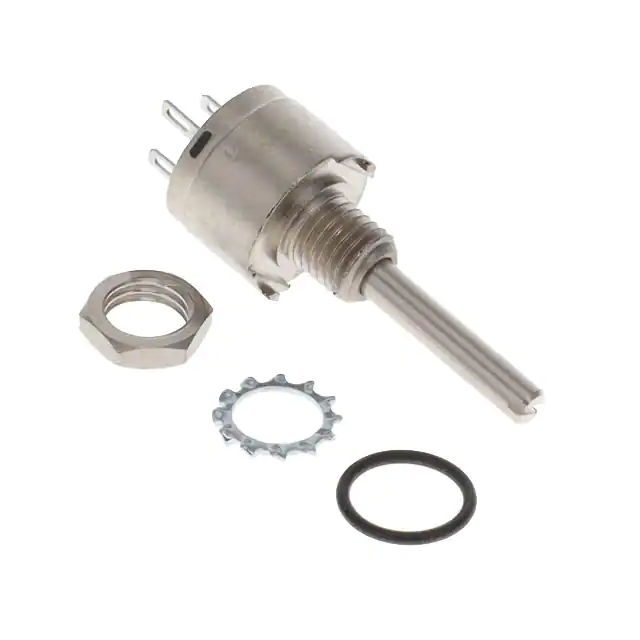

PRV6SAABJYB25502KLPOT 5K OHM 1.5W CERMET LOG Vishay Sfernice |
3,867 |
|
Datasheet |
PRV6 | Box | Active | 5k | ±10% | 1.5W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
