RF Detectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency | RF Type | Input Range | Accuracy | Voltage - Supply | Mounting Type | Supplier Device Package | Current - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMH2110TMX/NOPBIC RF DETECT 50MHZ-8GHZ 6DSBGA |
5,925 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50MHz ~ 8GHz | GSM, EDGE, CDMA | -40dBm ~ 5dBm | ±0.5dB | 2.7V ~ 5V | - | Surface Mount | 6-DSBGA |
|
MAX2204EXK+TIC RF DETECT 450MHZ-2.5GHZ SC70 |
5,203 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 450MHz ~ 2.5GHz | Cellular, W-CDMA | -16dBm ~ 5dBm | ±0.5dB | 2.7V ~ 3.3V | 1.2 mA | Surface Mount | SC-70-5 |
|
LMV221SD/NOPBIC RF DETECT 50MHZ-3.5GHZ 6WSON |
10,851 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 50MHz ~ 3.5GHz | Cellular, CDMA, CDMA2000, EDGE, GSM, GPRS, TDMA, W-CDMA | -45dBm ~ 5dBm | ±0.5dB | 2.7V ~ 3.3V | 10 mA | Surface Mount | 6-WSON (2.2x2.5) |
|
LTC5505-2ES5#TRMPBFIC RF DETECT 300MZ-3.5GHZ TSOT23 |
3,196 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300MHz ~ 3.5GHz | Cellular, PCS, Wireless Modem | -32dBm ~ 12dBm | - | 2.7V ~ 6V | 500 µA | Surface Mount | TSOT-23-5 |
|
|
LTC5505-1ES5#TRMPBFIC RF DETECT 300MHZ-3GHZ TSOT23 |
866 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300MHz ~ 3GHz | Cellular, PCS, Wireless Modem | -28dBm ~ 18dBm | - | 2.7V ~ 6V | 500 µA | Surface Mount | TSOT-23-5 |
|
AD8314ACPZ-RL7IC RF DETECT 100MHZ-2.7GHZ 8CSP |
7,875 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100MHz ~ 2.7GHz | Cellular, GSM, TDMA, CDMA | -45dBm ~ 0dBm | - | 2.7V ~ 5.5V | 5.7 mA | Surface Mount | 8-LFCSP-VD (3x2) |
|
ADL5506ACBZ-R7IC RF DETECT 30MHZ-4.5GHZ 6WLCSP |
4,500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 30MHz ~ 4.5GHz | General Purpose | -45dBm ~ 5dBm | ±1dB | 2.5V ~ 5.5V | 3.8 mA | Surface Mount | 6-WLCSP (0.76x1.36) |
|
AD8312ACBZ-P7IC RF DETECT 50MHZ-3.5GHZ 6CSP |
239 |
|
Datasheet |
- | Strip | Active | 50MHz ~ 3.5GHz | Cellular, GSM, CDMA, W-CDMA | -45dBm ~ 0dBm | ±1dB | 2.7V ~ 5.5V | 5.7 mA | Surface Mount | 6-WLCSP (1.45x0.95) |
|
MAX4003EUA+TIC RF DETECT 100MHZ-2.5GHZ 8UMAX |
10,341 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100MHz ~ 2.5GHz | Cellular, TDMA, CDMA, GPRS, GSM | -45dBm ~ 0dBm | - | 2.7V ~ 5V | 5.9 mA | Surface Mount | 8-uMAX/uSOP |
|
LTC5530ES6#TRMPBFIC RF DETECT 300MHZ-7GHZ TSOT23 |
1,969 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300MHz ~ 7GHz | 802.11a/b/g/WiFi, 802.16/WiMax, WLAN | -32dBm ~ 10dBm | - | 2.7V ~ 6V | 500 µA | Surface Mount | TSOT-23-6 |
|
|
LTC5507ES6#TRMPBFIC RF DETECT 100KHZ-1GHZ TSOT23 |
24,770 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100kHz ~ 1GHz | General Purpose | -34dBm ~ 14dBm | - | 2.7V ~ 6V | 550 µA | Surface Mount | TSOT-23-6 |
|
|
LTC5507ES6#TRPBFIC RF DETECT 100KHZ-1GHZ TSOT23 |
7,396 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100kHz ~ 1GHz | General Purpose | -34dBm ~ 14dBm | - | 2.7V ~ 6V | 550 µA | Surface Mount | TSOT-23-6 |
|

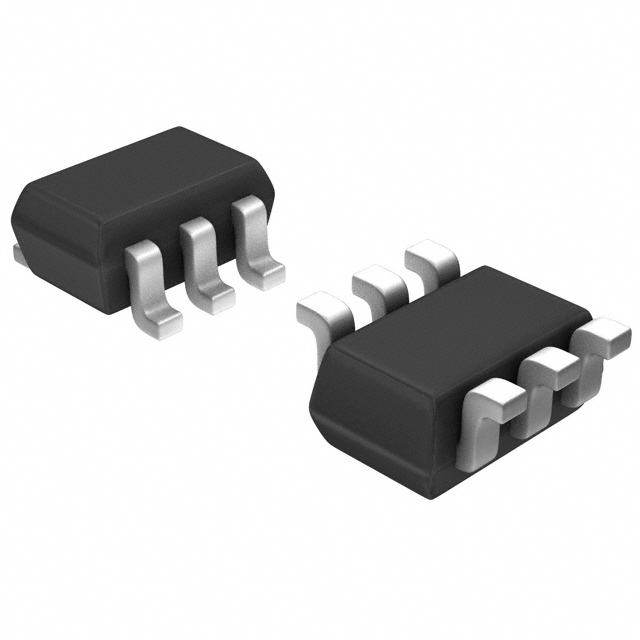

LTC5508ESC6#TRMPBFIC RF DETECT 300MHZ-7GHZ SC70-6 |
3,810 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300MHz ~ 7GHz | General Purpose | -32dBm ~ 12dBm | - | 2.7V ~ 6V | 550 µA | Surface Mount | SC-70-6 |
|
|
LTC5532ES6#TRMPBFIC RF DETECT 300MHZ-7GHZ TSOT23 |
4,484 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300MHz ~ 7GHz | 802.11a/b/g/WiFi, Wireless Modem, WLAN | -32dBm ~ 10dBm | - | 2.7V ~ 6V | 500 µA | Surface Mount | TSOT-23-6 |
|
|
LTC5535ES6#TRMPBFIC RF DETECT 600MHZ-7GHZ TSOT23 |
610 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 600MHz ~ 7GHz | 802.11a/b/g/WiFi, 802.16/WiMax, WLAN | -32dBm ~ 10dBm | - | 2.7V ~ 5.5V | 2 mA | Surface Mount | TSOT-23-6 |
|
|
AD8319ACPZ-R7IC RF DETECT 1MHZ-10GHZ 8LFCSP |
5,482 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1MHz ~ 10GHz | RADAR, 802.11/WiFi, 8.2.16/WiMax, Wireless LAN | -60dBm ~ -2dBm | ±1dB | 3V ~ 5.5V | 22 mA | Surface Mount | 8-LFCSP-VD (3x2) |
|
LTC5532EDC#TRMPBFIC RF DETECT 300MHZ-7GHZ 6DFN |
5,415 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 300MHz ~ 7GHz | 802.11a/b/g/WiFi, Wireless Modem, WLAN | -32dBm ~ 10dBm | - | 2.7V ~ 6V | 500 µA | Surface Mount | 6-DFN (2x2) |
|
LT5581IDDB#TRMPBFIC RF DETECT 10MHZ-6GHZ 8DFN |
17,403 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10MHz ~ 6GHz | CATV | -34dBm ~ 6dBm | ±1dB | 2.7V ~ 5.25V | 1.4 mA | Surface Mount | 8-DFN (3x2) |
|
|
LT5581IDDB#TRPBFIC RF DETECT 10MHZ-6GHZ 8DFN |
2,559 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10MHz ~ 6GHz | CATV | -34dBm ~ 6dBm | ±1dB | 2.7V ~ 5.25V | 1.4 mA | Surface Mount | 8-DFN (3x2) |
|

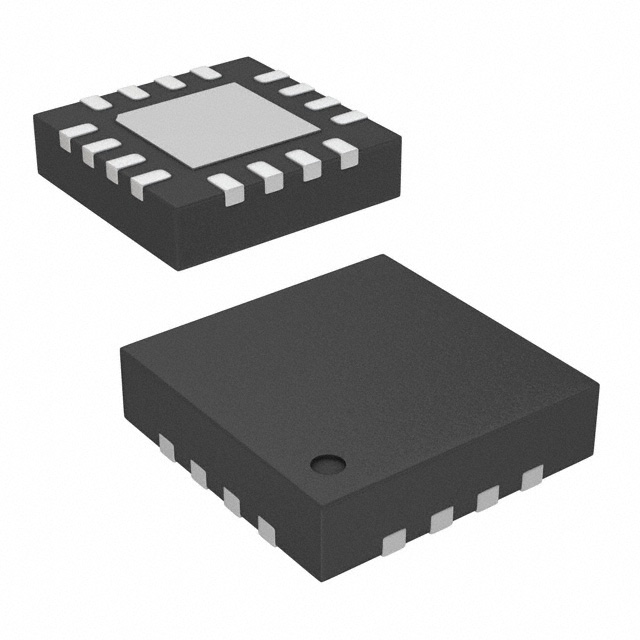

ADL5904ACPZN-R7IC RF DETECT 0HZ-6GHZ 16LFCSP |
889 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0Hz ~ 6GHz | - | -30dBm ~ 15dBm | ±1dB | 3.3V | 3.5 mA | Surface Mount | 16-LFCSP (3x3) |
