RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2J4802PASPARROW 2IN1 2.4/5.0/6.0GHZ/WIFI |
1,505 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.422GHz, 6.525GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 3 | 1.3, 1.7, 2 | -21.9dB, -16dB, -13.5dB | 5.5dBi, 6.2dBi, 5.1dBi | 25 W | Cable - 3m | RP-SMA Male | IP67, IP69 | - | - | Adhesive | 0.563" (14.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ETRA9023ANT OMNI PHE NMO 902-928MHZ |
3,293 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | - | - | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
MABVTGBNCM518-001MOUNT,BMM,3/8,58U,BNCM |
4,974 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG74204UPR-4310F698 MHZ - 4200 MHZ, INDOOR/OUTDO |
1,992 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 2.205GHz, 3.8GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz | Module | 4 | 1.8 | - | 3.5dBi, 3dBi, 3.5dBi, 4dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Bracket Mount | 7.400" (187.96mm) | 5G, CDMA, GSM, IoT, LoRa, LPWAN, LTE |
|
|
16101.2GSM-ANTENNA |
2,040 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG65806CUPR-4310F617 MHZ - 6000 MHZ, INDOOR 5G OM |
3,226 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 5 | 1.8 | - | 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Ceiling Mount | 0.670" (17.02mm) | 5G, CDMA, GSM, IoT, LoRa, LPWAN, LTE |
|
|
SPHL14FTANT SPOTS HELICAL 1/4W TUNABLE |
1,009 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 178.5MHz | 136MHz ~ 221MHz | Helical | 1 | - | - | - | - | - | MD | - | - | - | Connector Mount | 7.000" (177.80mm) | - |
|
|
KD4VHF1ANT VHF HELICAL SPEC FREQ 136- |
2,366 |
|
- |
- | Bag | Active | Cellular | VHF (f < 300MHz) | 138.5MHz | 136MHz ~ 141MHz | Helical | 1 | 2 | -10dB | - | - | - | BNC Male | - | - | - | Connector Mount | 8.000" (203.20mm) | DCS, ISM, GSM, PCS |
|
|
KD4VHF2ANT VHF HELICAL SPEC FREQ 142- |
3,803 |
|
- |
- | Bag | Active | Cellular | VHF (f < 300MHz) | 145.5MHz | 142MHz ~ 149MHz | Helical | 1 | 2 | -10dB | - | - | - | BNC Male | - | - | - | Connector Mount | 8.000" (203.20mm) | DCS, ISM, GSM, PCS |
|
|
ETRA8903RF ANT 925MHZ WHIP STR NMO BASE |
2,917 |
|
Datasheet |
Phantom Elite® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | 2 | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
MLB4700BASE LOADED - LOWBAND ANTENNAS |
2,179 |
|
Datasheet |
MLB | Bag | Active | - | VHF (f < 300MHz) | 50.5MHz | 47MHz ~ 54MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Magnetic | 52.000" (132.10cm) | - |
|
|
MLB2700LOWBAND QUARTER WAVE ANTENNAS |
1,142 |
|
Datasheet |
MLB | Bag | Active | - | VHF (f < 300MHz) | 29MHz | 27MHz ~ 31MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Magnetic | 52.000" (132.10cm) | - |
|
|
MLB4000LOWBAND QUARTER WAVE ANTENNAS |
2,176 |
|
Datasheet |
MLB | Bag | Active | - | VHF (f < 300MHz) | 43.5MHz | 40MHz ~ 47MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Magnetic | 52.000" (132.10cm) | - |
|
|
MLB300030-35,UNITY,CHR |
2,454 |
|
Datasheet |
MLB | Bulk | Active | General ISM | VHF (f < 300MHz) | 32.5MHz | 30MHz ~ 35MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Threaded | 52.000" (132.10cm) | General Purpose |
|
|
MLB340034-40,UNITY,CHR |
4,742 |
|
Datasheet |
MLB | Bulk | Active | General ISM | VHF (f < 300MHz) | 37MHz | 34MHz ~ 40MHz | Whip, Straight | 1 | 1.5 | - | 1dBi | 200 W | - | - | - | - | - | Threaded | 52.000" (132.10cm) | General Purpose |
|
|
HG63804RD-SMANTRUBBER DUCK 617-3800, 0-5 DBI |
3,349 |
|
- |
HG | Bag | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 2.407GHz | 615MHz ~ 4.2GHz | Whip, Tilt | 1 | 3 | - | 4.5dBi | 5 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Connector Mount | 4.500" (114.30mm) | 4G, 5G, Bluetooth, C-Band, CBRS, IoT, Wi-Fi, Zigbee™, Z-Wave |
|
|
KIT-ANT18-13-2.0RF ANT 2.4GHZ WHIP TILT CONN MT |
1,521 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | - | - | - | - | - | - | - | Connector Mount | 18.000" (457.20mm) | - |
|
|
EXC3801M8-001RF ANT 405MHZ WHIP STR M8 CONN |
4,559 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 405MHz | 380MHz ~ 430MHz | Whip, Straight | 1 | 2 | - | 2dBi | 50 W | - | M8 | - | - | - | Panel Mount | 6.620" (168.15mm) | TETRA |
|

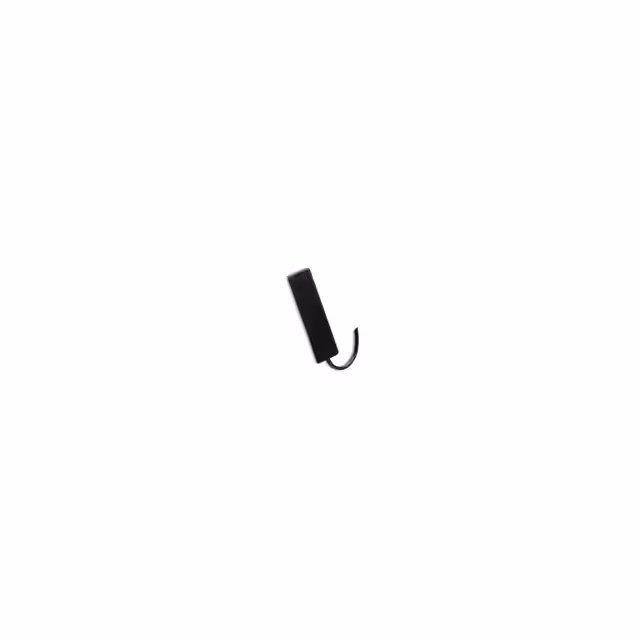

SB240012STEALTH BLADE, UNITY / 2.14 DBI, |
1,230 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | - | - | 2.14dBi | 3 W | - | - | - | - | - | Connector Mount | 3.000" (76.20mm) | 4G, LTE |
|
|
ETRAB9023RF ANT 915MHZ WHIP STR NMO BASE |
3,475 |
|
Datasheet |
Phantom Elite® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
