RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1360WSRF ANT 155MHZ WHIP STR NMO MAG |
3,595 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 4dBi | 100 W | - | NMO | IP67 | - | - | Magnetic, Trunk | 19.500" (495.30mm) | - |
|
EM-B11909RF ANT 925MHZ YAGI N ML POLE MT |
1,825 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi, 6-Element | 1 | 2 | - | 9.5dBi | 125 W | - | N Type Female | - | - | - | Pole Mount | 24.000" (609.60mm) | - |
|
FMD9023-CPRF ANT 915MHZ MOD N TYPE F CONN |
1,343 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | 1.5 | - | 3dBic | - | - | N Type Female | - | - | - | Connector Mount | 0.512" (13.00mm) | ISM, LoRa, LPWAN |
|
BB1322WSRF ANT 132MHZ WHIP STR NMO BASE |
4,239 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 132MHz | 132MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2.4dB | 100 W | - | NMO | - | - | - | Base Mount | 40.157" (102.00cm) | - |
|

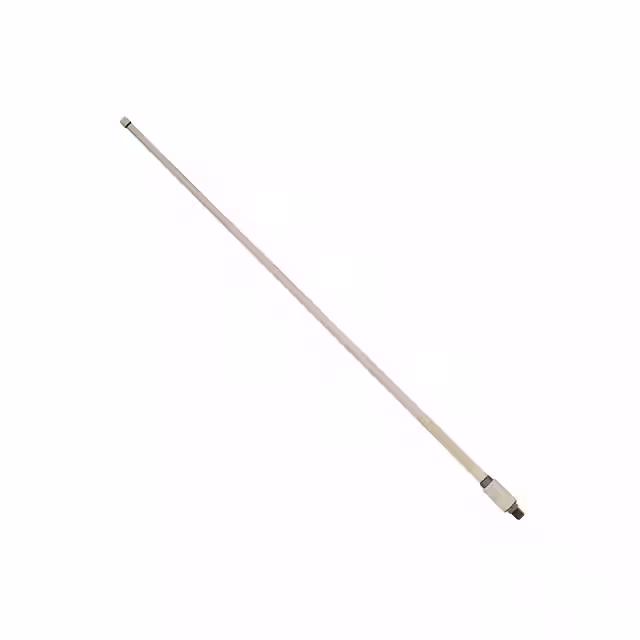

RO2202NFANT RO 217-222MHZ 1.6DBI N-FEM |
4,166 |
|
Datasheet |
Radome Omni | Bag | Active | - | VHF (f < 300MHz) | 219.5MHz | 217MHz ~ 222MHz | Whip, Straight | 1 | 1.5 | - | 1.6dBi | 40 W | - | N Type Female | IP67 | - | - | Connector Mount | 32.988" (837.90mm) | General Purpose |
|

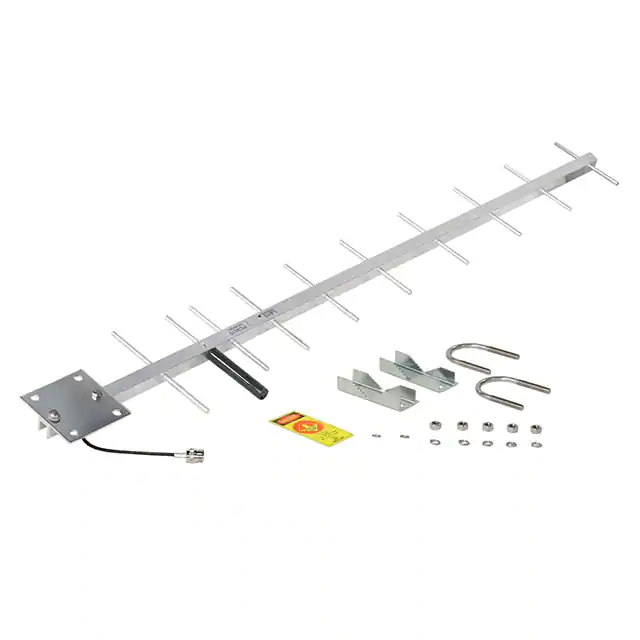

PC9010NRF ANT 944MHZ YAGI N TYP BRKT MT |
3,113 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 944MHz | 928MHz ~ 960MHz | Yagi, 10-Element | 1 | - | - | 12dBd | 200 W | Cable - 483mm | N Type Female | - | - | - | Bracket Mount | 41.500" (105.41cm) | GSM |
|
ETRA1550RF ANT 158MHZ DOME NMO BASE MT |
3,150 |
|
Datasheet |
Phantom Elite® | Bulk | Active | - | VHF (f < 300MHz) | 158MHz | 155MHz ~ 160MHz | Dome | 1 | - | - | 0dB | 60 W | - | NMO | - | - | - | Base Mount | 2.375" (60.32mm) | - |
|
GPSDM700/2500FFSRF ANT 829MHZ/1.575GHZ DOME FME |
2,067 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 4 | 2 | - | 6dBi | - | - | FME Female | - | - | - | Panel Mount | 3.465" (88.00mm) | - |
|
CMD69273P-30NFRF ANT 700MHZ/850MHZ MOD CAB 12" |
3,996 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 8 | 2 | - | 3.9dBi, 3.8dBi, 3.5dBi, 6.8dBi, 5.1dBi, 4.7dBi, 6.3dBi, 7.4dBi | 50 W | Cable - 305mm | N Type Female | - | - | - | Panel Mount | 1.713" (43.50mm) | LTE, WiMax™, WLAN |
|
MA412.A.BI.001RF ANT 829MHZ/1.9GHZ DOME FAKRA |
4,782 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 3 | 3.5 | - | 8.1dBi | - | - | SMB, Fakra | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | LTE |
|

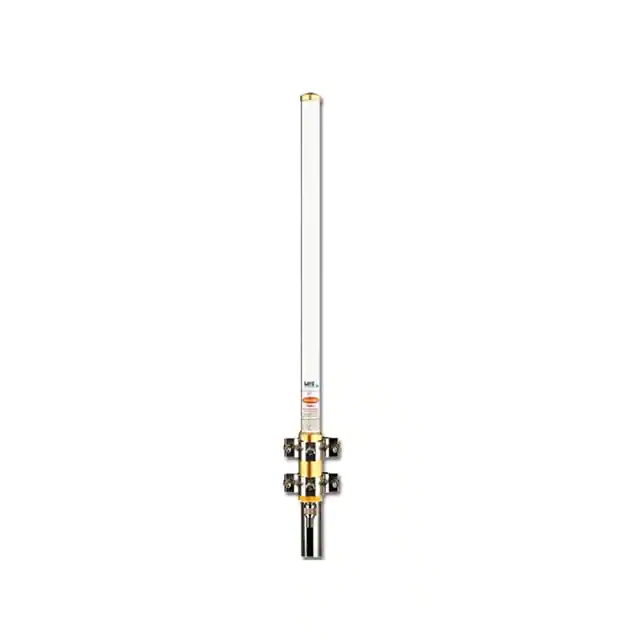

FG4300RF ANT 440MHZ WHIP STR N FEM 26" |
2,923 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Whip, Straight | 1 | 2 | - | 0dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 26.000" (660.40mm) | - |
|
TRAT1500PRF ANT 159MHZ DOME N FM PAN 2.3" |
3,269 |
|
Datasheet |
Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 150MHz ~ 168MHz | Dome | 1 | - | - | 0dBi | 60 W | - | N Type Female | - | - | - | Panel Mount | 4.125" (104.77mm) | - |
|

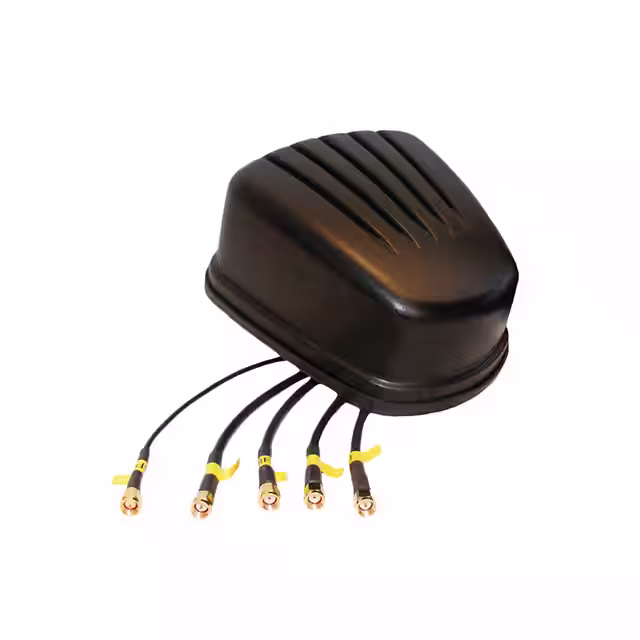

GPSMB501RF ANT 829MHZ/2.2GHZ MODULE SMA |
2,577 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 2.2GHz, 3.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 2.9GHz ~ 3.6GHz, 4.9GHz ~ 5.9GHz | Module | 4 | 1.6 | - | 5dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.000" (76.20mm) | GPS, LTE, Wi-Fi |
|
GPSL1-TMG-SPI-40NRF ANT 1.575GHZ DOME PANEL MNT |
2,080 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | - | - | - | - | Panel Mount | 7.244" (184.00mm) | GPS |
|
BGLHPDLTE-SFRF ANT 657.5MHZ DOME SMA PAN MT |
1,667 |
|
Datasheet |
GLHPDLTE-SF | Box | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Dome | 8 | 1.3, 1.5, 1.6, 1.7, 1.9, 2, 2.4 | - | 3.8dBi, 5.2dBi, 6.2dBi, 3dBic, -2dBic, 7.5dBi, 8.9dBi, 5.4dBi, 8.1dBi | 50 W | Cable - 5.1816m | SMA (2) | IP67 | - | - | Panel Mount | 3.531" (89.70mm) | GLONASS, GPS, GNSS, LTE |
|
RAZ52211DMRF ANT 802MHZ/1.582GHZ MOD PANEL |
3,157 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 3.644" (92.55mm) | GPS, LTE, Wi-Fi |
|

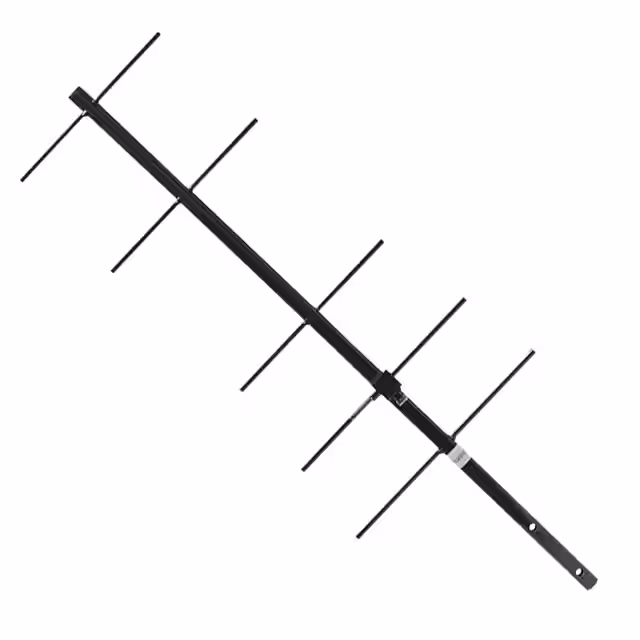

YA3450WNANT YAGI 450-470MHZ 11DBI N-FEM |
1,096 |
|
Datasheet |
Yagi | Box | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Directional Antenna | 1 | 2 | - | 10.5dBi | 300 W | - | N Type Female | - | - | - | Pole Clamp | 36.260" (921.00mm) | General Purpose |
|
33-5342-6-10-05-PC0GPS/ GLONASS SMART ANTENNA (GREY |
1,338 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Cable - 5m | - | - | - | - | Panel Mount | - | General Purpose |
|
MA353.A.LBC.0013IN1 MAGNET MNT ANT 3M SMA(M) |
3,481 |
|
- |
Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 14 | - | -10dB | 1.3dBi, 2.8dBi, 5dBi, 3.4dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 4.1dBi, 5.9dBi, 5.4dBi, 7.7dBi, 3dBi, 3.5dBi | 10 W | Cable - 3m, LNA, Filter | RP-SMA Male, SMA Male (2) | IP65 | - | - | Magnetic | 2.079" (52.80mm) | 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
PDQ24499-91NMRF ANT 2.4GHZ/5.4GHZ PANEL CAB |
1,118 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Panel | 2 | 1.6, 1.8 | - | 8.6dBi, 9.4dBi | 10 W | Cable - 910mm | N Type Male (4) | IP67 | - | - | Bracket Mount | 1.614" (41.00mm) | Wi-Fi |
