RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

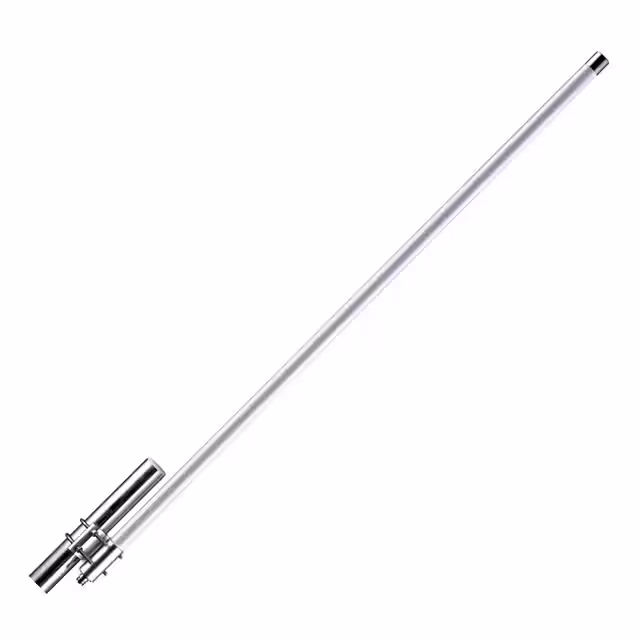

OMB.450.B06F21RF ANT 460MHZ WHIP STR N FEM Taoglas Limited |
4,644 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | - | N Type Female | IP65 | - | - | Bracket Mount | 43.071" (109.40cm) | CDMA, LTE |
|

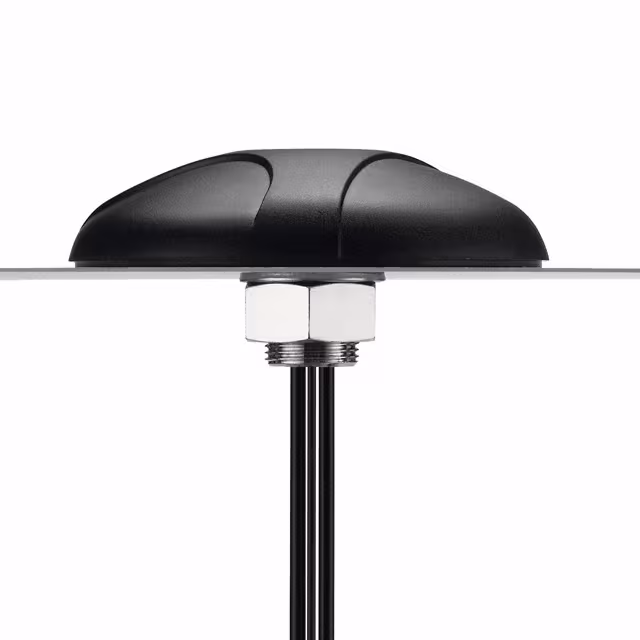

MA600.A.ABC.007RF ANT 850MHZ/900MHZ DOME PNL MT Taoglas Limited |
4,868 |
|
- |
Spartan | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 11 | 2, 1.6 | - | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | CDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi |
|

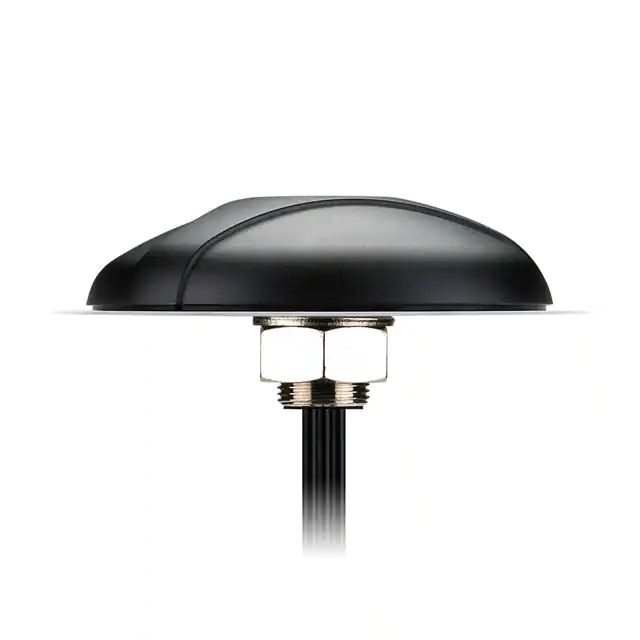

MA671.A.CGH.003RF ANT 4.7GHZ DOME RP-SMA MALE Taoglas Limited |
2,824 |
|
Datasheet |
Spartan | Box | Obsolete | - | SHF (f > 4GHz) | 4.7GHz | 4.5GHz ~ 4.9GHz | Dome | 1 | 2 | - | 4.4dBi | - | - | RP-SMA Male | IP67 | - | - | Panel Mount | 1.969" (50.00mm) | - |
|

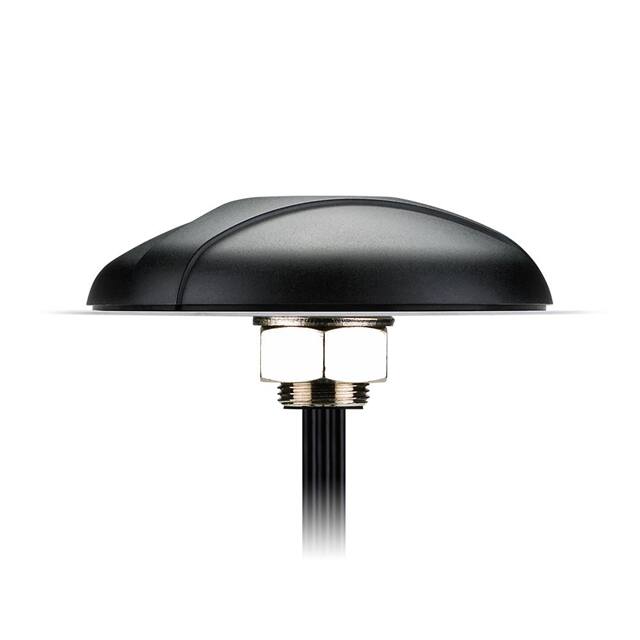

MA672.A.CGH.003RF ANT 5.4GHZ DOME RP-SMA PNL MT Taoglas Limited |
1,050 |
|
Datasheet |
Spartan | Box | Obsolete | - | SHF (f > 4GHz) | 5.4GHz | 5GHz ~ 5.8GHz | Dome | 1 | 2 | - | 4.84dBi | - | Cable - 3m | RP-SMA Male (3) | IP67 | - | - | Panel Mount | 1.400" (35.55mm) | - |
|

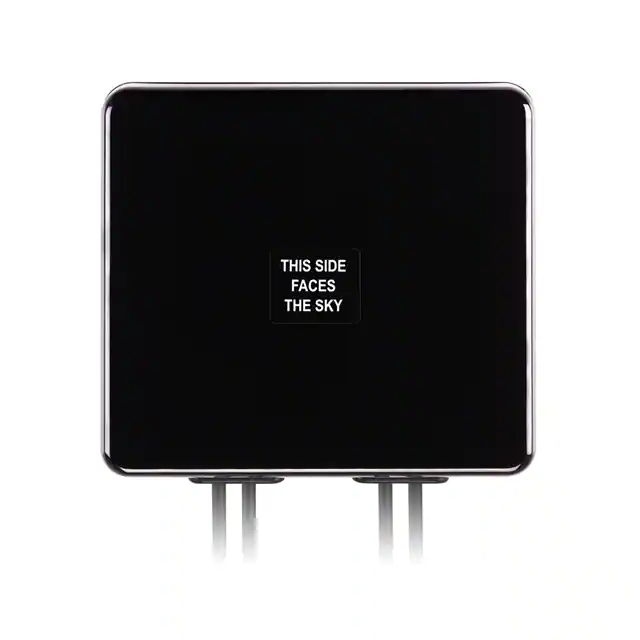

MA961.A.BICG.002RF ANT 829MHZ/1.94GHZ MODULE Taoglas Limited |
1,661 |
|
Datasheet |
Guardian | Box | Active | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Module | 6 | 3 | - | 7dBi | - | - | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | GSM, LTE, UMTS, Wi-Fi |
|

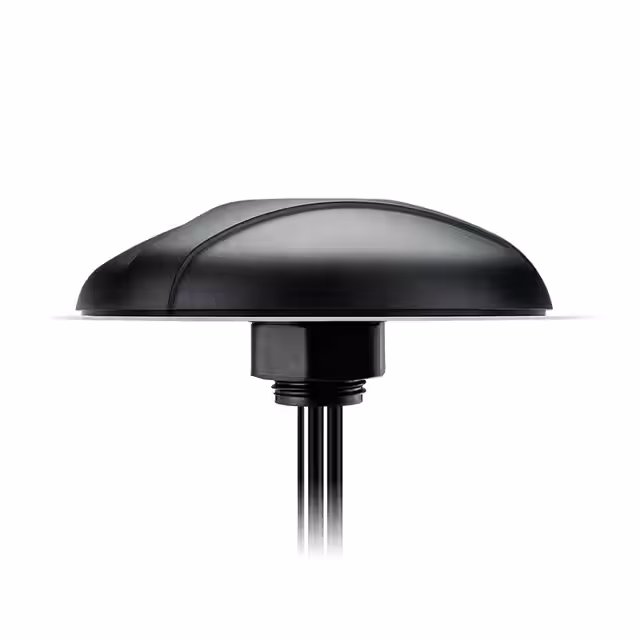

MA605.A.ABC.001SPARTAN MA605 3IN1 PERMANENT MOU Taoglas Limited |
1,715 |
|
Datasheet |
Spartan | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 860MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.45GHz, 4.85GHz, 5.2GHz, 5.65GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 11 | 1.6, 2 | - | 3.4dBi, 3.2dBi, 4dBi, 3.8dBi, 3dBi, 3.8dBi, 2.1dBi, 3.2dBi, 4.5dBi, 4.4dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.969" (50.00mm) | CDMA, Galileo, GLONASS, GPS, GSM, LTE, UMTS, Wi-Fi |
|

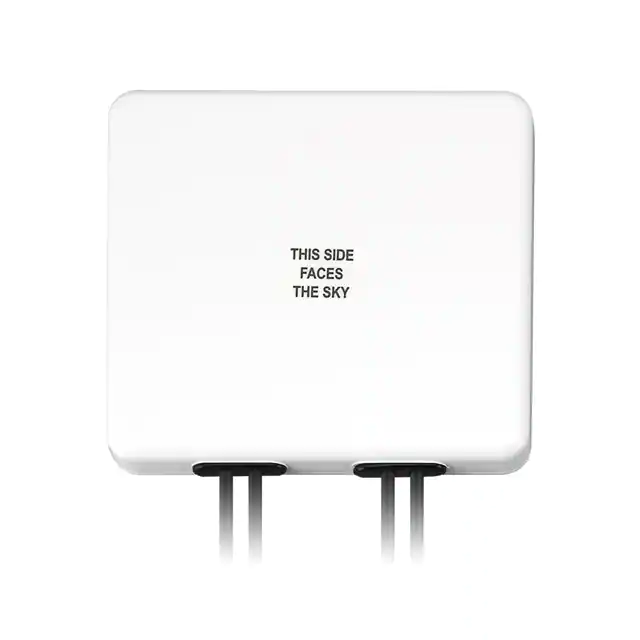

MA961.W.A.BICG.002GUARDIAN MA961.W 4-IN-1 2*LTE MI Taoglas Limited |
4,430 |
|
Datasheet |
Guardian | Box | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.45GHz, 5.375GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz | Module | 10 | 3 | - | 3.03dBi, 2.42dBi, 0.85dBi, 2.73dBi, 2.73dBi, 3.2dBi, 3.17dBi, 2.51dBi, 1.86dBi, 2.46dBi | - | Cable - 3m | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|

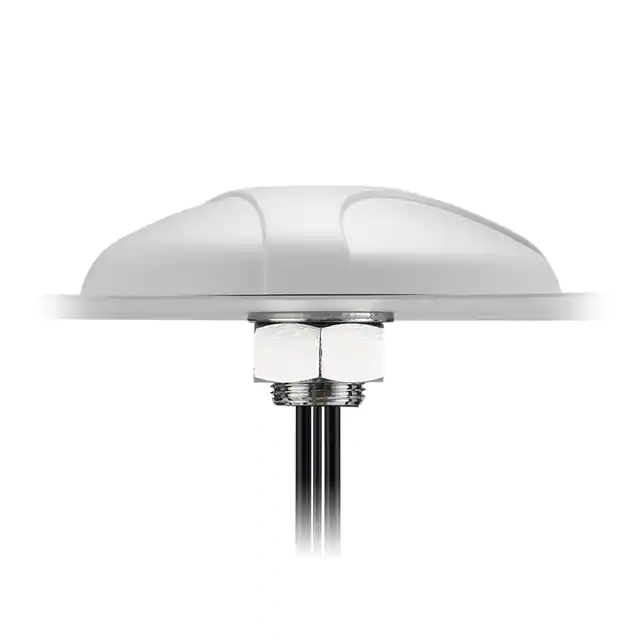

MA600.W.A.ABC.001RF ANT 892MHZ/1.6GHZ DOME SMA ML Taoglas Limited |
4,495 |
|
Datasheet |
Spartan | Box | Not For New Designs | Cellular, Navigation | Wide Band | 892MHz, 1.6GHz, 1.9GHz, 2.4GHz, 5.3GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 5 | 2, 1.6 | - | 32dBi, 2.1dBi, 5.1dBi, 2.1dBi, 3.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | CDMA, GPS, GSM, UMTS |
|
MA931.W.A.LBICGH.001GUARDIAN MA931.W 6-IN-1 ADHESIVE Taoglas Limited |
3,546 |
|
Datasheet |
Guardian | Box | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575.42GHz,1.561098GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GH, 1.574GHz ~ 1.575GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 12 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3dBi, 1.98dBi, 3.01dBi, 3.98dBi, 4.37dBi, 4.37dBi, 4.35dBi, 3.7dBi, 4.49dBi, 4.84dBi | - | Cable - 1m, LNA, Filter | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, DCS, Galileo, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|

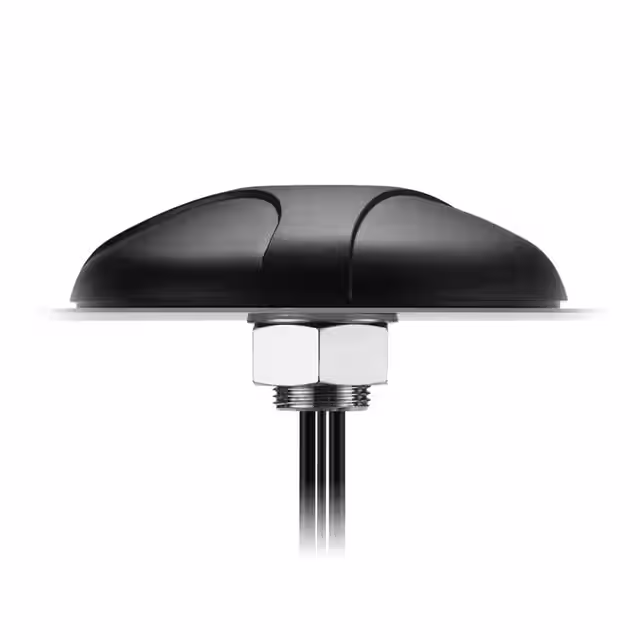

MA603.A.ABK.001RF ANT 850MHZ/900MHZ DOME PNL MT Taoglas Limited |
4,008 |
|
Datasheet |
Spartan | Box | Not For New Designs | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 915MHz, 1.575GHz, 1.602GHz, 1.7GHz, 1.8GHz, 2.1GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz | Dome | 8 | 2, 1.92 | -18.2dB | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.3dBi | - | Cable - 3m, LNA, Filter | SMA Male (3) | IP67 | - | - | Panel Mount | 1.382" (35.10mm) | CDMA, GLONASS, GPS, GSM, HSPA, UMTS |
