RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

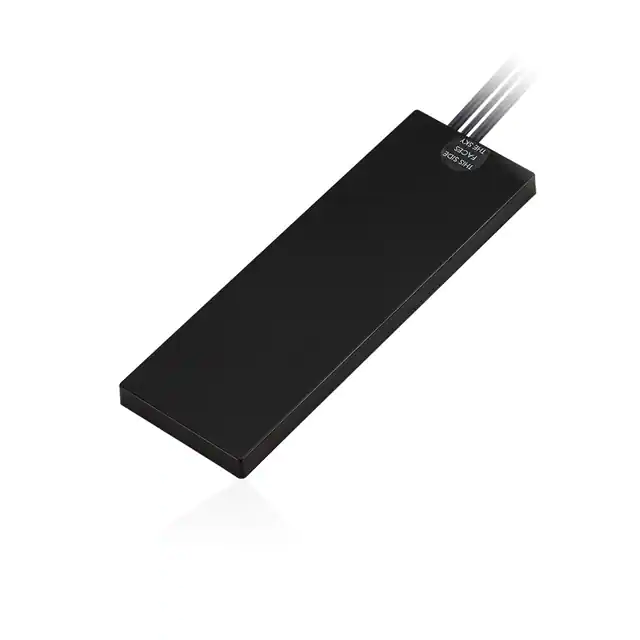

MA233.LBC.0013IN1 METAL ADHESIVE STREAM 3000M Taoglas Limited |
2,742 |
|
Datasheet |
Stream | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 752MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.5GHz | 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz | Module | 10 | 2, 2 | - | -1.98dBi, -1.67dBi | - | Cable - 3m, LNA, Filter | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Adhesive | 0.457" (11.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

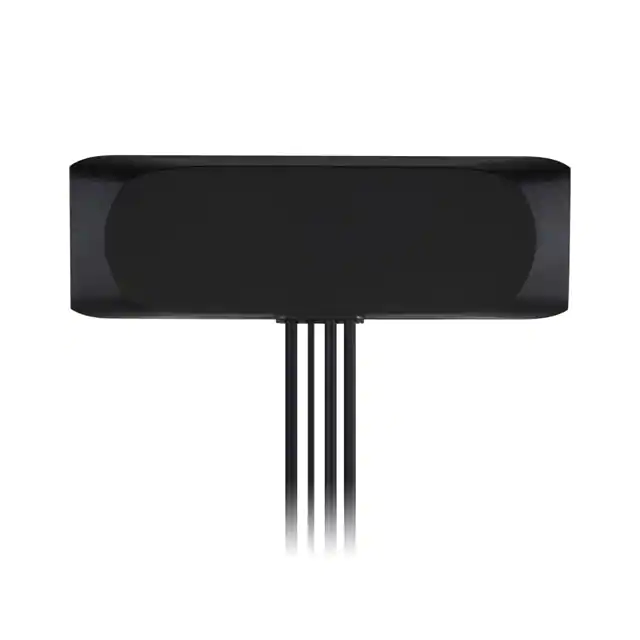

MA244.LBIC.0024IN1 ADHESIVE GNSS:1M RG174 SMA( Taoglas Limited |
3,125 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.605GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.4GHz | 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.85GHz | Module | 11 | 2, 2, 5.8, 5.8 | 10 | 4.14dBi, 2.76dBi, -2.77dBi, 2.14dBi, 2.24dBi, 2.54dBi, 3.74dBi, 4.28dBi, 4.75dBi, 3.03dBi, 4.06dBi | - | Cable - 1m, LNA, Filter | RP-SMA Male (1), SMA Male (2) | IP65 | - | - | Adhesive | 0.488" (12.40mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|

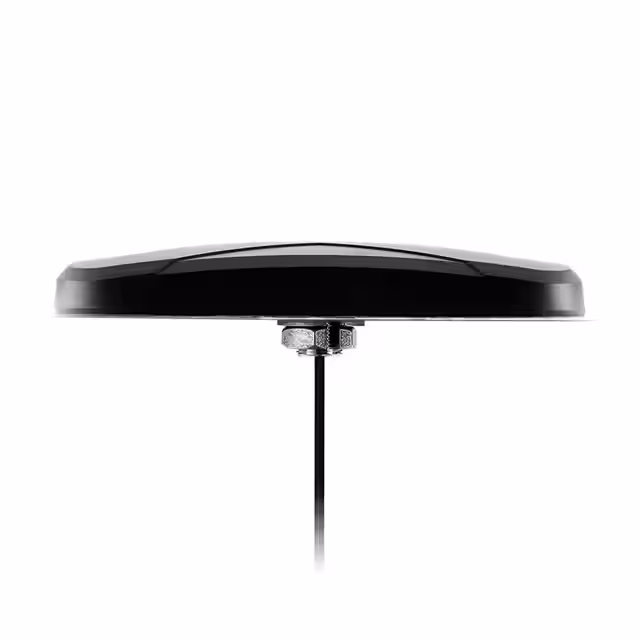

MA413.A.B.004RF ANT 829MHZ/1.94GHZ DOM SMA 6M Taoglas Limited |
3,286 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|
AQHA.11.A.101111TORPEDO AQHA.11.A ACTIVE GNSS EX Taoglas Limited |
4,540 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.6016GHz | - | Dome | 3 | - | - | 0.7dBi, 1dBi, 1dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 4.724" (120.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
FXUB16.07.0150AQWIDEBAND CELLULAR 90X15MM FLEX P Taoglas Limited |
3,161 |
|
Datasheet |
Maximus | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Patch | 8 | - | - | -0.17dBi, 0.5dBi, -0.52dBi, -1.54dBi, 3dBi, 4.1dBi, 6.05dBi, 6.32dBi | 2 W | Cable - 150mm | I-PEX MHFI | - | - | - | Adhesive | 0.009" (0.24mm) | 2G, 3G, 4G, 5G, Cat-M, IoT, LTE, NB-IoT, NR, Wi-Fi |
|
|
FXP050.07.0100CGNSS AND WI-FI FLEXIBLE PCB ANTE Taoglas Limited |
1,358 |
|
Datasheet |
- | Bulk | Active | Navigation, WiFi | Wide Band | 1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz | 1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.586GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 6 | - | - | 2.11dBi, 2.14dBi, 1.65dBi, 3.62dBi, 5.8dBi, 6.57dBi | 2 W | Cable - 100mm | I-PEX | - | - | - | Surface Mount | 0.009" (0.24mm) | GNSS, Wi-Fi |
|
|
FXP055.A.07.C.001GNSS AND WI-FI FLEXIBLE PCB ANTE Taoglas Limited |
4,051 |
|
Datasheet |
- | Bulk | Active | Navigation, WiFi | Wide Band | 1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz | 1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.585GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 6 | - | - | -1.25dBi, -1.26dBi, -1.44dBi, -2.46dBi, -2.35dBi, -1.8dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Surface Mount | 0.009" (0.24mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS, Wi-Fi |
|
|
PC45.07.0150AQWIDEBAND CELLULAR 120X20MM PCB A Taoglas Limited |
100 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 8 | - | - | 0.19dBi, 2.3dBi, 2.06dBi, 2.54dBi, 3.95dBi, 3.86dBi, 5.66dBi, 3.79dBi | 2 W | Cable - 150mm | I-PEX MHFI | - | - | - | Adhesive | 0.042" (1.06mm) | 2G, 3G, 4G, 5G, Cat-M, IoT, LTE, NB-IoT, NR, Wi-Fi |
|
|
CGGBP254.07.0100AGPS/GLONASS/GALILEO/BEIDOU PASSI Taoglas Limited |
4,235 |
|
Datasheet |
- | Tray | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 3 | 2 | - | 1.12dBi, 1.74dBi, 0.89dBi | - | Cable - 100mm | I-PEX MHFHT | - | - | - | Chassis Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
GW55.A.07.B.0012.4/5.8/7.125GHZ OMNI-DIRECTIONA Taoglas Limited |
2,980 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Bar | 3 | - | - | 2.2dBi, 4.2dBi, 3.5dBi | 10 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | - | 0.291" (7.40mm) | Wi-Fi |
