RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

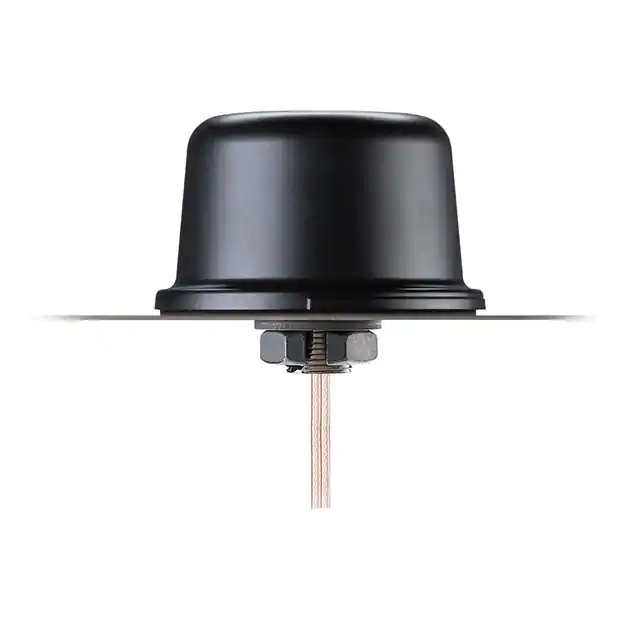

MA841.A.BI.002RF ANT DOME SMA MALE Taoglas Limited |
4,057 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 7 | 3.5 | - | 1.51dBi, 3.56dBi, 2.09dBi, 1.95dBi, 2.72dBi, 1.95dBi, 1.98dBi, 2.37dBi, 1.32dBi, 1.79dBi, 1.04dBi, 2.36dBi, 5.91dBi, 4.99dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Panel Mount | 2.260" (57.40mm) | 2G, 3G, 4G, LTE |
|

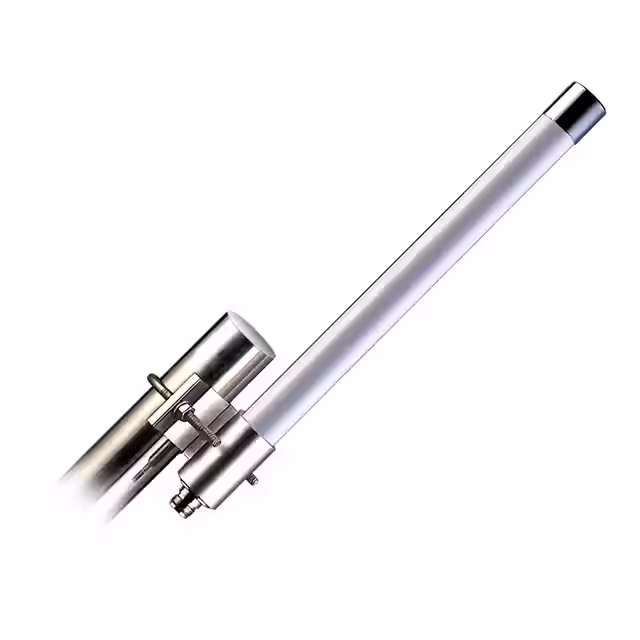

OMB.6912.03F21RF ANT 829MHZ/2.2GHZ WHIP STR N Taoglas Limited |
1,366 |
|
Datasheet |
- | Tube | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 3 | - | 4.5dBi | 150 W | - | N Type Female | IP65 | - | - | Bracket Mount | 12.598" (320.00mm) | - |
|

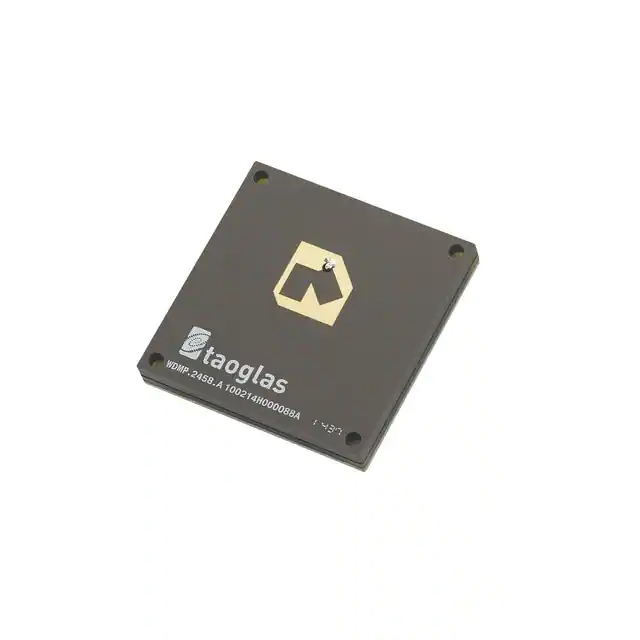

WDMP.2458.AWDMP.2458.A 2.4/5.8GHZ MECHANICA Taoglas Limited |
338 |
|
Datasheet |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -6dB, -7dB | 5.5dBi, 7.3dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.278" (7.07mm) | Wi-Fi |
|

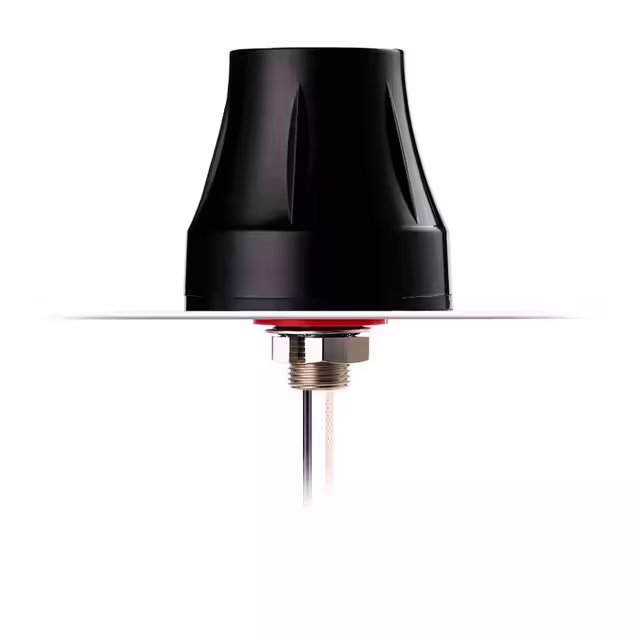

MA140.A.LB.001RF ANT 829MHZ/1.575GHZ DOME 1M Taoglas Limited |
262 |
|
Datasheet |
Olympian | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 2.1GHz, 2.65GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.8GHz | Dome | 5 | 3, 1.5, 1.5, 3, 3 | - | 1.58dBi, 2dBic 2.7dBi, 1.11dBi | 5 W | Cable - 1m, LNA, Filter | SMA Male (2) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 2G, 3G, 4G, GLONASS, GPS, LTE |
|

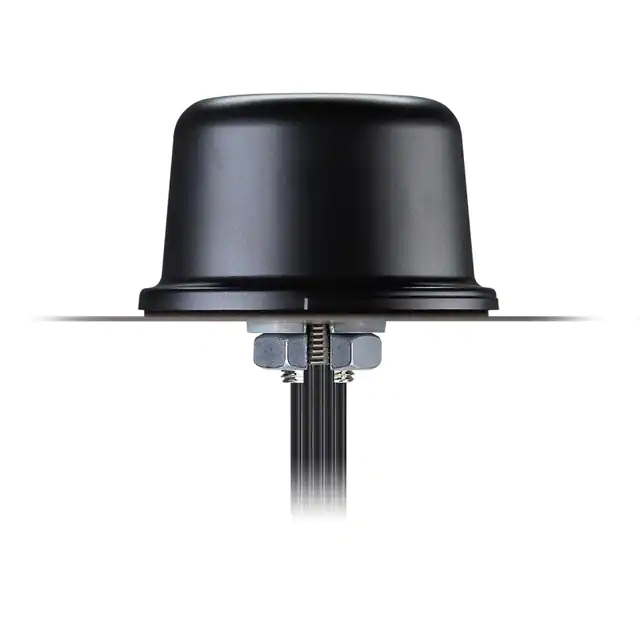

MA850.A.LBICG.001RF ANT 829MHZ/1.94GHZ DOME SMA Taoglas Limited |
4,396 |
|
Datasheet |
- | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.59GHz, 5.38GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Dome | 4 | 3 | -10dB | 4.3dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 2.260" (57.40mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|

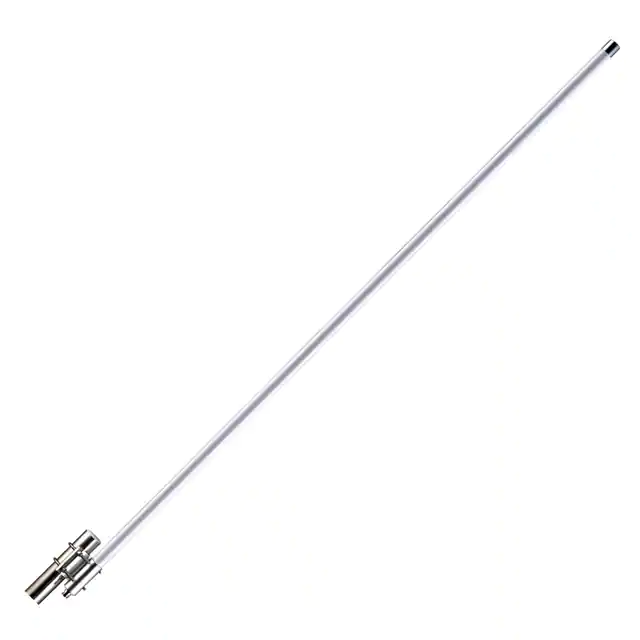

OMB.915.B03F21RF ANT 915MHZ WHIP STR N FEM Taoglas Limited |
252 |
|
Datasheet |
- | Tube | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 3.5dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 12.598" (320.00mm) | - |
|
MA173.A.LBI.001MONSOON PERMANENT MOUNT 3M GNSS Taoglas Limited |
151 |
|
Datasheet |
Monsoon | Bulk | Active | Cellular, General ISM, Navigation | Wide Band | 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 2.69GHz | Dome | 9 | - | -3dB, 10dB | -2.58dBi, -4.54dBi, -3.53dBi, 1dBic, -3.3dBi, -4.51dBi, -4.72dBi, -3.59dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS |
|
IMA.01.105111RF ANT 1.6GHZ DOME SMA MALE 1M Taoglas Limited |
111 |
|
Datasheet |
- | Box | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.621GHz ~ 1.626GHz | Dome | 1 | 2 | - | 4dBi | - | - | SMA Male | IP67 | - | - | Bracket Mount | 2.756" (70.00mm) | Iridium™ |
|

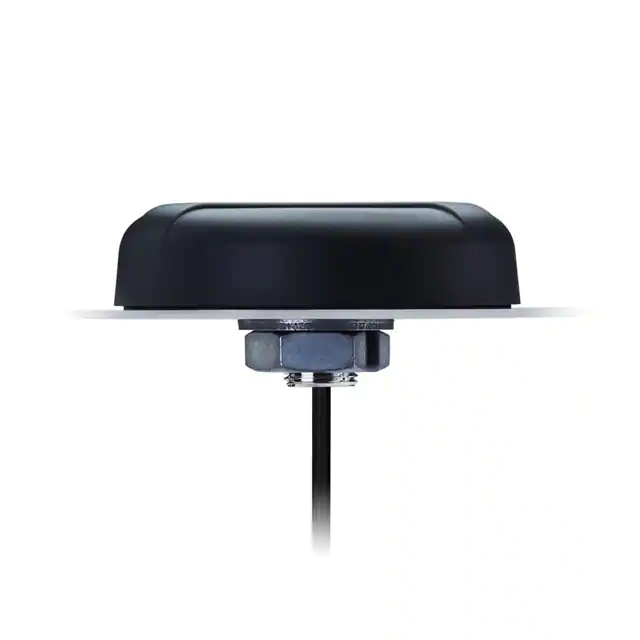

A.80.A.101111BOLT A.80 GPS L1 & L2 PERMANENT Taoglas Limited |
323 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | 1.572GHz ~ 1.578GHz | Dome | 2 | 2 | -10dB | 3.99dBi, 1.21dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 1.000" (25.40mm) | Beidou, Galileo, GLONASS, GPS |
|

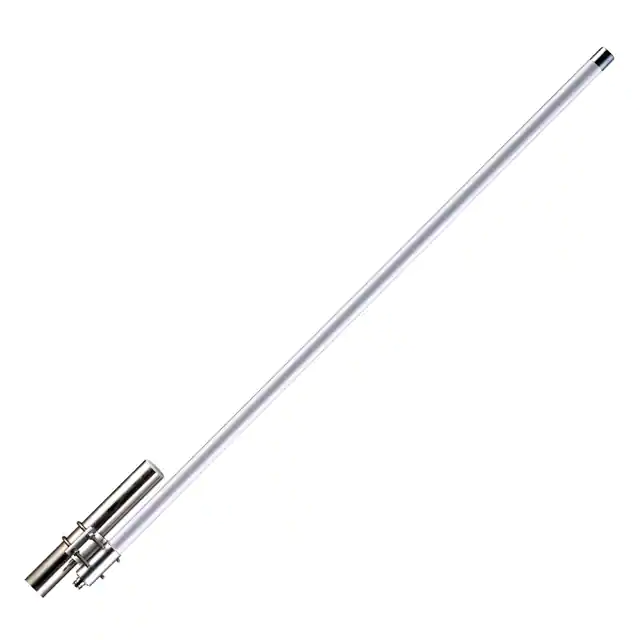

OMB.433.B06F21RF ANT 433MHZ WHIP STR N FEM Taoglas Limited |
3,516 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | - | N Type Female | IP65 | - | - | Bracket Mount | 43.071" (109.40cm) | ISM |
