RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCTHPDLTEMIMO-LTBANTENNA, TROOPER, DUAL LTE, DUAL Amphenol PCTEL |
1,013 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MFB1503VHF/UHF WHITE FIBERGLASS BASE Amphenol PCTEL |
1,591 |
|
Datasheet |
MFB | Tube | Active | - | VHF (f < 300MHz) | 153MHz | 150MHz ~ 156MHz | Whip, Straight | 1 | 1.5 | - | 3dBd | 250 W | - | N Type Male | - | - | - | Base Mount | 129.016" (327.70cm) | - |
|
|
MFB1563VHF/UHF WHITE FIBERGLASS BASE Amphenol PCTEL |
4,882 |
|
Datasheet |
MFB | Tube | Active | - | VHF (f < 300MHz) | 159MHz | 156MHz ~ 162MHz | Whip, Straight | 1 | 1.5 | - | 3dBd | 250 W | - | N Type Male | - | - | - | Base Mount | 129.016" (327.70cm) | - |
|
GLPSF-UH350-6X1RF ANT 377.5MHZ MODULE SMA STUD Amphenol PCTEL |
1,237 |
|
Datasheet |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 377.5MHz, 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 350MHz ~ 405MHz, 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GH | Module | 13 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.4, 3.5, 3.8, 4.9, 5.1, 6.7 | - | 2dBi, 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (3), SMA Male (1) | IP67 | - | - | Stud | - | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
GLPSF-UH6X1HBRF ANT 479MHZ MODULE SMA STUD Amphenol PCTEL |
4,284 |
|
Datasheet |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 479MHz, 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 446MHz ~ 512MHz, 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GH | Module | 13 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.5, 3.8, 4, 4.9, 5.1, 6.7 | - | 0.7dBi, 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (3), SMA Male (1) | IP67 | - | - | Stud | - | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
|
GLPSF-UH6X1LBRF ANT 413MHZ MODULE SMA STUD Amphenol PCTEL |
4,708 |
|
Datasheet |
Trooper™ Max | Box | Active | Cellular, Navigation, WiFi | Wide Band | 413MHz, 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.5835GHz, 1.955MHz, 2.0025GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 380MHz ~ 446MHz, 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GH | Module | 13 | 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 3.1, 3.3, 3.5, 3.8, 4.9, 5.1, 6.7 | - | 2.8dBi, 1.5dBi, 2.8dBi, 3.5dBi, 4.1dBi, 3dBic, 4.6dBi, 5.9dBi, 5.6dBi, 5.5dBi, 7.3dBi, 5.5dBi, 4.5dBi | 50 W | Cable - 304.8mm, LNA | SMA (3), SMA Male (1) | IP67 | - | - | Stud | - | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|

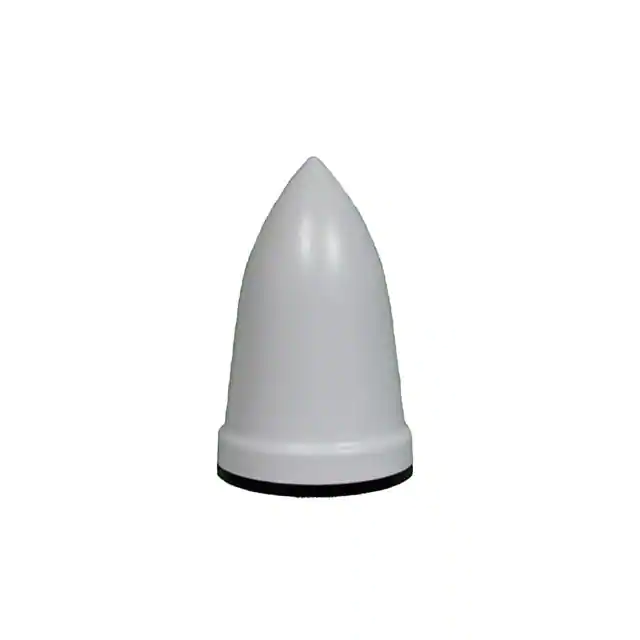

GPS-TMG-26NRF ANT 1.575GHZ DOME N TYP F POL Amphenol PCTEL |
1,049 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
|

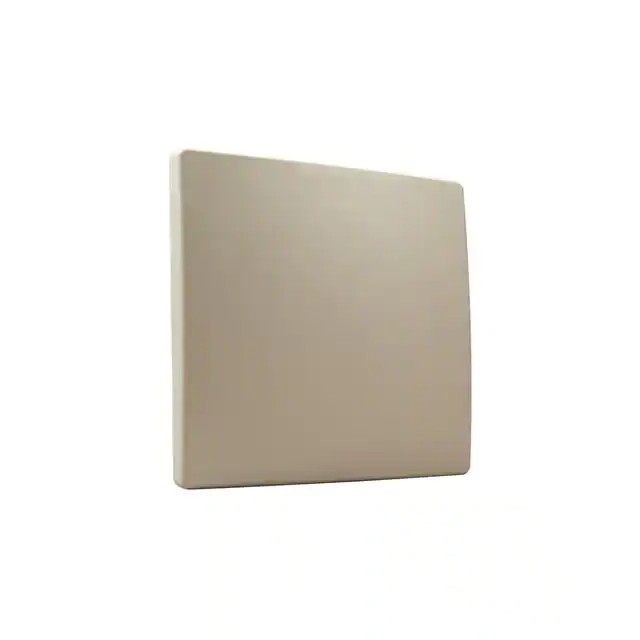

FP1800-15DPRF ANT 1.815GHZ PANEL N TYPE FEM Amphenol PCTEL |
1,996 |
|
Datasheet |
VenU® FP | Box | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.815GHz | 1.8GHz ~ 1.83GHz | Panel | 1 | - | - | 15dBi | 20 W | - | N Type Female (2) | - | - | - | Pole Mount, Wall Mount | 1.575" (40.00mm) | 2G, 3G, 5G, Cellular, LTE |
|
|
GPS-TMG-26NMSCLGPS ANTENNA, 26DB, N-FEMALE W/MO Amphenol PCTEL |
3,493 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Bracket Mount | 5.000" (127.00mm) | GPS |
|
|
GLHPDLTE-LTB-SANTENNA, SHORT TROOPER, GNSS, DU Amphenol PCTEL |
2,708 |
|
Datasheet |
Trooper™ | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz, 5.15GHz ~ 5.95GHz | Module | 10 | 2 | - | 4dBi, 5dBi, 5.5dBi, 3dBic, 6.5dBi, 8.8dBi, 9.4dBi, 6.8dBi, 9.4dBi, 10.1dBi | 50 W | Cable - 5.18m | SMA | IP67 | - | - | Connector Mount | 3.460" (87.88mm) | 5G, GLONASS, GNSS, GPS, LTE, Wi-Fi |
