RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPMI2458-VP6RPSMARF ANT 2.45GHZ PANEL RP-SMA MALE Amphenol PCTEL |
3,666 |
|
Datasheet |
VenU® FPMI2458-VP6RPSMA | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Panel | 2 | 2, 2.5 | - | 8.5dBi, 6dBi | 25 W | Cable - 690.6mm | RP-SMA Male | IP67 | - | - | Pole Mount, Wall Mount | 1.969" (50.00mm) | Bluetooth, Wi-Fi |
|

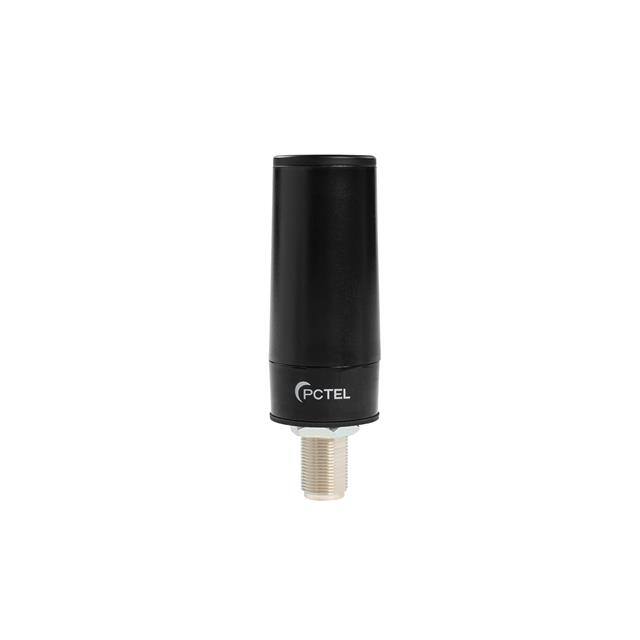

BMLPV5000-VPRF ANT 789MHZ DOME CONN MNT Amphenol PCTEL |
1,941 |
|
Datasheet |
BMLPV | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | Wide Band | 789MHz, 1.4725GHz, 1.94GHz, 2.5GHz, 3.75GHz, 4.7GHz, 5.4425GHz | 618MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 4.9GHz ~ 5.985GHz | Dome | 7 | 1.5, 2, 2.5, 3 | - | 2.6dBi, -0.2dBi, 1dBi, 1.6dBi, 2.3dBi, 1.2dBi, 3.1dBi | 150 W | - | - | IP67 | - | - | Connector Mount, NMO, Stud, Through Hole | 3.382" (85.90mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
BMUF9115RF ANT 918MHZ WHIP STR NMO MNT Amphenol PCTEL |
1,806 |
|
Datasheet |
MUF | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 918MHz | 896MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 125 W | - | - | - | - | - | NMO Mount | 32.000" (812.80mm) | Cellular, LTE |
|
GL7X1AX-SFRF ANT 657.5MHZ DOME SMA MALE Amphenol PCTEL |
2,381 |
|
Datasheet |
Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.4GHz, 2.545GHz, 3.6GHz, 5.4GHz, 5.95GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15G | Dome | 12 | 2 | - | -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 9.1dBi, 2.2dBi, 4.7dBi, 11.4dBi, 2.6dBi, 5.8dBi | 50 W | Cable - 5.18m | SMA Male (2), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 3.012" (76.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
|
710631RF ANT 2.4425GHZ BLAD RP-SMA ADH Amphenol PCTEL |
1,485 |
|
Datasheet |
MiniBlade | Box | Active | Cellular, WiFi | Wide Band | 2.4425GHz, 3.6GHz, 5.425GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.95GHz, 5.925GHz ~ 7.125GHz | Blade | 4 | 2, 3 | - | 3.8dBi, 5dBi, 7dBi, 5dBi | - | Cable - 500mm | RP-SMA | - | - | - | Adhesive | 0.260" (6.60mm) | 5G, CBRS, Wi-Fi 6E |
|
BMLPVMBLTENGPRF ANT 829MHZ/2.205GHZ DOME CONN Amphenol PCTEL |
3,994 |
|
Datasheet |
BMLPV | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2.5 | - | 3dBi, 3dBi | 150 W | - | - | IP66 | - | - | Connector Mount, NMO, Stud, Through Hole | 3.539" (89.90mm) | 2G, 3G, 5G, Bluetooth, Cellular, LTE, Wi-Fi |
|
|
BMWV1365SRF ANT 155MHZ WHIP STR BASE MNT Amphenol PCTEL |
3,040 |
|
Datasheet |
MWU | Bag | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 1dBi | 160 W | - | - | - | - | - | Base Mount | 20.000" (508.00mm) | - |
|
PCTHPDLTE-LTBRF ANT 657.5MHZ MODULE SMA STUD Amphenol PCTEL |
1,325 |
|
Datasheet |
PCTH | Box | Active | Cellular | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Module | 7 | 1.4, 1.5, 1.6, 1.8, 2.2 | - | 4dBi, 5dBi, 5.5dBi, 6.5dBi, 8.8dBi, 6.8dBi, 10.1dBi | 50 W | Cable - 5.1816m | SMA | IP67 | - | - | Stud, Through Hole | 3.465" (88.00mm) | 2G, 3G, 5G, Cellular, LTE |
|
710399RF ANT 739MHZ BLADE SMA MALE ADH Amphenol PCTEL |
2,887 |
|
Datasheet |
SmartBlade | Box | Active | Cellular | Wide Band | 739MHz, 875MHz, 1.4685GHz, 1.94GHz, 2.445GHz, 3.6GHz | 698MHz ~ 780MHz, 790MHz ~ 960MHz, 1.427GHz ~ 1.51GHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Blade | 6 | 2, 2.2, 3 | - | 1.5dBi, 2.5dBi, 3dBi, 4.5dBi, 5.5dBi, 2.5dBi | 10 W | Cable - 500mm | SMA Male | IP65 | - | - | Adhesive | 0.173" (4.40mm) | 2G, 3G, 4G, 5G, LTE |
|

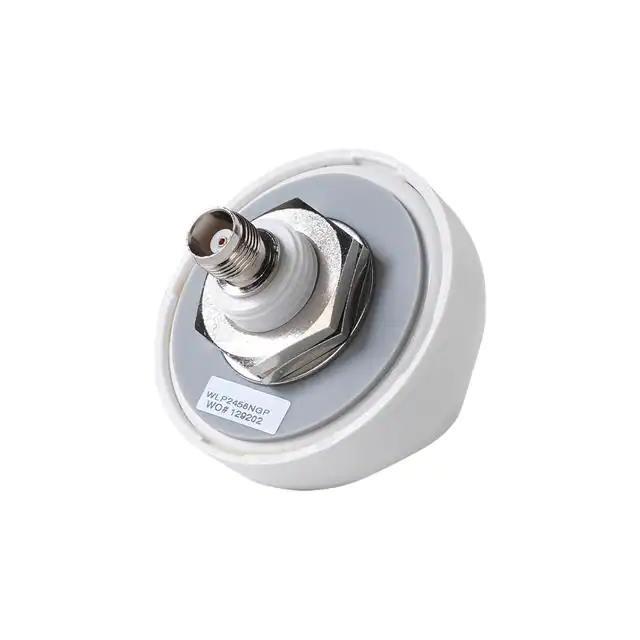

WLP2458NGPRF ANT 2.45GHZ DOME TNC M BRKT Amphenol PCTEL |
4,039 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Dome | 2 | 2 | - | 3dBi, 3.5dBi | 10 W | - | TNC Male | IP67 | - | - | Bracket Mount, Through Hole | 1.732" (44.00mm) | Bluetooth, Wi-Fi |
