Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFS-1A-05RELAY REED SPST .5A 5V Comus International |
2,455 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFS-1A-12RELAY REED SPST .5A 12V Comus International |
3,095 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFM-1A-05RELAY REED SPST .5A 5V Comus International |
4,921 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-12RELAY REED SPST .5A 12V Comus International |
3,731 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-12ERELAY REED SPST .5A 12V Comus International |
2,671 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-05CRELAY REED SPST .5A 5V Comus International |
3,058 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFH-2A-05RELAY REED DPST .5A 5V Comus International |
4,104 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH 2A-12RELAY REED DPST .5A 12V Comus International |
2,229 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|

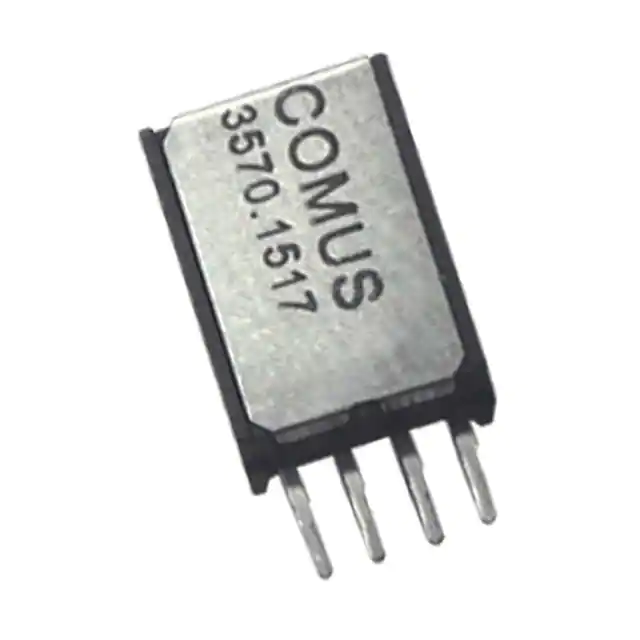

3570-1517-051RELAY REED SIP SPST .5A 5V Comus International |
1,899 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VDC - Max | 12.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.2 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
BFH-2A-05ERELAY REED DPST .5A 5V Comus International |
2,635 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
