Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

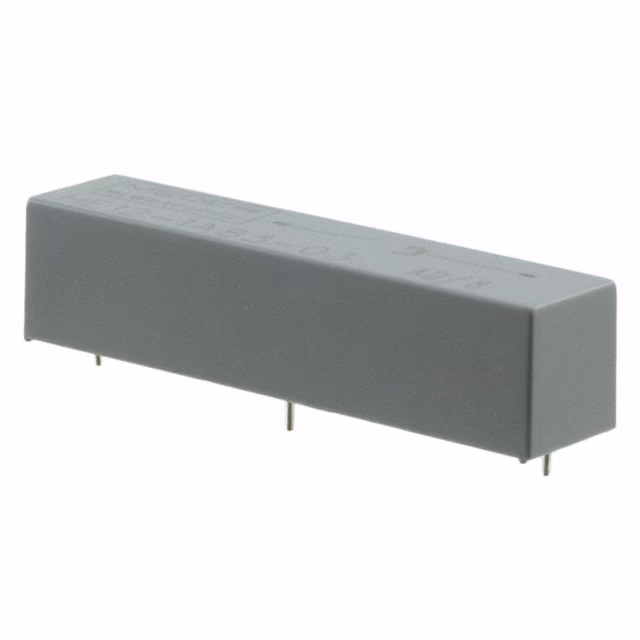

HE12-1A83-03RELAY REED SPST 3A 12V Standex-Meder Electronics |
1,087 |
|
Datasheet |
HE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
DIP05-2A72-21LRELAY REED DPST 1A 5V Standex-Meder Electronics |
3,711 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MHV05-1AMINIATURE HIGH VOLTAGE REED RELA Standex-Meder Electronics |
1,129 |
|
Datasheet |
MH | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 700 mA | 1000VDC - Max | 35.7 mA | Non Latching | - | Gull Wing | - | - | - | - | - | -40°C ~ 105°C | - |
|
SHV05-1A85-78L4KRELAY REED SPST 1A 5V Standex-Meder Electronics |
3,048 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|
SIL24-1A72-71DRELAY REED SPST 0.5A 24V Standex-Meder Electronics |
3,477 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MS05-1A87-75DHRRELAY REED SPST 500MA 5V Standex-Meder Electronics |
3,225 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
UMS05-1A80-75LRELAY REED SPST 500MA 5V Standex-Meder Electronics |
4,696 |
|
Datasheet |
UMS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
SHV24-1A85-78L4KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
4,938 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
DIP05-1A72-11LRELAY REED SPST 1A 5V Standex-Meder Electronics |
4,760 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-2A72-21DRELAY REED DPST 1A 24V Standex-Meder Electronics |
1,095 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
