OR Controllers, Ideal Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | FET Type | Ratio - Input:Output | Internal Switch(s) | Delay Time - ON | Delay Time - OFF | Current - Output (Max) | Current - Supply | Voltage - Supply | Applications | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

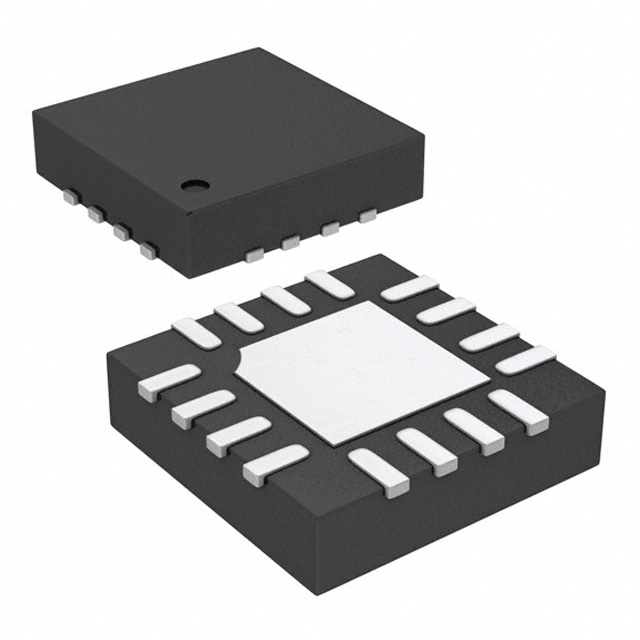

LT4321HUF#PBFIC OR CTRLR BRIDGE RECT 16QFN |
1,918 |
|
Datasheet |
- | 16-WQFN Exposed Pad | Tube | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 125°C | - | - | Surface Mount | 16-QFN (4x4) |
|
LTC4357CDCB#TRMPBFIC OR CTRLR N+1 6DFN |
5,003 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C | Automotive | - | Surface Mount | 6-DFN (2x3) |
|
LTC4357CMS8#TRPBFIC OR CTRLR N+1 8MSOP |
4,225 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C | Automotive | - | Surface Mount | 8-MSOP |
|
|
LTC4357CMS8#PBFIC OR CTRLR N+1 8MSOP |
3,803 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C | Automotive | - | Surface Mount | 8-MSOP |
|
FDMQ8205IC OR CTRLR BRIDGE RECT 12MLP |
4,025 |
|
Datasheet |
GreenBridge™ | 12-WDFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N and P-Channel | Bridge (2) | Yes | - | - | - | 400 µA | 57V (Max) | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 12-MLP (5x4.5) |
|
LTC4416EMS-1#PBFIC OR CTRLR SRC SELECT 10MSOP |
10,375 |
|
Datasheet |
PowerPath™ | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Source Selector Switch | P-Channel | 2:2 | No | 60 µs | 30 µs | - | 130 µA | 3.6V ~ 36V | Battery Backup, Industrial/Automotive, High Current Switch | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|
LTC4411ES5#TRMPBFIC OR CTRLR SRC SELECT TSOT23-5 |
5,171 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 1:1 | Yes | - | - | 2.6A | 40 µA | 2.6V ~ 5.5V | Handheld/Mobile Devices | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
LTC4414EMS8#TRPBFIC OR CTRLR SRC SELECT 8MSOP |
3,740 |
|
Datasheet |
PowerPath™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 600 µs | 20 µs | - | 31 µA | 3V ~ 36V | Battery Backup, Industrial/Automotive, High Current Switch | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
LTC4414EMS8#PBFIC OR CTRLR SRC SELECT 8MSOP |
2,971 |
|
Datasheet |
PowerPath™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Source Selector Switch | P-Channel | 2:1 | No | 600 µs | 20 µs | - | 33 µA | 3V ~ 36V | Battery Backup, Industrial/Automotive, High Current Switch | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
LTC4412HVIS6#TRMPBFIC OR CTRLR SRC SELECT TSOT23-6 |
3,972 |
|
Datasheet |
PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 18 µA | 2.5V ~ 36V | Handheld, USB Powered Supplies | -40°C ~ 125°C | Automotive | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412HVIS6#TRPBFIC OR CTRLR SRC SELECT TSOT23-6 |
3,224 |
|
Datasheet |
PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 18 µA | 2.5V ~ 36V | Handheld, USB Powered Supplies | -40°C ~ 125°C | Automotive | - | Surface Mount | TSOT-23-6 |
|
|
LTC4357IMS8#PBFIC OR CTRLR N+1 8MSOP |
18,723 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 85°C | Automotive | - | Surface Mount | 8-MSOP |
|
|
LTC4357IDCB#TRMPBFIC OR CTRLR N+1 6DFN |
17,474 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 85°C | Automotive | - | Surface Mount | 6-DFN (2x3) |
|
|
LTC4357IMS8#TRPBFIC OR CTRLR N+1 8MSOP |
6,725 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 85°C | Automotive | - | Surface Mount | 8-MSOP |
|
MAX16141AAF/V+T36V ORING MOSFET CONTRLR W/VOLT |
306 |
|
Datasheet |
- | 16-WQFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 70 µs | - | - | 2.1 mA | 3.5V ~ 36V | Power Over Ethernet (PoE) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 16-TQFN (4x4) |
|
|
LTC4359CDCB#TRMPBFIC OR CTRLR N+1 6DFN |
1,883 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | 200 µs | 300 ns | 220µA | 150 µA | 4V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C (TA) | - | - | Surface Mount | 6-DFN (2x3) |
|
|
LTC4359CMS8#TRPBFIC OR CTRLR N+1 8MSOP |
8,156 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | 200 µs | 300 ns | 220µA | 150 µA | 4V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
LTC4359CMS8#PBFIC OR CTRLR N+1 8MSOP |
1,076 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | N+1 ORing Controller | N-Channel | N:1 | No | 200 µs | 300 ns | 220µA | 150 µA | 4V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
LTC4358CDE#PBFIC OR CTRLR N+1 14DFN |
775 |
|
Datasheet |
- | 14-WFDFN Exposed Pad | Tube | Active | N+1 ORing Controller | N-Channel | N:1 | Yes | 200 µs | 300 ns | 5A | 600 µA | 9V ~ 26.5V | N+1 Power Supplies, High Availability | 0°C ~ 70°C | - | - | Surface Mount | 14-DFN (4x3) |
|
LTC4372CDD#TRPBFLOW ICC IDEAL DIODE CONTROLLER W |
3,068 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 500 µs | 500 ns | 10µA | 5 µA | 2.5V ~ 80V | Redundant Power Supplies | 0°C ~ 70°C (TA) | Automotive | - | Surface Mount | 8-DFN (3x3) |
