Fittings, Couplings, and Distributors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Connection Method | For Use With/Related Products | Features | Operating Pressure | Operating Temperature | Thread Size | Mounting Type | Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QSM-M5-4PUSH-IN FITTING |
187 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSM-M5-6PUSH-IN FITTING |
130 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSM-M6-6PUSH-IN FITTING |
192 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M6 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-G1/8-8-IPUSH-IN FITTING |
108 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSM-6PUSH-IN CONNECTOR |
1,122 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-6-4PUSH-IN CONNECTOR |
154 |
|
Datasheet |
QS | Bulk | Active | Adapter | Push-In | 6mm and 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-6PUSH-IN CONNECTOR |
137 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSML-M5-6PUSH-IN L-FITTING |
483 |
|
Datasheet |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | M5 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

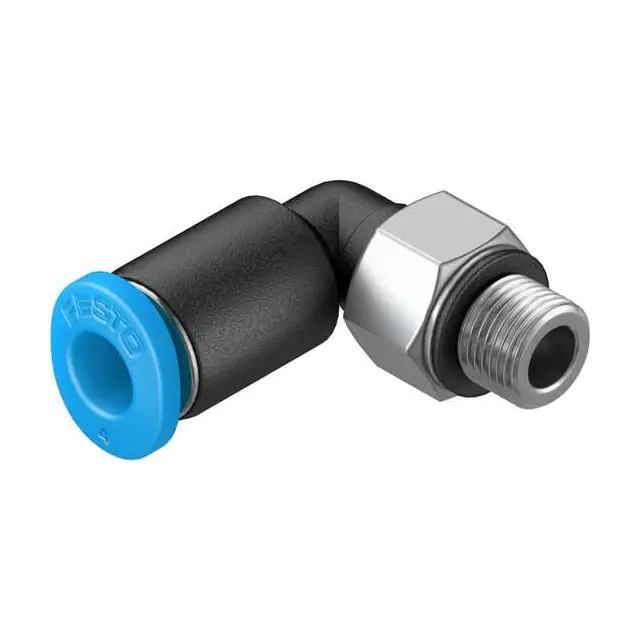

QSML-M5-4PUSH-IN L-FITTING |
378 |
|
Datasheet |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | M5 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSL-G1/8-6PUSH-IN L-FITTING |
115 |
|
Datasheet |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

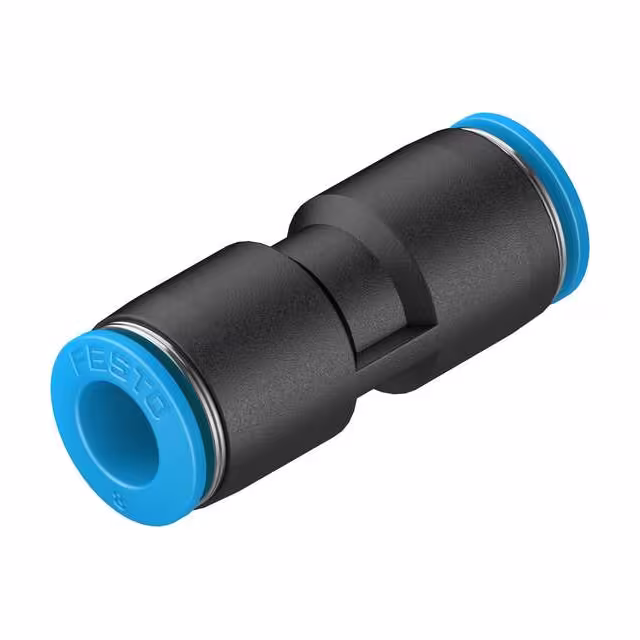

QS-8PUSH-IN CONNECTOR |
237 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

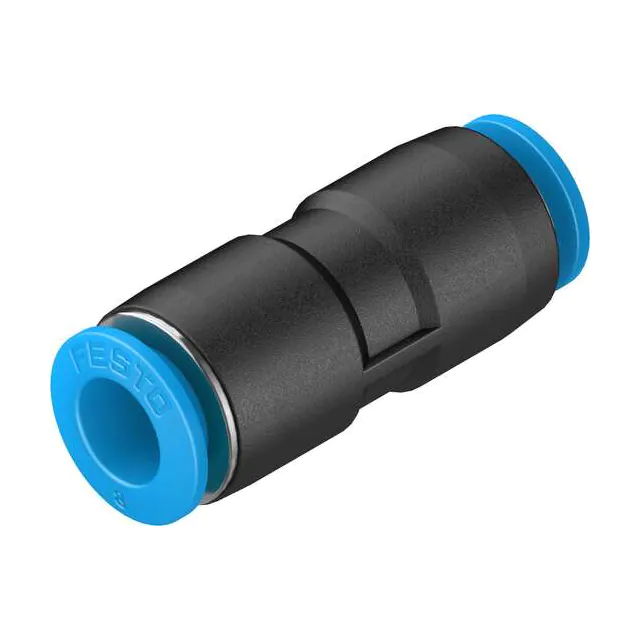

QS-8-6PUSH-IN CONNECTOR |
135 |
|
Datasheet |
QS | Bulk | Active | Adapter | Push-In | 8mm and 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-G1/4-10-IPUSH-IN FITTING |
110 |
|
Datasheet |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSL-1/8-4PUSH-IN L-FITTING |
280 |
|
Datasheet |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
NPQH-D-G18-Q6-P10PUSH-IN FITTING |
271 |
|
Datasheet |
NPQH | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 290 PSI (-1 ~ 20 bar) | 0°C ~ 150°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QBL-3/8-1/2-UPUSH-IN L-FITTING |
129 |
|
Datasheet |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 1/2" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

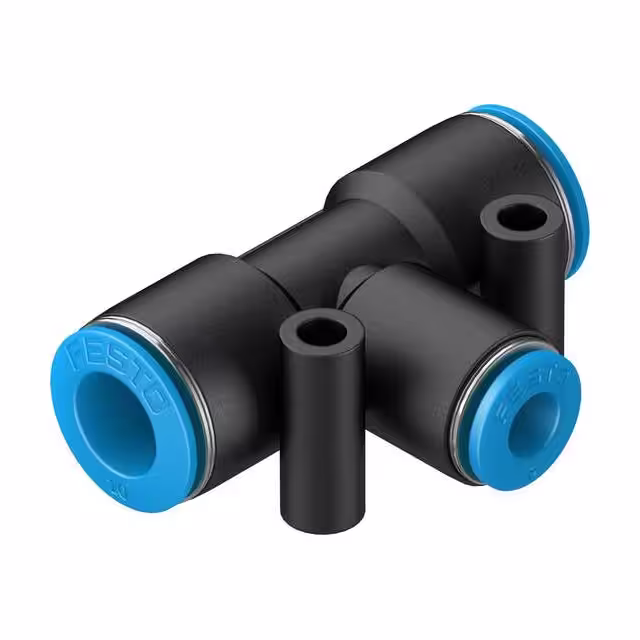

QST-10-6PUSH-IN T-CONNECTOR |
131 |
|
Datasheet |
QS | Bulk | Active | T-Fitting | Push-In | 10mm and 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QSYL-1/4-10PUSH-IN Y-FITTING |
122 |
|
Datasheet |
QS | Bulk | Active | Y-Fitting, Right Angle | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
ZUSA-TF-PTC-361Push to Connect Tube Fitting - N |
305 |
|
- |
- | Bulk | Active | Elbow Fitting | Push-In | 1/4" OD Tubing | - | 145 PSI (10 bar) | - | - | Free Hanging (In-Line) | Polyamide (PA) | Black |
|
|
ZUSA-PF-155Pipe Fitting - 304 Stainless Ste |
151 |
|
- |
- | Bulk | Active | Locknut | Threaded | - | - | 150 PSI (10 bar) | - | NPSL 1/8 | - | Stainless Steel | - |
